OPPO Reno5 Pro 5G(CPH2201)Parameter List

Views: 0Likes: 0


1. Basic information

Product name  OPPO Reno5 Pro 5G
Phone model Model: CPH2201
Name: OPPO Reno5 Pro 5G
Launch date 2021/1/22

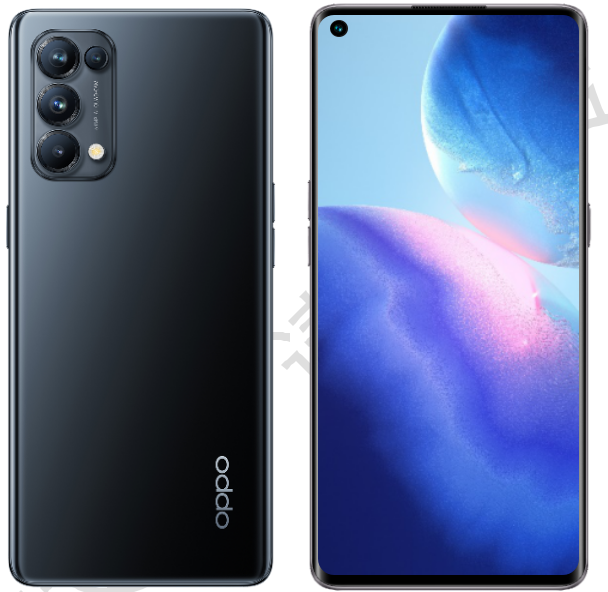

2. Appearance

Dimensions 159.7 mm x 73.2 mm x 7.6 mm
*Note: Phone dimensions may vary slightly depending on the product configurations, manufacturing process, and measurement method.
Weight About 173 g
*Note: Phone weight may vary slightly depending on the product configurations, manufacturing process, and measurement method.
Body color Starry Black
Astral Blue
Galactic Silver

3. Material and process

Material of top motherboard case (screen facing up) Plastic: PC+20%GF
Metal: TA02
Material of bottom motherboard case Vacuum plating
Material of battery cover Black: Gorilla Glass 3
Blue: Panda Glass
Battery cover process Black: Gorilla Glass 3 with glossy effect
Blue: Panda Glass with shimmering sand effect
Protection film on battery cover No
Oleophobic coating on battery cover Yes

4. SoC

CPU frequency 8 cores with a maximum frequency of 2.6 GHz (4 big cores +4 little cores)
GPU model ARM G77 MC9 836 MHz
CPU architecture 4×A77 2.6 GHz, 256 KB L2
4×A55 2.0 GHz, 128 KB L2
2 MB L3
Memory frequency 1866MHz
CPU model 4 ARM Cortex-A77
4 ARM Cortex-A55
Processing platform (public name) MT6889
CPU manufacturing process TSMC 7 nm
GPU manufacturing process 7 nm
AI capabilities APU 3.0
3x VPU + 2x AIA
Total 4.5 TOPS
CPU cores 8 cores
Processor bits 64-bit

5. Screen

Size Metric: 16.64 cm
Imperial: 6.55"
Top bezel 2.25 mm
Bottom bezel 3.15 mm
Left and right bezels 1.65 mm
Screen-to-body ratio 92.10%
Color saturation Typical value 97%
Colors 16.7 million colors, 8-bit
Aspect ratio 20:9
Curvature: 55.9°
Material of display panel Soft AMOLED
Supplier Samsung
Resolution 2400 x 1080 (FHD+)
Color gamut 97% NTSC/100% DCI-P3
Pixels per inch (PPI) 402 PPI
Contrast ratio Static: 5000000:1
Brightness Typical value:500nits;up to 800nits in sunlight ; up to 1100nits for HDR photo and HDR10+ content display
Material of touch screen Glass
Refresh rate 60/90Hz
Lamination method of touch screen On-Cell
Touch points 10
Touch sampling rate 180Hz
Screen protector type TPU film
Oleophobic coating on screen Yes
Oleophobic coating on film from manufacturer Yes
TÜV Rheinland eye comfort certification No
Night mode Supported
Eye comfort Supported
Low-brightness flicker-free eye comfort Not supported
HDR display Supported
Touch screen type Capacitive

6. Storage

RAM and ROM capacities 8GB + 128GB
RAM specifications LPDDR4x @ 1866MHz  4x16bit
ROM specification UFS 2.1 @ 2-lane HS-Gear3
Phone storage card Not supported
Supported SD card formats None
Move apps to SD card Not supported
OTG data transmission Supported (Reverse charging supported)
OTG storage format FAT32, NTFS, exFAT
Maximum OTG storage supported 2 TB
Number of RAM channels 4

7. Front camera

Equivalent focal length 25 mm
Effective focal length 3.77 mm
Camera specifications Front camera: 32 MP (f/2.4); FOV 81°; lens: 5P, FF
Sensor specifications Sony IMX615 32 MP, 4:3, 1/2.74', 0.8㎛
Focus mode Fixed focus
Shooting mode Photo, Video, Panoramic, Portrait, Night, Time-lapse, Sticker,Dual-view video
Photo details Front camera: IMX615
Device name:  OPPO Reno5 Pro 5G
Focal length: 3.77 mm
Aperture: f/2.4
Front camera photo size Default
4:3: 4896*6528
1:1: 4896*4896
Full frame: 2944*6528
16:9: 3680*6528
Image format JPG
Video taking 1080P@30fps (default) or 720P@30fps
Video format Video format: MP4
Video coding format: H.265 (high efficiency) and H.264 (default format, high compatibility)
Optical zoom Not supported
Electronic image stabilization Supported
Soft light None
Camera structure Punch hole
Shooting method Press the Volume button, tap the virtual button on the screen, or use gestures to take photos.
Sensor type CMOS (front camera: 4-in-1)
Material of protection glass Glass
Front camera 32 MP

8. Rear camera

Sensor specifications Main camera:
OV OV64B, 64M, 1/2", 0.7 um, 4:3

Ultra-wide angle camera:
Sony IMX319, 8M, 1/3.13", 1.4 um, 4:3

Macro camera:
OV OV02B10, 2M, 1/5", 1.75 um, 4:3

Mono camera:
GC GC02M1B 2M, 1/5", 1.75 um, 4:3
Camera specifications Main camera: f/1.7; FOV 81°; 6P lens; AF supported; closed-loop focus motor
Ultra-wide angle camera: f/2.2; FOV 115°; 5P lens; FF

Macro camera: f/2.4; FOV 89°; 3P lens; FF

Mono camera: f/2.4; FOV 89°; 3P lens; FF
Effective focal length Main camera: 4.73 mm
Ultra-wide angle camera: 2.13 mm
Macro camera: 1.77 mm
Mono  camera: 1.77 mm
Equivalent focal length Main camera: 25 mm
Ultra-wide angle camera: 16 mm
Macro camera: 22 mm
Mono  camera: 22 mm
Optical zoom Not supported
Electronic image stabilization Supported
Optical image stabilization Not supported
Focus mode Main camera: Contrast detection autofocus + Phase detection autofocus
Ultra-wide angle camera: Fixed focus
Shooting mode Photo, Video, Night, Expert, Panoramic, Portrait, Time-lapse, Slow-motion, Text scanner, Dual-view video,and Sticker
Image format JPG
Video taking 4K@30fps, 1080P@60fps/30fps, and 720P@60fps/30fps
Video format Video format: MP4
Video coding format: H.265 (high efficiency) and H.264 (default format, high compatibility)
Flash light One rear LED light, single color temperature
Shooting method Press the Volume button, touch the screen, or tap the virtual button on the screen to take photos.
Smart scenario recognition Supported
Sensor type Main camera: CMOS(4-in-1); Ultra-wide angle camera: CMOS; Macro camera: CMOS; Mono camera: CMOS
Material of protection glass Corning Gorilla Glass 5
Camera location sequence (rear)  (Top to bottom, left to right) Ultra-wide angle camera 8 MP + Main camera 64 MP + Macro camera 2 MP + Mono camera 2 MP
Zoom mode 20x digital zoom
Number of burst photos 20 photos
Photo editing options Crop & rotate, Adjust, Filter, Markup, Text, Mosaic, Beautify, Sticker, Eraser, Blur
Photo details Main camera:
Device name:  OPPO Reno5 Pro 5G
Focal length: 4.73 mm
Aperture: f/1.7

Ultra-wide angle camera:
Device name:  OPPO Reno5 Pro 5G
Focal length: 2.13 mm
Aperture: f/2.2

Macro camera:
Device name:  OPPO Reno5 Pro 5G
Focal length: 1.77mm
Aperture: f/2.4

Mono camera:
Device name:  OPPO Reno5 Pro 5G
Focal length: 1.77mm
Aperture: f/2.4
Image size Maximum size: 6936x9248 (64 MP)
Normal photo mode:
3468 x 4624 (4:3)
3468 x 3468 (1:1)
2080 x 4624 (full screen)
2608 x 4624 (16:9)
Fill light for shooting videos Supported

9. OS – Version info and apps

Android version Android 11
ColorOS version ColorOS 11.1
OPPO apps Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Photos, Phone Manager, Weather, HeyTap Cloud, Calculator, OPPO Relax, Recorder, Screen Lock, Compass, Soloop, Videos, Game Space, Music Party, and ORoaming
Pre-installed third-party apps (For the latest app list, refer to MO > Internet Services > 研发与测试 > ProjectThreePartyApp)
In common: Google Mobile Services, Google File, Facebook, Netflix, WPS Office
India: Amazon Shopping, Flipkart
Apps that can be uninstalled In common: Google Mobile Services, Google File, Facebook, FB Installer, FB Manager, FBNS, WPS Office
India: Amazon Shopping, Flipkart, Weather, Calculator, OPPO Relax, Recorder, Screen Lock, Compass, Soloop, Videos, Game Space, Music Party, and ORoaming.
Apps that cannot be uninstalled Netflix, Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Photos, Phone Manager, and HeyTap Cloud
Pre-installed apps OPPO apps + Pre-installed third-party apps

10. OS – Call

Dual card single/dual pass Dual-card single pass
Voice call solution VoLTE if VoLTE is enabled, and CSFB, SVLTE, or SRLTE if VoLTE is not enabled
Maximum number of call logs 3000
Video call  Supported
Answering phone calls using earphones Supported
Call recording Supported
Call record format awb
Save to File Manager - Phone storage - Music - Recordings - Call recordings
Automatic call recording Supported
Quick dial Supported

11. OS – Contact

Caller profile picture Supported
Caller background Supported
Import/Export SIM card contacts Supported
Maximum number of saved contacts Depends on size of mobile phone storage space
Maximum number of blocklisted contacts Depends on size of mobile phone storage space
Contact file format Export: VCF
Import: VCF, vCard, CSV
Contacts grouping Supported
Customized grouping Supported

12. OS – Messages

Maximum number of recipients for group SMS messages 200
Maximum number of blocklisted SMS contacts Depends on size of mobile phone storage space
SMS capacity Depends on size of mobile phone storage space
Maximum number of words for a short message 1530 English characters (Chinese, for encoding reasons, will be less than 1530); SMS exceeding the limit will be automatically converted to MMS.
Capacity for one MMS message 300 KB
Timed messages Not supported
Messages import and export Supported
Number of MMS saved Depends on size of mobile phone storage space

13. OS function

Pre-installed browser Google browser
Image editing function Filter, auto enhance, crop and rotate, sticker, doodle, beautify, text, mosaic, bokeh, eraser
Pre-loaded images None
Pre-loaded music None
Firewall/Block & filter Calls and SMS messages can be blocked.
Data backup and restore Supported
File compression and extraction Supported
Private Safe (file lock) Supported
App lock Supported
Resetting password using fingerprint Not supported
App lock method Pattern, digit password, letter-and-digit password, fingerprint, and face
MHL HD output Not supported
Split screen mode Supported
Picture-in-picture (PIP) Supported
Playing videos in floating window (mini window mode) Supported
Webpage video playback Supported
Google Lens Supported
Email  Supported
Reader Supported
Office tools Supported: The WPS File Viewer is pre-installed in the phone, and third-party office tools can be installed.
Weather widget Weather widget is not supported (weather info is included in the Clock widget).
Clock widget Supported
Music widget Not supported
Third-party app widget Supported
Pre-installed radio Not supported
Gestures & motions Screen-off gestures, smart call, raise to wake, and 3-finger screenshot
Incoming call banner Supported
Ending calls with Power button Supported
Kid Space (Guest mode) Not supported
Third-party input method Supported
High-definition format Supported
Format of audio recordings Call recording: awb
Other recordings: MP3
Ringtone format MP3
World clock Supported
Screencast through HDMI Hardware not supported
Flashlight Supported
Always-On Display Supported
Hall effect sensor/Small window mode Not supported
Screen recording Supported
Compass Supported
App cloner Supported
OPPO Share Supported
OSIE visual effect Supported
Data saving (freezing third-party apps running in background) Supported
Game voice changer Not supported
Game acceleration (Mainstream apps) PUBG, Arena of Valor
Game Space Supported
OPPO Share (for Indian market) Supported
File system Flash-friendly file system (F2FS)
Game support Arena of Valor:
Image quality: Ultra HD
Resolution: Ultra-high resolution
High frame rate mode: Supported

PUGB:
Image quality: Smooth
Frame rate: Extreme

Best moments for Arena of Valor: Not supported; Screen recording during gaming: Not supported.
Step counting Supported
Dual Wi-Fi Not supported
Breathing light None
Recently deleted (Album recycle bin) Supported
Flash support Not supported

14. Local file

Video format AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV, etc.
Audio format MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA, etc.
Supported document formats (for document viewing) txt/pdf/word/excel/ppt
Image format JPEG/PNG/GIF/BMP

15. OPPO Wallet

Bank cards Not supported
Transit card Not supported
eID Not supported
Access card Not supported

16. Wireless connection

NFC Not supported
Wi-Fi function (Antenna) Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11a/b/g/n/;
Wi-Fi 2.4G/5.1G/5.8G;
Wi-Fi Display and Wi-Fi tethering;
2×2 MIMO and MU-MIMO
Wi-Fi protocol 802.11 a/b/g/n/ac/ax
Maximum data rate (theoretical) Wi-Fi (5G): 1.2G
Wi-Fi (2.4G): 286M
Wi-Fi display Supported
Personal hotspot/Wi-Fi hotspot Supported
Maximum number of devices that can be connected to hotspot 10
Bluetooth version Bluetooth 5.1; low consumption Bluetooth;
Bluetooth audio specifications SBC, AAC, aptX, aptX HD, LDAC
Supported Bluetooth protocols HFP, HSP, A2DP, AVRCP, HID, PAN, OPP, MAP, PBAP, GATT
Wi-Fi antenna 2x2 MIMO; 2.4G/5G dual band Wi-Fi
Wi-Fi frequency 2.4 GHz, 5.1 GHz, 5.5 GHz, 5.8 GHz
FM radio Not supported
Share network via Bluetooth Supported

17. Mobile Network

LTE antennas Band 1/3/7/38/40/41: 4×4 MIMO; Other bands: 2×2 MIMO
LTE radio frequency 4 x 4 MIMO antennas  HO RxD
VoLTE Supported
5G (dual mode/single mode) SA/NSA dual mode
Network mode GSM, WCDMA, TD-LTE, LTE FDD, NR
Data service GSM, EDGE, HSPA+, WCDMA, TD-LTE, LTE FDD, NR
Dual SIM Dual-card
Frequency band (SIM cards 1 and 2) SIM card 1
2G: GSM 850/900/1800/1900 MHz
3G: UMTS(WCDMA) bands 1/2/4/5/6/8/19
4G: TD-LTE bands 38/39/40/41 (194 MHz)
4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66
5G:  N78/41/1/3/7/28/N77/78/38/40/41/1/3/7/28

SIM card 2
2G: GSM 850/900/1800/1900 MHz
3G: UMTS(WCDMA) bands 1/2/4/5/6/8/19
4G: TD-LTE bands 38/39/40/41 (194 MHz)
4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66
5G network Supported
4G+ network Supported
4G network 4G: TD-LTE bands 38/39/40/41 (194 MHz)
4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66
3G network 3G: UMTS(WCDMA) bands 1/2/4/5/6/8/19
2G network 2G: GSM 850/900/1800/1900 MHz
Frequency bands supported GSM:
850/900/1800/1900MHz
WCDMA:
B1/B2/B4/B5/B6/B8/B19
FDD-LTE:  B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/B26/B28/B66
TD-LTE:
B38/B39/B40/B41
5G NR: N77/N78/N38/N40/N41/N1/N3/N7/N28 BlockA&BlockB
5G data rate 5G SA uplink: 625 Mbps
5G SA downlink: 2.34 Gbps
5G NSA uplink: 700 Mbps
5G NSA downlink: 3.54 Gbps
4G data rate Uplink: 150 Mbps
Downlink: 1200 Mbps
Link boost High-speed rail mode, elevator mode, SLA dual channel network acceleration

18. SIM Card

SIM card type and size Nano-SIM card/Nano-USIM card
SIM card tray type and material 2-slot plastic SIM card tray

19. Buttons and ports

Audio jack Type-C
Data port USB Type C
Transfer protocol (USB) USB 2.0
Pin (USB) 16
Navigation button No physical navigation buttons. Supports on-screen virtual navigation buttons and navigation gestures.

20. Positioning

Satellite positioning BeiDou Navigation Satellite System, GPS, GLONASS, Galileo positioning systems, Quasi-Zenith Satellite System (QZSS), and A-GPS
Dual-frequency dual-antenna positioning Not supported
Other positioning methods AGPS, WLAN, mobile network, and electronic compass
Map apps Google Map and other third-party map apps
Dual-frequency GPS Not supported

21. Fingerprint & face recognition

Fingerprint unlock time When the screen is on: 279 ms
When the screen is off: 398 ms
Face unlock time When the screen is on: 457 ms
When the screen is off: 548 ms
Fingerprint In-display fingerprint sensor
Fingerprint payment Supports WeChat Pay and Alipay
Face recognition Supported
Face recognition payment Not supported

22. Sensors

Sensor type Geomagnetic sensor, proximity sensor, optical sensor, accelerometer, gravity sensor, gyroscope, pedometer
Infrared blaster Not supported

23. Battery & charging

Battery capacity 2125mAh/16.44Wh (Rated)
2175mAh/16.83Wh (Typical)
Equivalent to 4350mAh
Suitable temperature range for VOOC 15℃ - 35℃
59℉ - 95°F
Adapter model/parameters I/P: 100-240V ~ 50/60Hz,1.8 A;
O/P: 5VDC 2A or 10VDC 6.5A Max
Standard charger power Max power: 65 W (10 V/6.5 A)
Energy density 643 Wh/L
Estimated audio playback time 26.8h
Maximum call time 12h
Estimated video playback time 10h
Maximum standby time 200h
Theoretical standby time (4G) 200h
Maximum standby time (3G) 220h
Theoretical standby time (2G) 260h
Estimated audio playing time (through speaker at medium volume) 26.8h
Estimated video playing time (through speaker at medium volume) 10h
Fast charging SuperVOOC 2.0, SuperVOOC, VOOC 3.0, PD (9V/2A), QC (9V/2A)
VOOC Supported
Wireless charging Not supported
Charger model VCA7GBIH, VCA7JAIH, VCA7GBIN
Reverse charging Supported
Breathing light None
Time required for a full charge 37 minutes (Fastest)
Battery model BLP823 lithium-ion polymer battery

24. Other hardware

SAR To be provided (About Dec 10)
Sound effects Dolby effects (supported by both the speaker and earphones)
Hi-Fi Not supported
Chip (chip model) if Hi-Fi is supported Not supported
Standalone or integrated audio decoder chip MT6359, integrated
Audio certification Dolby
Vibration motor Z-axis linear motor
Waterproof IP rating IP34, enough for daily routine
Heat dissipation mechanism VC vapor copper sheet
Top ports and holes (from left to right) Proximity sensor and microphone
Bottom ports and holes (from left to right) SIM card, microphone, USB port, speaker
Button backlight None
25. Speaker/Microphone
Number of speakers 1
Number of microphones Two
Speaker (ultra-linear, super-dynamic, or super-balanced speaker) Super-linear speaker
Noise reduction Dual-microphone noise reduction
26. Work environment
Work temperature 0°C–35°C (32°F–95°F)
Storage temperature -20°C–45°C (-4°F–113°F)
Relative humidity A moisture of 5%–95% under a non-condensable state
Working altitude Up to 3,000 meters (10,000 feet) according to testing data

27. Phone accessories

Package contents Phone x1
Earphones x1
USB cable x 1
Charger x1
SIM ejector tool x1
Protective case x1
Quick start guide x 1
Safety guide x 1
SIM ejector tool Provided
Phone case material TPU
Is the standard phone case elastic and transparent? Yes.
Screen protector Yes
USB cable length and color One-meter long and white.
Is a TF card  available? No
Plastic film sealing Yes

28. Earphones

Speaker size Ø14.2mm
Rated power 3mW
Sensitivity  95±3dB
Impedance of the earphones 56Ω
Model of the earphones MH148
Certification standard N/A for Type-C port
Frequency range 20 Hz–20 kHz
Push-to-talk on earphones Supported
Wake voice assistant Not supported
Volume control Not supported
Switching songs Pre-installed music player: Supports switchig to the next song by pressing twice or pressing three times. Pressing three times to switch to the previous song is not supported.
Third-party music player: Supports switching to the next song by pressing two times and switching to the previous song by pressing three times.
In-ear monitoring Supported
Earphone jack Type-C

29. Earphones (Indian standards for the Indian market)

Speaker size Ø14.2mm
Rated power 3mW
Sensitivity  95±3dB
Impedance of the earphones 56Ω
Model of the earphones MH148
Frequency range 20 Hz–20 kHz
Push-to-talk on earphones N/A
Wake voice assistant N/A
Volume control Not supported
Switching songs Supported
In-ear monitoring Supported

30. Packaging specifications

Region 1 India
SAR & certificate number head SAR:1.18W/kg
body SAR:0.99W/kg
Region 2 N/A
SAR & certificate number N/A
Region 3 N/A
SAR & certificate number N/A
Region 4 N/A
SAR & certificate number N/A
Region 5 N/A
SAR & certificate number N/A
Region 6 N/A
SAR & certificate number N/A
Frequency bands India:
GSM: 850/900/1800/1900MHz
WCDMA: Bands 1/2/4/5/6/8/19
LTE FDD: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/66
LTE TDD: Bands 38/39/40/41
5G NR: n1/n3/n7/n28/n38/n40/n41/n77/n78
Model name CPH2201
Table for power information See attachment
Battery voltage and charging current 7.74V/6.5A
Camera parameters Rear camera:
64MP+8MP+2MP+2MP
Front camera:
32MP
Hi-Res Not supported
Water resistance IP34, enough for daily routine

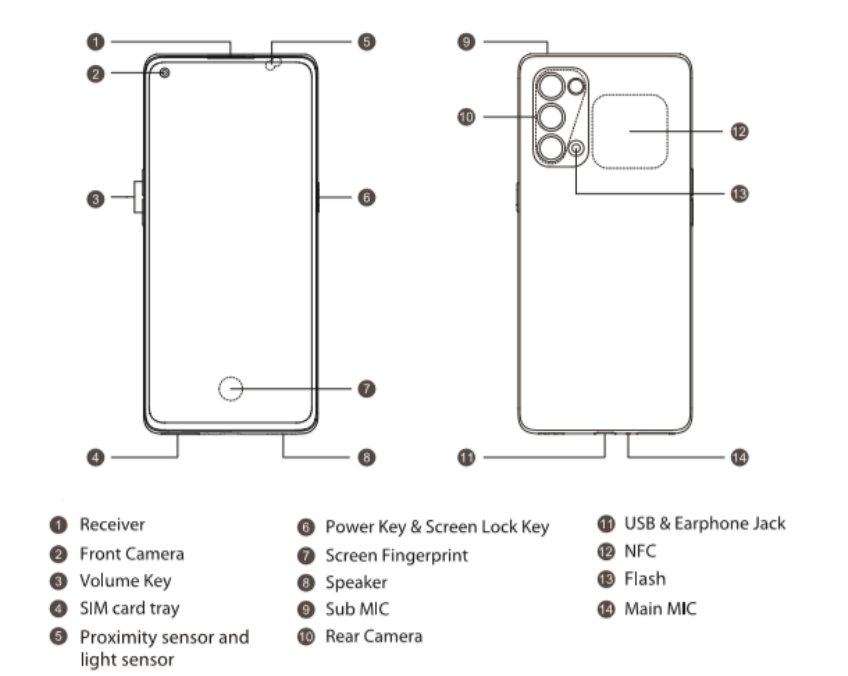

31. Appearance

Appearance

undefined

32. Vector illustration


undefined


Related Articles

OPPO Reno5 Pro 5G&OPPO Reno5 Pro (CPH2201) FAQ

Views: 2Likes: 0
Read Article

OPPO Reno5 Pro 5G & Reno5 Pro (CPH2201) FAQ

Views: 1Likes: 0
Read Article

OPPO Reno5 Pro 5G&OPPO Reno5 Pro(CPH2201) Specification Parameter List

Views: 2Likes: 2
Read Article

Does OPPO Reno5 Pro 5G Supports FM Radio

Views: 1.4KLikes: 30
Read Article

How to Capture Neon Portraits in OPPO Reno5 Pro 5G

Views: 6.3KLikes: 216
Read Article
