Reno4 Pro 5G Specification Parameter List
1. Basic Information
|
Product marketing name |
OPPO Reno4 Pro 5G |
|
R&D project code |
19591 |
|
Phone model and name |
CPH2089 |
|
Launch time |
2020/7/31 |

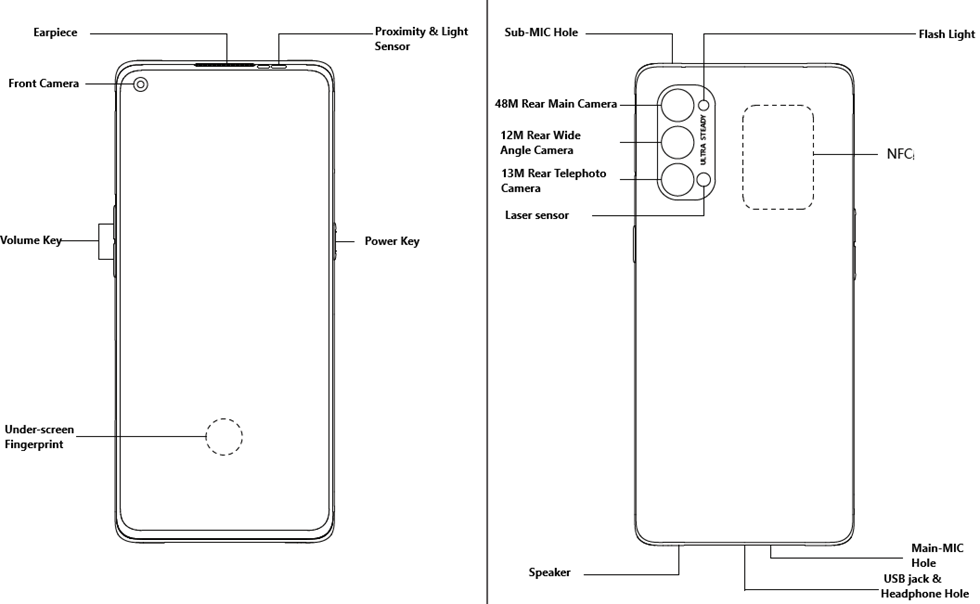

2. Appearance
|
Color |
12+256: Space Black、Galactic Blue、Green Glitter（TBD） |
|
Size |
159.6mm x 72.5mm x 7.6mm |
|
Weight |
About 172g |
3. Material and Process
|
Middle frame material |
Aluminum alloy (6A09H) |
|
Back cover material |
Corning Gorilla Glass 5 |
|
Back cover process |
Reno Glow/highlight |
|
Protection film on back cover |
No |
|
Oleophobic coating on back cover |
Yes |
|
Middle frame contained in screen/back cover |
Yes |
4. Screen
|
Screen size |
6.5 inches |
|
Screen aspect ratio |
20:9 |
|
Screen material |
AMOLED |
|
Screen supplier |
Samsung |
|
Top border |
2.25mm |
|
Bottom border |
3.15mm |
|
Left and right borders |
1.65mm |
|
Screen-to-body ratio |
AA screen-to-body ratio: 92.1% |
|
Screen resolution |
2400*1080 |
|
Color gamut |
Vivid mode: 97% NTSC/100% DCI-P3 |
|
Pixels per inch |
402 ppi |
|
Contrast |
5000000：1 |
|
Brightness |
Typical value: 500nits; up to 800nits in sunlight; up to 1100nits for HDR photo and HDR10+ content display |
|
Finger motion capture frequency |
180Hz |
|
Color saturation |
Typical value: 97% |
|
Front screen material |
Corning Gorilla Glass 5 |
|
Screen refresh rate |
90Hz |
|
Screen colors |
16 million |
|
Touch screen bonding process |
On-Cell |
|
Touch points |
10 |
|
Touch sampling rate |
180Hz (90Hz)/120 (60Hz) |
|
Screen protection film type |
3D HD film |
|
Oleophobic coating on screen |
Yes |
|
Oleophobic coating on film from manufacturer |
Yes |
|
Full Care Display Certification by TUV Rheinland |
No (full) |
|
Night mode |
Yes |
|
Eye comfort |
Yes |
|
Low-brightness flicker-free eye comfort |
Yes |
|
Screen HDR |
Yes |
|
Touch screen type |
Capacitive screen |
5. SoC
|
CPU model |
Kryo 475 (SM7250) |
|
Processing platform |
Qualcomm Snapdragon 765G (SM7250) |
|
CPU frequency |
8 cores, max CPU clock rate: 2.4GHz (1 ultra big core + 1 big core + 6 small cores) |
|
GPU model |
Adreno™ 620@625MHz |
|
CPU architecture |
1x Gold plus at 2.4GHz |
|
Memory frequency |
2133MHz |
|
Memory specifications |
2×16bit, LPDDR4X |
|
CPU process technology |
7nm |
|
GPU process technology |
7nm |
|
AI capabilities |
Qualcomm fifth-generation AI engine (AIE) |
|
Number of cores |
8 |
|
Processor bit |
64 |
6. Storage
|
RAM capacity + ROM capacity |
12 + 256G |
|
RAM specifications |
LPDDR4x@2133MHz 2×16bit |
|
ROM specifications |
UFS2.1@2Lanes HS-Gear3 |
|
Storage card |
No |
|
Specifications of supported expansion cards |
No |
|
Move programs to memory card |
No storage card (not supported) |
|
OTG data transmission |
Yes (supports OTG reverse charge) |
|
OTG storage format |
FAT32/EXFAT/NTFS |
|
Maximum OTG storage supported |
2TB |
|
Number of RAM channels |
2 |
7. Front camera
|
Sensor specifications |
IMX 616, 32MP (32 megapixels) 1/2.74''， 0.8㎛, 4-in-1 pixel aggregation supported |
|
Equivalent focal length |
25mm |
|
Focal length |
3.74mm |
|
Lens FOV |
80° |
|
Aperture |
f/2.4 |
|
Lens assembly |
Front 5P |
|
Focus mode |
Fixed-focus |
|
Shooting mode |
Video, photo, portrait, PANO, time lapse |
|
Front image size |
Max 4928 x 6560 |
|
Image file format |
jpg |
|
Video shooting |
Front camera: 1080P/720P@30fps |
|
SLO-MO video |
No |
|
Video file format |
MP4 (h.264, h.265) |
|
Optical zoom |
No |
|
Optical image stabilization |
No |
|
Digital image stabilization |
Yes |
|
Flash |
No |
|
Soft light |
No |
|
Camera structure |
Front hole |
|
Shooting method |
Shooting with touch/volume key/gestures/virtual screen buttons |
|
Sensor type |
CMOS (front 4-in-1 camera) |
|
Protection glass material |
Corning Gorilla Glass 5 |
|
Pixels |
32MP |
|
Lens position order (front) |
32MP selfie with beautification |
8. Rear Camera
|
Sensor specifications |
Main camera: IMX 586 48MP, 1/2.0", 0.8㎛, 4-in-1 pixel aggregation supported |
|
Lens specifications |
Main camera: f/1.7, FOV 80°, 6P lens, AF supported, 26mm equivalent focal length, closed-loop focus motor, OIS supported |
|
Optical image stabilization |
Yes |
|
Digital image stabilization |
Yes |
|
Optical zoom |
3X optical zoom + 20X digital zoom + 5X hybrid zoom |
|
Aperture |
Main camera (1/1.7) + ultra wide angle (1/2.2) + telephoto (1/2.4) |
|
Focus mode |
CDAF + PDAF + LDAF |
|
Shooting mode |
Night, video, photo, portrait, PANO, time lapse, SLO-MO, expert |
|
Image size |
HD mode: 8000 x 6000; default mode: max 4000 x 3000 |
|
Image file format |
jpg |
|
Video shooting |
Rear camera: up to 4K (30fps) 1080P@60fps/30fps, 720P@60fps/30fps |
|
SLO-MO video |
1080P@120fps, 720P@240fps |
|
Video stabilization - working principle |
EIS + OIS supported |
|
Video Ultra Steady |
Yes |
|
Video zoom |
Yes |
|
Video file format |
MP4 (h.264, h.265) |
|
Flash |
Rear single LED light with single color temperature |
|
Shooting method |
Shooting with touch/volume key/virtual screen buttons |
|
Automatic scene recognition |
Yes |
|
Sensor type |
CMOS (rear 4-in-1 main camera, front 4-in-1 camera) |
|
Protection glass material |
Corning Gorilla Glass 5 |
|
Pixels |
Main camera 48MP + wide angle 12MP + telephoto 13MP |
|
Camera combination |
From top to bottom: main camera 48MP + wide angle 12MP + telephoto 13MP |
|
Zoom mode |
3X optical zoom + 20X digital zoom + 5X hybrid zoom |
|
Wide angle |
120° |
|
Focal length |
4.77mm + 2.75mm + 6.24mm |
|
Number of continuous shots |
20 |
|
Macro lens |
No |
|
Photo features |
Filter, auto-enhance, beauty, bokeh |
|
Rear image size |
HD mode: 8000 x 6000; default mode: max 4000 x 3000 |
|
Video format |
MP4 |
|
Fill light for video shooting |
Yes |
|
Shooting method |
Shooting with touch/volume key/virtual screen buttons |
|
Ultra-HD mode |
Yes, 48MP |
|
Lens position order (rear) |
48MP main camera (OIS) + 12MP wide angle + 13MP telephoto |
9. Operating System
|
Android version |
Android 10 |
|
Factory system version |
ColorOS 7.2 |
|
OPPO apps |
Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Album, Phone Manager, Weather, Cloud Service, Calculator, OPPO Relax,Recorder, One-Tap Lock Screen, Compass,OPPO Service, Soloop, Video, OPPO LAB, Game Space, OPPO+,Music Party,Oroaming |
|
Built-in third-party apps |
Google Suite All regions |
|
Deletable apps |
Weather, Calculator, OPPO Relax, Recorder, One-Tap Lock Screen, Compass, Soloop, OPPO LAB |
|
Undeletable apps |
Clone Phone, Clock, Music, Theme Store, Camera, Album, Phone Manager, File Manager, Cloud Service, Video, My OPPO, Quick Games, OPPO Service,Game Space,Music Party，Oroaming |
|
Built-in apps |
Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Album, Phone Manager, Weather, Cloud Service, Calculator, OPPO Relax, Recorder, One-Tap Lock Screen, Compass, OPPO Service, Soloop, Video, OPPO LAB, Game Space, Oroaming |
|
One-way, two-way |
One-way |
|
VoLTE |
CLICK HERE to check the support list for VoLTE |
|
Voice call solution |
VoLTE when VoLTE is enabled, CSFB when it is not enabled |
|
Upper limit of call logs |
3000 |
|
Video call |
Yes |
|
Pick up call with earphones |
Yes |
|
Call recording |
Not supported by Google Dialer; supported by OPPO Dialer |
|
Call recording format |
MP3 |
|
Save location of recordings |
File Management-Mobile Storage-All Files-Recordings |
|
Automatic call recording |
Not supported by Google Dialer; supported by OPPO Dialer |
|
Speed dial |
Not supported by Google Dialer; supported by OPPO Dialer |
|
Caller ID avatar |
Yes |
|
Caller background |
Yes |
|
Import/Export SIM card contacts |
Yes |
|
Maximum number of saved contacts |
Depends on mobile phone storage |
|
Maximum number of blacklist contacts |
Depends on mobile phone storage |
|
Contacts format |
vcard csv |
|
Grouping |
Yes |
|
Customized grouping |
Yes |
|
Upper limit for SMS group sending |
200 |
|
Upper limit for SMS blacklist |
Depends on mobile phone storage |
|
SMS capacity |
Depends on mobile phone storage |
|
Maximum length of a short message |
1530 English characters (Chinese, for encoding reasons, will be less than 1530), SMS exceeding the limit will automatically be converted to MMS. |
|
Capacity of one MMS |
300K |
|
Timed SMS |
No |
|
Import/Export SMS |
Yes |
|
Number of MMS saved |
Depends on mobile phone storage |
10. ColorOS Features
|
Built-in browser |
Goole Chrome |
|
Picture editing features |
Filter, auto-enhance, crop, rotate, sticker, graffiti, beauty, text, mosaic, bokeh, eraser, adjust |
|
Images that come with phone |
No |
|
Music that comes with phone |
No |
|
Firewall/Block&filter |
No |
|
Data backup |
Yes |
|
File compression/decompression |
Yes |
|
File encryption |
Yes |
|
App lock |
Yes |
|
Fingerprint password reset |
Yes |
|
App lock method |
Number password, pattern lock |
|
MHL HD output |
Yes |
|
Split-screen mode |
Yes |
|
Picture-in-picture |
Yes |
|
Video floating window (little window mode) |
Yes |
|
Web video playback |
Yes |
|
Google Lens |
Yes |
|
|
Yes |
|
E-book |
Yes |
|
Office tools |
Yes |
|
Weather widget |
Yes |
|
Time widget |
Yes |
|
Music widget |
Yes |
|
Third-party software widgets |
Yes |
|
Built-in radio |
No |
|
Gestures and motions |
Screen-off gestures, automatic answering and calling, raise to wake, and 3-finger screenshot |
|
Incoming call banner |
Yes |
|
End call with power button |
Yes |
|
Kid Space (visitor mode) |
Yes |
|
Third-party input method |
Yes |
|
HD format |
Yes |
|
Format of sound recordings |
mp3/amr |
|
Ringtone format |
mp3 |
|
World time |
Yes |
|
HDMI screencast |
Yes |
|
Flashlight |
Yes |
|
Screen-off clock |
Yes |
|
Hall sensor/little window mode |
No |
|
Screen recording |
Yes |
|
Compass app |
Yes |
|
App Cloner |
Yes |
|
OPPO Share |
Yes |
|
OSIE vision effect |
No |
|
Background freeze (pure background) |
Yes |
|
Voice changer |
Yes |
|
Game boost (for popular apps) |
Yes （PUBG MOBILE/MobileLegends) |
|
Game Space |
Supports the game engine for better performance; Supports network acceleration to effectively reduce network latency by more than 80%; Automatically updates game resources through Wi-Fi connection; Game icons are not displayed on Home screen; Provides competitive mode/balanced mode/low power consumption mode; Supports customized cover/screenshot and screen recording/game report/use time/game consultation. |
|
System file format |
ext4 |
|
Game support |
MobileLegends can open 60 frames. |
|
Step counting method |
Yes |
|
Dual Wi-Fi |
Supports manual turn-on |
|
Breathing light |
No |
|
Recently deleted (album recycle bin) |
Yes |
|
Flash |
No |
11. Local Files
|
Video playback |
AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV |
|
Audio playback |
MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA |
|
Viewable file formats |
txt, pdf, word, excel, ppt |
|
Graphic formats |
JPEG/PNG/GIF/BMP |
12. OPPO Wallet
|
Bank card |
No |
|
Transit card |
No |
|
Electronic identity authentication |
No |
|
Access card |
No |
13. Wireless Connection
|
NFC |
Supports Android Beam; supportsHCE, UICC |
|
Wi-Fi features (network antenna) |
Supports WLAN 2.4G, WLAN 5.1G, WLAN 5.8G, WLAN Display; supports MU-MIMO |
|
WLAN protocol |
802.11a/b/g/n/ac |
|
Theoretical Wi-Fi rate |
866Mbps |
|
WLAN Display |
Yes |
|
Personal hotspot/Wi-Fi hotspot |
Yes |
|
Maximum number of devices that can be connected to hotspot |
10 |
|
Bluetooth version |
Bluetooth 5.1 |
|
Bluetooth audio specifications |
SBC, AAC, aptX, aptX-HD, aptX-TWS, LDAC |
|
Bluetooth support protocols |
HFP, HSP, A2DP, AVRCP, HID, PBAP, PAN, OPP, MAP, GATT |
|
Wi-Fi antenna |
2×2 MIMO |
|
WLAN frequency bands |
2.4GHz, 5.1GHz, 5.4GHz, 5.8GHz |
|
FM features (classification to be determined) |
No |
|
Bluetooth tethering |
Yes |
14. Cellular Network
|
LTE antenna |
bands 1/3/4/7/38/40/41/42/66 4×4 MIMO; other bands: 2×2 MIMO |
|
VoLTE |
For carriers supporting VoLTE, see the IMS schedule. |
|
5G dual-mode/single-mode |
SA/NSA dual-mode |
|
Carriers supporting VoLTE |
Confirmed by the actual city area operator |
|
Network modes |
GSM, WCDMA, TD-LTE, LTE FDD, NR |
|
Data service |
GPRS, EDGE, HSPA+, WCDMA, TD-LTE, LTE FDD, NR |
|
Dual SIM instructions |
Support dual SIM card area, two SIM cards can be used together, any one SIM card can be used as an Internet card |
|
Network frequency bands (Separately specify frequency bands for SIM 1 and SIM 2.) |
Eorupe： |
|
5G network |
NSA/SA |
|
4G+ network |
TD-LTE，LTE FDD |
|
4G network |
TD-LTE，LTE FDD |
|
3G network |
UMTS(WCDMA) |
|
2G network |
GSM |
|
Frequency bands supported |
Publicity of this parameter is not recommended. |
|
5G network uplink and downlink rates |
Uplink: 500Mbps |
|
4G network uplink and downlink rates |
Uplink: 500Mbps |
|
Link boost |
High-speed rail mode, SLA multi-channel network acceleration, low-latency gaming, fast recovery from exceptions |
15. SIM Card
|
SIM card type and size |
Dual nano-SIM card（According to the actual city area, some operators have a single SIM card） |
|
SIM card slot type and material |
Dual nano-SIM card holders（According to the actual city area, some operators have a single SIM card） |
| Region(Operator) | CN/TW/HK/TH/MY/PL/RO/RU/NZ/AU/EU/UK(CPW)/CH/AE/SA/PL(DT)/RO(VF)/UK(VF)/UK(EE)/CH(SW)/FR(ORG)/FR(BYG)/FR(SFR)/DE(DT)/NL(DT)/NL(KPN)/NL(VF)/ES(MOV)/ES(ORG)/ES(YOG)/ES(VF)/PT(VF)/IT(VF)/BE(PRX)/BE(TN-B)/BE(ORG) | Dual card |
16. Buttons and Interfaces
|
Audio interface |
USB Type-C |
|
Data interface |
USB Type-C |
|
Transfer protocol (USB) |
USB 2.0 |
|
Pins (USB) |
16 |
|
Navigation buttons |
No physical navigation buttons; supports virtual screen buttons and gesture navigation operations |
|
Power button&Volume button |
 |
17. Positioning Features
|
Satellite positioning |
Built-in GPS; supports A-GPS, Beidou, Glonass, Galileo, QZSS |
|
Others |
Supports wireless local area network/cellular network positioning; supports electronic compass |
|
Map software |
Google Map |
|
GPS navigation |
Built-in GPS; supports A-GPS, Beidou, Glonass, Galileo, QZSS |
|
Dual-band GPS |
single frequency GPS |
18. Fingerprint and Face Recognition
|
Fingerprint |
Under-screen fingerprint sensor |
|
Fingerprint unlock time |
About 345ms |
|
Fingerprint payment |
WeChat Pay, Alipay |
|
Face recognition |
Yes |
|
Face scan payment |
No |
|
Face unlock time |
About 550ms |
19. Sensor
|
Sensor type |
Geomagnetic sensor, proximity sensor, light sensor, accelerometer, gravity sensor, gyroscope, step recording function supported |
|
Infrared emitter |
No |
20. Battery & Charging
|
Battery |
2 × 2000mAh cells/15.48Wh (typical value), equivalent to 4000mAh/15.48Wh (dual cells in series); |
|
Fast charge |
Supports 65W SuperVOOC 2.0, SuperVOOC, PD (9V/2A), QC (9V/2A), VOOC fast charge protocols |
|
VOOC Flash Charge |
Yes |
|
Wireless charging |
No |
|
Suitable temperature range for VOOC Flash Charge |
15℃—35℃ |
|
Standard charger model |
US standard：VCA7JAUH |
|
Power adapter model/parameters |
US standard：VCA7JAUH |
|
Reverse charge |
Supports OTG reverse charge |
|
Standard charger power |
65W, 10V/6.5A (MAX) or 5V/2A |
|
Charging breathing light |
No |
|
Charging time (100%) |
About 36 minutes |
|
Battery model |
BLP787 polymer lithium ion battery pack |
|
Energy density |
640Wh/L |
|
Theoretical music playback time |
81.4 hours |
|
Theoretical talk time |
24 hours |
|
Theoretical video playback time |
21.9 hours |
|
Theoretical standby time |
425 hours |
|
Theoretical standby time in 4G network |
324 hours |
|
Theoretical standby time in 3G network |
319 hours |
|
Theoretical standby time in 2G network |
333 hours |
|
Theoretical music playback time (medium volume in speaker mode) |
27 hours |
|
Theoretical video playback time (medium volume in speaker mode) |
18 hours |
21. Other Hardware
|
Sound effect |
Dolby Atmos supported by speaker and earphone modes |
|
Hi-Fi |
No |
|
Chip and chip model (if Hi-Fi is supported) |
No |
|
Independent audio decoding chip/Integrated decoding chip |
Independent audio decoding chip |
|
Audio authentication standards |
No |
|
Vibration motor |
Flat rotor motor |
|
Water resistance rating |
IP54 |
|
SAR value |
HK/TH/NZ/AU/RU/UAE/SA： |
|
Heat dissipation structure |
Graphite sheet + VC condensing copper plate + thermal conductive grease + copper foil thermal conductive material |
|
Ultra linear speaker/Ultra dynamic speaker/Ultra balanced speaker |
Ultra linear speaker |
|
Top openings from left to right |
Microphone hole |
|
Bottom openings from left to right |
SIM card pinhole, microphone hole, Type C port, speaker hole |
|
Button backlight |
No |
22. Speaker/Microphone
|
Number of speakers |
2 |
|
Ultra linear speaker/Ultra dynamic speaker/Ultra balanced speaker |
Ultra linear speaker |
|
Noise reduction method |
Dual-microphone noise reduction |
23. Operating Environment
|
Operating ambient temperature |
0°C to 35°C (32°F to 95°F) |
|
Non-operating temperature |
‑20°C to 45°C (‑4°F to 113°F) |
|
Relative humidity |
5-95%, non-condensing |
|
Working height |
Up to 3,000 meters (10,000 feet) according to current tests |
24. Phone Accessories
|
Packing list |
Phone, data cable, charger, SIM card tool, case, Quick Start Guide,Safety Guide, earphones |
|
SIM card tool |
Yes |
|
Standard case material |
TPU |
|
Standard case hardness/transparency |
Transparent |
|
Film |
Yes |
|
Data cable length and appearance |
1m, white |
|
Standard TF-card |
No |
|
Plastic package |
Yes |
25. Warranty information
|
Warranty policy |
Subject to the actual local policy of the city area |
|
Warranty period |
1 year in Asia Pacific, 2 years in Europe |
|
Warranty remarks |
1 year in Asia Pacific, 2 years in Europe |
|
Customer service hotline |
Depends on countries |
|
Phone call remarks |
Depends on countries |
|
Details |
You can enjoy free replacement within 7 days from the purchase date (refer to the service policy of each region) in case of any quality problem or failure. Free repair services are available during the warranty period. Remarks: If you purchase any phone accessory separately, please retain your proof of purchase. |
26. Earphones
|
Earphone model |
MH147 |
|
Earphone standard |
typeC |
|
Speaker size |
Ø14.2mm |
|
Rated power |
3mW |
|
Frequency range |
20Hz to 20kHz |
|
Sensitivity |
98±3dB SPL at 1kHz 1mW |
|
Earphone impedance |
54Ω |
|
Earphone press-to-talk |
Yes |
|
Wake up voice assistant |
It does not support waking up the voice assistant through earphone's microphone, but you can call the voice assistant by pressing and holding the button on the microphone shell. |
|
Volume control |
No |
|
Switch to next song |
Yes. Double-click the button on the microphone shell to switch to the next song (Specify the support status and switch method. For example, double-click to switch to the next song, or triple-click to switch to the previous song). |
|
In-ear monitoring |
Yes |
|
Earphone jack |
USB Type-C earphones |
27. Packaging parameters (for models sold outside PRC (Hong Kong SAR and Macao SAR not included))
|
Frequency band information |
Europe, Middle East Africa and Asia Pacific |
