OPPO Reno6 Pro 5G(CPH2249) Parameter list
Views: 0 • Likes: 9
1. Basic information |
|
| Product name | OPPO Reno6 Pro 5G |
| Phone model | CPH2249 |
| Sales region | IN,SG,PK |
| Launch time | 2021/7/20 |
2. Appearance |
|
| Dimensions | 160.0mm X 73.1mm X 7.6mm India: 16.00cm X 7.31cm X 0.76cm |
| Weight | About 177g |
| Phone color | Aurora、Stellar Black |

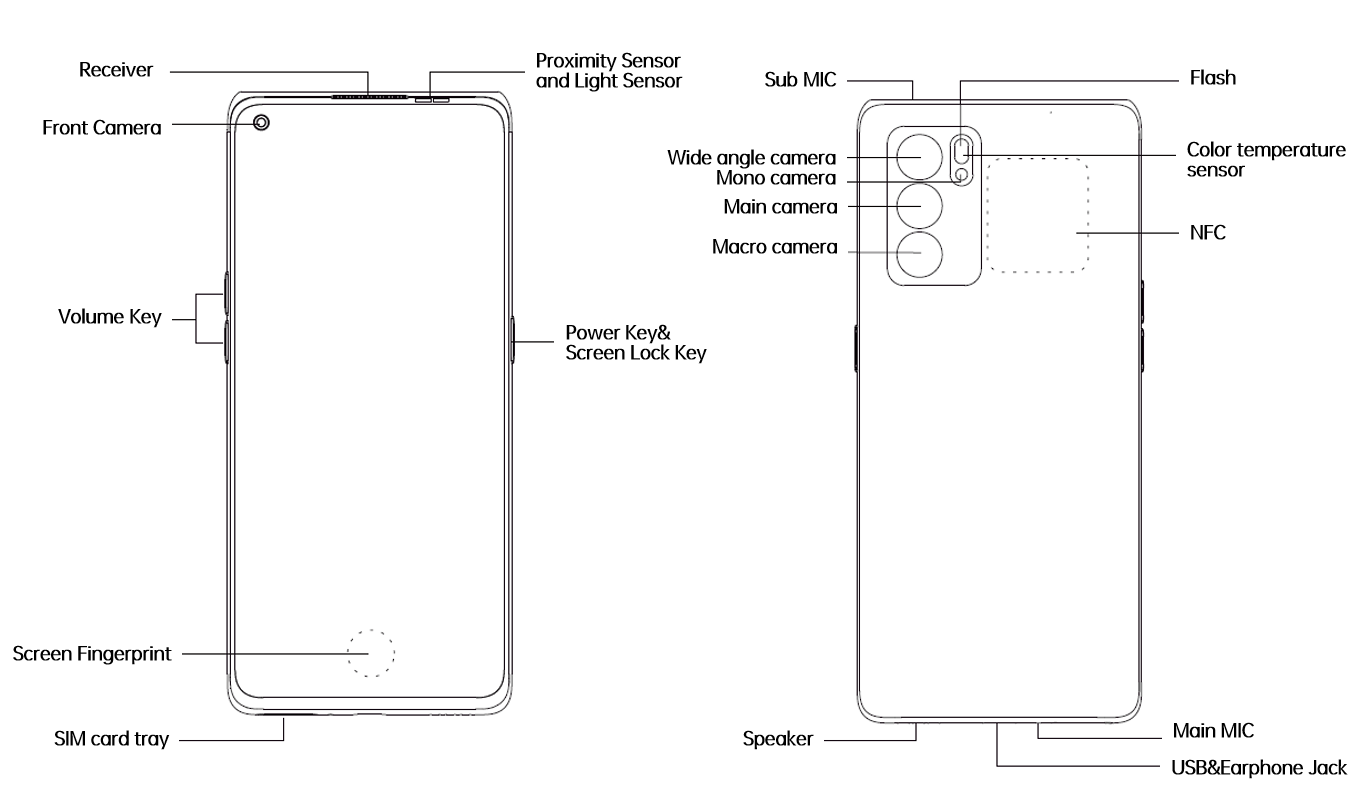

| Product Appearance | |
3. Material and process |
|
| Material of top motherboard case | Plastic: SABIC PC+20% GF EXL4412-7G1A1794 Insert: BYD-HITCA02 |
| Material of bottom motherboard case | None |
| Material of battery cover | DT-star2 |
| Battery cover material and process | AG process |
| Protective film on battery cover | No |
| Oleophobic coating on battery cover | Yes |
4. SoC |
|
| CPU clock rate | 8 cores with a maximum frequency of 3.0 GHz (1 super large core + 3 large cores + 4 small cores) |
| GPU model | ARM G77 MC9 |
| CPU architecture | 1×ARM Cortex-A78, 512 KB 3×ARM Cortex-A78, 256 KB 4×ARM Cortex-A55, 128 KB 2 MB L3 |
| RAM clock speed | 2133 MHz |
| CPU model | 4 ARM Cortex-A78 4 ARM Cortex-A55 |
| Processing platform (Internal name) | MT6893 |
| Processing platform (Public name) | Dimensity 1200 |
| CPU manufacturing process | TSMC 6 nm |
| GPU manufacturing process | 6 nm |
| AI capabilities | APU3.0 + (DLA1.5) 900 MHz INT8: 4.9Tops FP16: 1.0 Tops |
| CPU cores | Octa-core |
| Processor bits | 64-bit |
5. Display |
|
| Size | 6.55 inches |
| Top bezel | 2.25 mm |
| Bottom bezel | 3.15 mm |
| Left and right bezels | 1.65 mm |
| Screen-to-body ratio | 92.1% |
| Color saturation | Typical value: 97% |
| Colors | 16.7 million colors |
| Aspect ratio | 20:9 55.9° |
| Material of display panel | Soft AMOLED |
| Suppliers | BOE |
| Resolution | 2400 x 1080 (FHD+) |
| Color gamut | Vivid mode 97%NTSC/100%DCI-P3 |
| Pixels per inch (PPI) | 402 PPI |
| Contrast ratio | 5000000:1 |
| Brightness | Typical value: 500 nits HBM: 800 nits（up to 800nits in sunlight） |
| Material of screen protection panel | Corning Gorilla Glass 5 (GG5) |
| Refresh rate | 60/90Hz |
| Lamination method of touch screen | On-cell |
| Touch points | 10 |
| Touch sampling rate | Maximum: 180 Hz Default: 120 Hz |
| Screen protector type | TPU film |
| Oleophobic coating on screen | Yes |
| Oleophobic coating on protective film from manufacturer | Yes |
| TÜV Rheinland eye comfort certification | No |
| Night mode | Supported |
| Eye comfort | Supported |
| Low-brightness flicker-free eye comfort | Not supported |
| HDR display | Supported |
| Touch screen type | Capacitive |
6. Storage |
|
| RAM and ROM | 12GB + 256GB |
| RAM specifications | LPDDR4X @ 2133 MHz 4 x 16 bits |
| ROM specifications | UFS 3.1 @ 2-lane HS-Gear4 |
| Phone storage card | Not supported |
| Supported expansion card | Not supported |
| Move apps to storage card | Not supported |
| OTG data transmission | Supported |
| OTG storage format | FAT32 NTFS exFAT |
| Maximum OTG storage | 2TB |
| RAM channels | 4 |
7. Front camera |
|
| Equivalent focal length | 25 mm |
| Effective focal length | 3.77 mm |
| Camera specifications | Front camera:32MP (f/2.4); fov81°; 5P |
| Sensor specifications | sonyIMX615,32MP,4:3 1/2.74; 0.8 um |
| Focus mode | Fixed focus |
| Camera mode | Photo,Video,Panorama,Portrait,Night,Time-lapse,Sticker |
| Photo details | Front camera:IMX615 Device name:OPPO Reno6 Pro 5G Focal length:3.77 mm Aperture:f/2.4 |
| Image size | Maximum size: 4896 x 6528 (32MP) Photo sizes in different aspect ratios: 4896 x 6528 (4:3) 4896 x 4896 (1:1) 2944 x 6528 (full screen) 3680 x 6528 (16:9) |
| Image format | JPG |
| Video shooting | 1080P@30fps (default) or 720P@30fps |
| Video format | Video format:MP4 Video coding format:H.265 (high efficiency) and H.264 (high compatibility) |
| Optical zoom | Not supported |
| Electronic image stabilization (EIS) | Not supported |
| Soft light | None |
| Camera structure | Punch hole |
| Camera control | Press the volume button, touch the screen, tap the virtual button on the screen or use gesture to take photos. |
| Sensor type | CMOS (Main rear camera: 4-in-1) |
| Material of protection glass | Corning Gorilla Glass 5 (GG5) |
| Front camera arrangement | 32MP |
8. Rear camera |
|
| Sensor specifications | Main camera： OmniVISION OV64B 64MP 1/2.0"; 0.7 um; 4:3 2x2PDAF Wide-angle camera： sony imx355 8MP 1/4.0"; 1.12 um; 4:3Macro camera： OmniVISION OV02B10 2MP 1/5.0"; 1.75 um; 4:3
Mono camera： Galaxycore GC02M1B 2MP 1/5.0"; 1.75 um; 4:3 |
| Camera specifications | Main camera: f/1.7; FOV81°; 6P lens, support AF, adopt closed-loop focus motor Wide-angle camera: F/2.2; fov120°; 5P lens Macro camera: F/2.4; fov89°; 3P lens Mono camera: f/2.4; fov89°; 3P lens |
| Effective focal length | Main camera:4.73mm Wide-angle camera:1.64mm Macro camera:1.77mm Mono camera:1.77mm |
| Equivalent focal length | Main camera: 25mm Wide-angle camera: 15mm Macro camera: 22mm Mono camera: 22mm |
| Optical zoom | None |
| Electronic image stabilization (EIS) | Supported |
| Optical image stabilization (OIS) | Not supported |
| Focus mode | Main camera:Contrast detection autofocus + Phase detection autofocus Wide-angle camera:Not supported |
| Camera mode | Photo,Video,Night,Expert,Panorama,Portrait,Time-lapse,Slow-motion,Text scanner and Sticker |
| Image format | JPG |
| Video taking | 4K@30fps,1080P@60fps/30fps, and 720P@60fps/30fps |
| Video format | Video format: MP4 Video coding format: H.265 (high efficiency) and H.264 (default format,high compatibility) |
| Flash light | One main rear light with single color temperature |
| Camera control | Press the volume button, touch the screen, or tap the virtual button on the screen to take photos. |
| Smart scenario recognition | Supported |
| Sensor type | CMOS (Main rear camera: 4-in-1) |
| Material of protection glass | Corning Gorilla Glass 5 (GG5) |
| Rear camera arrangement (Screen facing down) | Wide-angle camera 8MP + Main camera 64MP + Macro camera 2MP + Mono camera 2MP |
| Zoom mode | 20x digital zoom |
| Burst photos | 20 photos |
| Photo editing options | Crop & rotate, Adjust, Filter, Markup, Text, Mosaic, Beautify, Stickers, Eraser, Blur |
| Photo details | Main camera: Device name: OPPO Reno6 Pro 5G Focal length: 4.73 mm Aperture: f/1.7 Wide angle camera: Device name: OPPO Reno6 Pro 5G Focal length: 2.13 mm Aperture: f/2.2 Macro camera: Device name: OPPO Reno6 Pro 5G Focal length: 1.77 mm Aperture: f/2.4 Mono camera: Device name: OPPO Reno6 Pro 5G Focal length: 1.77 mm Aperture: f/2.4 |
| Image size | Maximum size: 6936 x 9248 (64MP) Photo sizes in different aspect ratios: 3468 x 4624 (4:3) 3468 x 3468 (1:1) 2080 x 4624 (full screen) 2608 x 4624 (16:9) |
| Fill light for video shooting | Supported |
9. OS-Version info and apps |
|
| Android version | Android 11 |
| OS Version | ColorOS 11.3 |
| OPPO apps | Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Photos, Phone Manager, Weather, HeyTap Cloud, Calculator, OPPO Relax, Recorder, Screen Lock, Compass, Soloop, Videos, Game Space, Music Party, ORoaming |
| Pre-installed third-party apps | Google File,Facebook,FB Installer, FB Manager, FBNS,Netflix，etc |
| Apps that can be uninstalled | Weather,Calculator,OPPO Relax, Recorder, Screen Lock, Compass, Soloop, Videos, Game Space, Music Party,Oroaming and other overseas third-party apps can be uninstalled |
| Apps that cannot be uninstalled | Netflix, Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Photos, Phone Manager, HeyTap Cloud |
| Pre-installed apps | OPPO apps+Pre-installed third-party apps |
10. OS-Calls |
|
| Dual-card single/dual pass | Dual-card single pass |
| Voice call solution | Yes VoLTE if VoLTE is enabled, and CSFB if VoLTE is not enabled |
| Maximum number of call logs | 3000 |
| Video call | Supported |
| Answering phone calls using earphones | Supported |
| Call recording | Supported |
| Call recording format | AWB |
| Storage location for call recordings | File Manager-Phone storage-Music-Recordings-Call recordings |
| Automatic call recording | Supported |
| Quick dial | Supported |
11. OS-Contacts |
|
| Display caller's profile picture | Supported |
| Display background for incoming calls | Supported |
| SIM card contacts import and export | Supported |
| Maximum number of contacts that can be saved | Depends on the size of phone storage space |
| Maximum number of blocklisted contacts | Depends on the size of phone storage space |
| Contact file format | Export format: VCF Import format: VCF (vCard) and CSV |
| Contacts grouping | Supported |
| Customized contacts grouping | Supported |
12. OS-Messages |
|
| Maximum number of recipients for group SMS messages | 200 |
| Maximum number of blocklisted SMS contacts | Depends on the size of phone storage space |
| SMS capacity | Depends on the size of phone storage space |
| SMS character limit | 1530 English characters (Chinese, for encoding reasons, will be less than 1530); SMS exceeding the limit will be automatically converted to MMS. |
| Max size for MMS message | 300 KB |
| Schedule messages | Not supported |
| Messages import and export | Supported |
| Number of MMS messages that can be stored | Depends on the size of phone storage space |
13. OS function |
|
| Pre-installed browser | Google Chrome |
| Image editing function | Filter, Auto enhance,Crop & rotate,Stickers,Doodle,Retouch,Text,Mosaic,Blur and Eraser |
| Pre-loaded images | None |
| Pre-loaded music | None |
| Firewall/Block & filter | Calls and SMS messages can be blocked. |
| Backup and restore | Supported |
| File compression and extraction | Supported |
| Private Safe (file lock) | Supported |
| App lock | Supported |
| Resetting password using fingerprint | Not supported |
| App lock method | Pattern,PIN,alphanumeric password, fingerprint and face |
| MHL HD output | Not supported |
| Split screen mode | Supported |
| Picture-in-picture (PIP) | Supported |
| Playing videos in floating window (mini window mode) | Supported |
| Webpage video playback | Supported |
| Google Lens | Supported |
| Supported | |
| Reader | Supported |
| Office tools | Supported: The WPS File Viewer is pre-installed on the phone, and third-party office apps can also be installed. |
| Weather widget | Not supported(Weather info is included in the Clock widget). |
| Clock widget | Supported |
| Music widget | Not supported |
| Third-party software widget | Supported |
| Pre-installed Radio app | Not supported |
| Gestures & motions | Screen-off gestures, smart call, raise to wake, and 3-finger screenshot |
| Incoming call banner | Supported |
| Ending calls with Power button | Supported |
| Kid Space (Guest mode) | Not supported |
| Third-party input method | Supported |
| High-definition format | Supported |
| Format of audio recordings | Call recordings:AWB Other recordings:MP3 |
| Ringtone format | MP3 |
| World clock | Supported |
| Screencast through HDMI | Not supported |
| Flashlight | Supported |
| Always-On Display | Supported |
| Hall effect sensor/Mini window mode | Not supported |
| Screen recording | Supported |
| Compass | Supported |
| App cloner | Supported |
| OPPO Share | Supported |
| OSIE visual effect | Supported |
| Freezing third-party apps running in background | Supported |
| Voice changer | Not supported |
| Game acceleration (Mainstream apps) | PUBG, Arena of Valor |
| Game Space | Supported（In Games） |
| OPPO Share | Supported |
| File system | Flash-friendly file system (F2FS) |
| Game support | Max configurations supported for Arena of Valor: HD Display—Enabled Display Quality—HD Particle Quality—High High Frame Rate Mode—Enabled. Support 60FPS (90FPS is not supported for this game). Max configuration supported for PUBG: Graphics—SmoothFrame Rate—High Highlight Reel and Free Record are not supported. |
| Step counting method | Supported |
| Dual Wi-Fi | Not supported |
| Breathing light | None |
| Recently deleted (Photo recycle bin) | Supported |
| Flash | Not supported |
14. Local files |
|
| Video streaming | AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV,etc. |
| Audio format | MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA,etc. |
| Supported document formats (for document viewing) | TXT, PDF, Word, Excel, PPT |
| Image format | JPEG/PNG/GIF/BMP |
15. OPPO Wallet |
|
| Bank cards | Not supported |
| Transit card | Not supported |
| eID | Not supported |
| Access card | Not supported |
16. Wireless connection |
|
| NFC | 1. Supported 2. Supports Android Beam, HCE and UICC Multi-function NFC: HCE and NFC-SIM |
| Wi-Fi function (Antenna) | Wi-Fi 6(802.11ax), Wi-Fi 5(802.11ac), 802.11a/b/g/n/; Wi-Fi 2.4G/5.1G/5.8G; Wi-Fi Display and Wi-Fi tethering; 2 × 2 MIMO and MU-MIMO |
| Wi-Fi protocol | 802.11 a/b/g/n/ac/ax |
| Maximum data rate (theoretical) | Wi-Fi (5G): 1.2Gbps Wi-Fi (2.4G): 286Mbps |
| Wi-Fi display | Supported |
| Personal hotspot/Wi-Fi hotspot | Supported |
| Maximum number of devices that can be connected to a hotspot | 10 |
| Bluetooth version | Bluetooth 5.2,Bluetooth Low Energy, TWS+, BLE |
| Bluetooth audio specifications | SBC,AAC,aptX,aptX HD and LDAC |
| Supported Bluetooth protocols | HFP,HSP,A2DP,AVRCP,HID,PAN, OPP,MAP,PBAP and GATT |
| Wi-Fi antenna | 2 x 2 MIMO; 2.4G/5G dual band Wi-Fi |
| Wi-Fi frequency | Singapore, Pakistan: , and India 2.4 GHz, 5.1 Ghz, 5.5 GHz, 5.8 GHz |
| FM radio | Not supported |
| Share network via Bluetooth | Supported |
17. Mobile network |
|
| LTE antennas | 4 × 4 MIMO: Bands 1/3/4/7/38/40/41; 2 × 2 MIMO: Other bands |
| LTE RF technology | Supports 4 × 4MIMO antenna technology/ HO RxD |
| VoLTE | Supported |
| 5G network mode (dual mode/single mode) | SA/NSA dual mode |
| Network mode | GSM, WCDMA, TD-LTE, LTE, FDD, and NR |
| Data service | GPRS, EDGE, HSPA+, WCDMA, TD-LTE, LTE FDD, NR |
| Dual SIM | A non-CDMA card can be used as a default data card. |
| Frequency band (SIM cards 1 and 2) | SIM card 1: 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/2/4/5/6/8/19 4G: TD-LTE bands 38/39/40/41 (194 MHz) 4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28 5G: n1/n3/n5/n7/n8/n28/n38/n40/n41/n77/n78 SIM card 2: 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/2/4/5/6/8/19 4G: TD-LTE bands 38/39/40/41 (194 MHz) 4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28 |
| 5G network | Supported |
| 4G+ network | Supported |
| 4G network | 4G: TD-LTE bands 38/39/40/41 (194 MHz) 4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28 |
| 3G network | 3G: UMTS(WCDMA) bands 1/2/4/5/6/8/19 |
| 2G network | 2G: GSM 850/900/1800/1900 MHz |
| Supported frequency bands | None |
| 5G uplink/downlink rate | 5G SA Uplink:625Mbps 5G SA Downlink:4.7Gbps 5G NSA Uplink:700Mbps 5G NSA Downlink:5.0Gbps |
| 4G uplink/downlink rate | Uplink: 150Mbps Downlink: 1200Mbps |
| Link boost | High-speed rail mode and elevator mode. |
18. SIM card |
|
| SIM card type and size | Nano-USIM card |
| SIM card tray type and material | 2-slot alloy tray for 2 cards |
| Remarks on single/dual cards | India/Singapore/Pakistan:Dual cards |
19. Buttons and connectors |
|
| Audio jack | Type-C |
| Data port | USB Type C |
| Transfer protocol (USB) | USB2.0 |
| Pins (USB) | 16 |
| Navigation buttons | No physical navigation buttons. Supports on-screen virtual navigation buttons and navigation gestures. |
20. Positioning |
|
| Satellite positioning | Built-in GPS, A-GPS, BeiDou Navigation Satellite System, GLONASS, and Galileo positioning systems |
| Dual-frequency dual-antenna positioning | Support GPS; L1, GALILEO: E1, BeiDou: B11 |
| OTHER | Support AGPS：WLAN、celluar network Support location：Electronic compass |
| Map apps | Google Maps and other third-party map apps |
| Dual-frequency GPS | Only supports single-frequency GPS |
21. Fingerprint & face recognition |
|
| Fingerprint unlock time | When the screen is off：402.67ms When the screen is on：334.67ms |
| Face unlock time | 550.67 ms When the screen is off: 499.67 ms When the screen is on:456.33 ms |
| Fingerprint | In-display fingerprint sensor |
| Fingerprint payment | Supports WeChat Pay and Alipay |
| Face recognition unlock | Supported |
| Face recognition payment | Not supported |
22. Sensors |
|
| Sensor type | Geomagnetic sensor,color temperature sensor,proximity sensor,optical sensor,accelerometer,gravity sensor,gyroscope,pedometer |
| Infrared blaster | Not supported |
23. Battery & charging |
|
| Battery capacity | 2 × 2200 mAh/17.02 Wh (Rated) 2 × 2250 mAh/17.41 Wh (Typical) Equivalent to 4500 mAh |
| Suitable temperature range | 15℃-35℃ 59℉-95°F" |
| Adapter model/parameters | I/P: 100-240V; 50/60 Hz, 1.8A; O/P: 5VDC 2A or 10VDC 6.5A Max for SuperVOOC Flash Charge |
| Standard charger power | Max power, 65W(10V/6.5) |
| Energy density | 652 Wh/L |
| Maximum audio playback time | 79h |
| Maximum call time | 30h |
| Maximum video playback time | 22h |
| Maximum standby time | 530h |
| Maximum standby time (4G) | 388h |
| Maximum standby time (3G) | 338h |
| Maximum standby time (2G) | 374h |
| Maximum audio playback time (through speaker at medium volume) | 36h |
| Maximum video playback time (through speaker at medium volume) | 21 hours |
| Fast charging | SuperVOOC 2.0, SuperVOOC, VOOC 3.0, PD (9V/2A), QC (9V/2A) |
| Flash charging | Supported |
| Wireless charging | Not supported |
| Charger model | VCA7JACH VCA7HACH |
| Reverse charging | OTG Reverse charging |
| Breathing light during charging | None |
| Time required for a full charge | Minimum: 37minutes |
| Battery model | BLP855 lithium-ion polymer battery |
24. Other hardware |
|
| SAR | Head SAR:0.894 W/kg Body SAR:0.981W/kg |
| Sound effects | Dolby effects(supported by both the speaker and earphones) |
| Hi-Fi | Not supported |
| Hi-Fi chip (if Hi-Fi is supported) | Not supported |
| Standalone or integrated audio decoder chip | MT6359 Integrated decoder chip |
| Audio certification | Dolby |
| Vibration motor | X-axis linear motor |
| Waterproof IP rating | IP54 rated ingress protection |
| Heat dissipation mechanism | Graphite sheet + VC soaking condensing copper plate + high thermal conductivity aluminum middle frame + thermal condensing grease + copper foil thermal conductive material |
| Top ports and holes (from left to right) | Proximity sensor, MIC |
| Bottom ports and holes (from left to right) | SIM card,microphone,USB port,speaker |
| Button backlight | None |
| Expansion card | Not supported |
25. Speaker/Microphone |
|
| Number of speakers | One speaker (1115 X50) at the bottom right with the screen facing upward |
| Number of microphones | Double MIC |
| Ultra-linear/Super-dynamic/Super-balanced speakers | Super-linear speaker |
| Noise cancellation | Two-mic noise cancellation |
26. Operating environment |
|
| Operating temperature | 0°C-35°C (32°F-95°F) |
| Storage temperature | -20°C-45°C (-4°F-113°F) |
| Relative humidity | A moisture of 5%–95% under a non-condensable state |
| Operating altitude | Up to 3,000 meters (10,000 feet) according to testing data |
27. Phone accessories |
|
| Package contents | Phone x1 USB cable x 1 Earphone x 1 Charger x1 Protective case x1 SIM ejector tool x1 Quick start guide x 1 Safety guide x 1 |
| SIM ejector tool | Yes |
| Material of protective case | TPU |
| Style of protective case | Elastic and transparent |
| Screen protector | Yes |
| USB cable length and color | 1-meter white cable |
| TF card | No |
| Plastic film sealing | Yes |
28. Earphone |
|
| Earphone jack | Type-C earphone |
29. Earphones (Indian standards for the Indian market) |
|
| Speaker size | Diameter: 14.2 mm |
| Rated power | 3 mW |
| Sensitivity | 101 ± 3dB |
| Impedance of earphones | 56 Ω ± 15% |
| Model of earphones | MH147 (other countries: Singapore, Pakistan) MH148 (India) |
| Earphone standards | Type-C earphone |
| Frequency range | 20Hz-20kHz |
| Push-to-talk on earphones | Supported |
| Wake voice assistant | N/A |
| Volume control | Not supported |
| Switching songs | Built-in music player: Double-click or triple-click to switch to the next song. Triple-click to switch to the previous song is not supported. Third-party music player: Supports double-click to switch to the next song and triple-click to switch to the previous song. |
| In-ear monitoring | Supported |
30. Packaging specifications (for regions inside the Chinese Mainland) |
|
| SAR & certificate number | N/A |
31. Packaging specifications (for regions outside the Chinese mainland) |
|
| Region 1 | India |
| SAR & certificate number | Head SAR:1.17W/kg Body SAR:1.03W/Kg |
| Region 2 | Singapore |
| SAR & certificate number | Head SAR:0.894 W/kg Body SAR:0.981W/kg |
| Region 3 | Pakistan |
| SAR & certificate number | <2.0 W/kg |
| Frequency bands | GSM: 850/900/1800/1900 MHz WCDMA: Bands 1/2/4/5/6/8/19 LTE TDD: Bands 38/39/40/41 (194 MHz) LTE FDD: Bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28 5G NR: n1/n3/n5/n7/n8/n28/n38/n40/n41/n77/n78 |
| Model name | CPH2249 |
| Battery voltage and charging current | 7.74V 6.5A |
| Camera parameters | Rear camera: 64MP + 8MP + 2MP + 2MP Front camera: 32MP |
| Hi-Res | Not supported |
| Water resistance | IP54 rated ingress protection |
| Laser detection auto focus (LDAF) | Not supported |
Related Articles
Notice about the disappearance of number badges on Reno6 5G/Reno6 Pro 5G's Facebook, Instagram, Messenger, Facebook Lite, and WhatsApp
Views: 7 • Likes: 4
Read Article
