F15&A91 Specification Parameter List
Views: 1 • Likes: 1
Name
| Marketing name | India and South Asia: F15, other regions: A91 |
| Model | CPH2001（19350/19352） CPH2063(19353)(Indian) CPH2021（Carria）(19355) |
| Marketing date | 2020-01-23 |
Screen
| Screen size | 6.4 inch 16.2cm |
| Screen proportion | 20:9 |
| Screen texture | AMOLED |
| Upper frame | 2.32mm |
| Left & Right frame | 1.67mm |
| Lower frame | 5.2mm |
| Screen ratio | 90.7% |
| Screen resolution | 2400*1080 |
| Color gamut | 100%NTSC |
| 104%NTSC DCI-P3 | |
| Screen PPI | 408ppi |
| Color contrast | 1000000:1 |
| Color saturation | Typical value100% |
| Screen color | 16MP |
| Maximum screen brightness | Typical value430nit |
| Type of touch panel | Capacitive screen, multi-touch |
| Touch panel technology | on-cell |
| Glass type of touch panel | Corning Gorilla Glass 5 |
| Multi-touch | 10 |
| Screen protector film type | SRF material HD film |
| Oleophobic layer | Yes |
| Oleophobic layer on film | Yes |
| Screen refresh rate | 60Hz |
| Touch sampling rate | 135HZ |
| TÜV Rheinland eye comfort certification | yes |
| No stroboscopic eye protection | support |
Network
| Attenna | SIMO |
| VoLTE | Support VoLTE |
| Operator support VoLTE | / |
| Link boost | not support |
| 4G data rate | Uplink: 75Mbps (Carrier version 150Mbps); Downlink: 150Mbps (Carrier version 300Mbps) |
| Network mode | GSM，WCDMA，TD-LTE，LTE FDD |
| Network data | GPRS，EDGE，HSPA+，WCDMA，TD-LTE，LTE FDD |
| Network Type(Chinese mainland version only) | / |
| 5G | Asia Pacific Lite： GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/8 TD-LTE: Bands 38/40/41
Asia Pacific Edition：
GSM: 850/900/1800/1900MHzWCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8 TD-LTE: Bands 38/40/41 Taiwan GSM: 850/900/1800/1900MHz WCDMA: 850/900/1700/1900/2100MHz FDD-LTE: 700/800/850/900/1700/1800/1900/2100/2600MHz TD-LTE: 1900/2000/2300/2496-2690/2570-2620MHz |
| 4G+network | |
| 4G network | |
| 3G network | |
| 2G network | |
| Network band | |
| Sim1 | |
| 2G | |
| 3G | |
| 4G | |
| 4G+ | |
| 5G | |
| Sim2 | |
| 2G | |
| 3G | |
| 4G | |
| 4G+ | |
| 5G | |
| SIM card type | Nano-SIM card / Nano-USIM card |
| SIM tray material | 3 card slots |

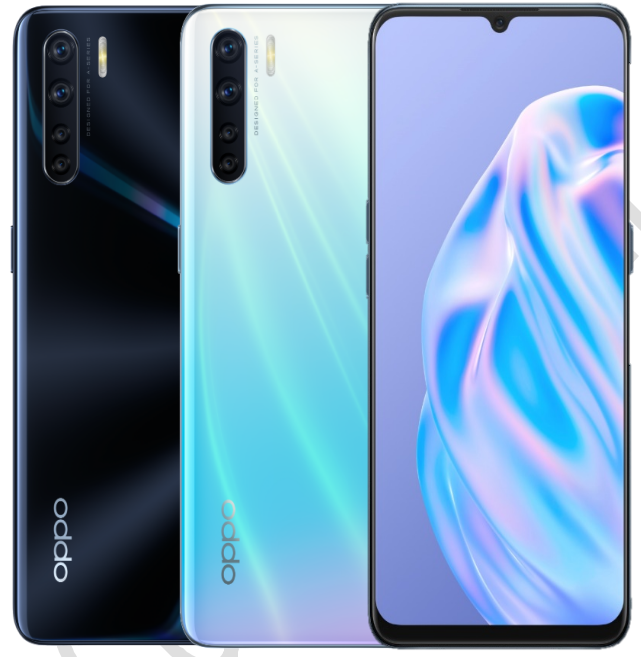

| Color | Lightening Black Unicorn White Blazing Blue |
| Size | 160.2mm×73.3mm×7.9mm |
| Weight | About 172g |
System
| Android version | Android 9 |
| ColorOS version | ColorOS 6.1.2 |
| Split screen | support |
| Picture in picture | not support |
| Built-in APPs (Three part) | Google Suite, Google News, Google Pay, Gboard, Facebook, Facebook Stub, FB Installer, FB Manager, FBNS, OPPO self-developed browser, Opera browser (non-white card), Google Chrome browser, Opera News, WPS Office, Amazon, DailyHunt, Gaana, Helo, Lazada, Webnovel, Babe, Baca Plus, JT Express, VN Ngay Nay, Zalo, Zing MP3, Bao Moi, Yandex App, Yandex Browser, iQiyi, Trip.com, Aqua Mail, Office Suite, Daraz / Shop |
| Apps with game boost（popular games） | The highest quality of PUBG Mobile is HD, the highest frame rate is 30 frames The highest quality of Arena of Valor is super high, with a maximum frame rate of 60 frames. The video supports the King's moment / free screen recording, border breakout recording and HD recording. |
| Game support | aov Picture quality: Extreme; High frame rate mode: On (60 frames); Support legendary moments and free screen recording; Support HD recording; pubg Picture quality: HD; Frame number setting: High (30 frames); |
| App can be deleted | Calculator, compass, notes, etc. |
| App can't be deleted | Calendar, Clock, Photo Album, File Manager, etc. |
| Original pictures | no |
| Original music | no |
| Google lens | Yes |
| Data backup | Yes |
| Bulit-in browser | Chrome / Opera / OPPO browser |
| Yes | |
| Oshare( Indian phone numbers' recognition） | Support OPPO Mutual communication, but there is no phone number recognition for India |
| Other features | Music Party |
| Apps lock | Yes |
| Office tools | OfficeSuite |
| Firewall | Support Call/Message Firewall |
| Files Zip/Unzip | Yes |
| File encryption | Yes |
Cpu
| CPU platform | MTK MT6771V |
| Baseband Strcuture | 4 (Cortex-A73) +4 small core (Cortex-A53) 12nm process |
| CPU frequency | 4*2.1GHz + 4*2.0GHz |
| CPU core | 8 core |
| Processor bits | 64-bit |
| GPU Model | ARM Mali G72 MP3 900MHz |
| Process | 12nm |
| AI | NA |
| RAM | 4GB/8GB |
| ROM | 128GB |
| RAM technology | LPDDR 4x |
| Number of RAM channels | 2 |
| ROM technology | UFS2.1 |
| Number of ROM channels | NA |
| External memory | support |
| Supported memory card formats | Max to 256GB Micro SD |
| Program moved to memory card | support |
| OTG | support |
| OTG storage format | FAT12、FAT16 、FAT32、NTFS、EXFAT |
| Maximum Support for OTG storage | 256GB |
| Other | no |
Endurance
| Battery capacity | 3935mAh (rated value) |
| 4025mAh (typical value) | |
| Battery mode | BLP765 polymer lithium ion battery |
| Energy density | 15.57Wh (typical) |
| Theoretical audio playing duration | 101Hours |
| Theoretical calling duration | Max GSM: 36hours;WCDMA:26hours |
| Video playing duration(theoretical ) | 10Hours |
| Theoretical standby duration | Max 362Hours |
| Charging | Supports VOOC 3.0 |
| Charging breathing light | no |
| Wireless charging | not support |
| Full charge duration | About 72 minutes |
| Flash charging suitable temperature | 15℃-35℃ |
| Standard charger model | AK779GB/VC54JAUH/VC54JCUH/VC54JAEH/VC54JCEH/VC54JAYH/VC54JCYH/VC54GAPH/VC54CAED/VC54JCEH/VC54JCAH India：OP52CCIN/OP52GCIN/OP52GCIH/OP52JCIH/OP52CCIH/VC54GCIN |
| Reverse charging | support |
| Standard charger power | 20W |
Other Hardware
| Middle frame material | Plastic + aluminum alloy inserts |
| Screen/back cover including frame | no |
| Heat dissipation | Graphite sheet |
| Back cover material | plastic |
| Back cover process | 3D composite sheet |
| Back cover film | 3D Hot Bending + Shower Coating Highlight |
| oleophobic layer of back cover | no |
| Speaker | One / Front right lower part |
| Type of speaker | no |
| Dual-MIC noise suppression | 2mic noise reduction |
| USB jack | TYPE-C |
| Pin number (USB) | 14 |
| Navigation keys | No navigation buttons, support screen virtual buttons for gesture navigation operation |
| Earphone jack | 3.5mm headphone |
| Fingerprint | Under-Screen fingerprint |
| Fingerprint unlock time | 300ms |
| Face recognition | support |
| Face unlock time | 400ms |
| Fingerprint payment (payment App) | WeChat payment, Alipay payment, etc. |
| Facial payment | not support |
| Vibration motor | Rotor motor |
| Earphone model | MH156 |
| Earphone standard | American Standard |
| Speaker size of earphone | 67*19.7*5.07 mm |
| Rated power of earphone | 5mW |
| Frequency range of earphone | 20Hz-20kHz |
| Earphone sensitivity | 110±1.5dB |
| Earphone resistance | 54 ohms |
| Wire control of earphone | support |
| Wake-up voice assistant via earphone | Does not support awakening the voice assistant through the headset MIC, supports long press the button on the headset MIC shell to call up the voice assistant |
| Volume control via earphone | support |
| Change songs via earphone | Support: Double-click the button on the MIC case to switch to the next song |
| Earphone monitor | support |
| Earphone model (India Standard) | MH157 |
| Earphone standard | Mark |
| Speaker size of earphone | 67*19.7*5.07 mm |
| Rated power of earphone | 5mW |
| Frequency range of earphone | 20Hz-20kHz |
| Earphone sensitivity | 110±1.5dB |
| Earphone resistance | 54 ohms |
| Wire control of earphone | support |
| Wake-up voice assistant via earphone | Does not support awakening the voice assistant through the headset MIC, supports long press the button on the headset MIC shell to call up the voice assistant |
| Volume control via earphone | not support |
| Change songs via earphone | Support: Double-click the button on the MIC case to switch to the next song |
| Earphone monitor | support |
Front Camera
| Camera structure | Water-drop screen |
| Sensor type | CMOS (4 in 1 rear main camera, 4 in 1 front camera, 4 in 1 wide angle camera) |
| Pixel | 16MP |
| Sensor size/pixel size | 1/3.1'、1.0um |
| Focal length | 3.54mm |
| Wide angle of front lens | 73° |
| Flash | not support |
| Soft light | not support |
| Flashlight aperture | f／2.0 |
| Lens structure | 5P lens |
| Focusing type | focus |
| Optical focusing | not support |
| Stabilizer | not support |
| Lens glass material | GG5, Corning Gorilla Glass |
Rear Camera
| Pixel | 48MP + 8MP + 2MP + 2MP |
| Sensor sizes/pixel size | Main camera 1 / 2.25 ', 0.8um Wide angle camera 1/4', 1.12um 2M 1/5 ', 1.75um |
| Sensor type | CMOS |
| Optical focusing | not support |
| Zoom mode | Main camera: 10x digital zoom Wide angle camera: 2x digital zoom |
| Aperture | Main camera: (f / 1.79), Wide angle camera: (f / 2.25), Dual black and white camera (f / 2.4) |
| Focal length | Main camera: 4.71mm, Wide angle camera: 1.66mm 2M: 1.77mm |
| Wide angle | Main camera: 79 degrees, Wide angle camera : 119 degrees, Dual black and white camera: 88.8 degrees |
| Flash | Rear LED Monochrome Temperature Single Light |
| Lens structure | Main camera: 6p, Wide angle camera: 5p, Dual black and white camera: 3p |
| Focusing method | CDAF + PDAF |
| Consecutive shooting | 20 |
| Macro lens | Rear macro 3cm |
| Stabilizer | Electronic image stabilization |
| Lens glass material | GG5, Corning Gorilla Glass |
| Camera composition | From top to bottom, 8MP wide-angle and macro + 48MP main camera + 2MP black and white camera + 2MP black and white camera |
| Photograph mode | PHOTO, VIDEO,EXPERT, PANO, PORTRAIT, NIGHT, TIME-LAPSE, SLO-MO, etc. |
| Characteristic function for photograph | Filter, Auto-enhance, Crop &Rotate, Stickers, Doodle,Beauty, Text, Mosaic, Blur, Eraser Pen |
| Photo Size (front camera) | Front: 4608x3456 |
| Photo Size (rear camera) | Post: 8000x6000 (ultra-clear mode) 4000x3000 (normal mode) |
| Video | The rear camera supports up to 1080P @ 30fps, 720P @ 30fps; Front camera is 1080P / 720P @ 30fps |
| Rear camera default 1080P, 30 frames / second, front camera default 720P, 30 frames / second | |
| Video format | mp4 |
| Fill light for shooting video | support |
| Slow-motion video | 1080P @120fps、720P@240fps； |
| Stabilizer | support |
| Ultra-clear mode | 48MP |
| Shooting mothod | Touch screen shooting / Volume key shooting / Gesture shooting / Screen virtual button shooting |
| AI scene recognition | support |
Basic Function
| Single channel, dual channel | Single channel |
| Volte | Support VoLTE |
| Voice call solution | VoLTE if VoLTE is enabled, CSFB if not enabled |
| Call history limit | According to the size of the phone storage space |
| Video call | Support (depending on the operator) |
| Earphone answering | support |
| Call recording | support |
| Recording file format | Mp3 |
| Recording save location | File Manager-Phone Storage-All-Recordings |
| Automatic call recording | support |
| Fast dial | support |
| Caller avatar | support |
| Call background | support |
| SIM card contact import and export | support |
| Contacts Capacity | According to the size of the phone storage space |
| Blacklist limit of contact | According to the size of the phone storage space |
| Contact list format | vcard csv |
| Contact grouping | support |
| Group customization | support |
| SMS group sending limit | 200 |
| SMS blacklist limit | According to the size of the phone storage space |
| SMS capacity | According to the size of the phone storage space |
| SMS words limit | 1530 English characters (Chinese will be less than 1530 due to encoding reasons), if it exceeds, it will be automatically converted into MMS |
| Single MMS capacity | 300K |
| Timing Message send | According to the size of the phone storage space |
| Import/Export Messages | support |
| Storage limit of MMS | According to the size of the phone storage space |
Entertainment Function
| Video format | MP4/3GP/ASF/AVI/FLV/M2TS/MKV/MPG/TS/WEBM/WMV |
| Sound effect | Dirac sound |
| Hi-Fi | not support |
| Audio decoding chip | no |
| Audio format | AAC/APE/FLAC/AMR/MID/MP3/OGG/WAV/WMA/MKA |
| Audio certification standard | no |
| Browsefile formats | txt，pdf，word，excel，ppt |
| Image format | JPG/BMP/PNG/GIF/HEIC |
Business Function
/Other Function
| Bluetooth version | Bluetooth 4.2 |
| Bluetooth codec | SBC, APTX, APTX HD, LDAC |
| Bluetooth profile | HFP HSP A2DP AVRCP HID PAN OPP MAP PBAP GATT |
| WLAN | WLAN 2.4G， WLAN 5.1G ， WLAN 5.8G , WLAN Display |
| No MIMO | |
| WLAN protocol | 802.11a/b/g/n/ac |
| Hotspot | support |
| Limit number of connction of hotspot | Hotspot supports up to 10 |
| WLAN Display | support |
| NFC | Carrier version support |
| USB | USB 2.0 |
| GPS | Built-in GPS, support A-GPS, Beidou, Glonass |
| Dual-frequency GPS | not support |
| Map software | support |
| Sensor | Geomagnetic sensor, light sensor, proximity sensor, acceleration sensor, gravity sensor, gyroscope, support step counting function |
| Infrared remote control | no |
| Window-view mode | not support |
| Record Format | mp3/amr |
| Weather widget | support |
| Clock widget | support |
| Music widget | support |
| Three part software widget | support |
| FM | not support |
| Breathing light | Does not support charging Breathing lights |
| Gesture operation | Screen-off Gestures, Smart Call, Raise toTurn On Screen, 3-Finger Screenshot |
| Pedometer | support |
| Split Screen | support |
| Eye protection mode | support |
| Clone App | support |
| Banner call | support |
| Game boost | support |
| Fingerprint reset password | support |
| Application encryption method | Digital password, pattern password, fingerprint encryption, face password |
| Power button to end the call | support |
| Kids Space | support |
| TXT Input | support |
| Support HD | support |
| Ringtone Format | MP3/AMR/APE/OGG/FLAC/WAV/MIDI/WMA |
| Webpage Video Play | support |
| World Time | support |
| Dual-Wi-Fi | not support |
| Water proof | no |
| SAR | Multinational SAR values: 1.49W / kg (head) 1.49W / kg (body) |
| Voice changer in game | support |
| HDMI screening | not support |
| OSIE ultra clear visual effect | not support |
| Flashlight aperture | support |
| Lock screen clock | support |
| Lock screen clock | not support |
| OPPO Share | support |
| E-compass | support |
| Mobile High-Definition Link (MHL) | not support |
| E-book | support |
| Screen recording | support |
| Background freeze (Pure background) | support |
Package List
| Packing list | Headphone x1 |
| Headset x1 | |
| USB cable x1 | |
| Adapter x1 | |
| SIM card pin x1 | |
| Protective case x1 | |
| Quick Guide x1 | |
| Warranty card x1 | |
| SIM card pin | Yes |
| Protective cover material | TPU |
| Protective shell soft/hard/transparent | Soft shell, transparent |
| Protective Film(Screen) | Yes |
| Charging cable length, color | 1m white |
| TF card | no |
| Plastic seal | Yes |
