Reno3 Pro&Find X2 Neo Parameter List (5G Version)
Content Description

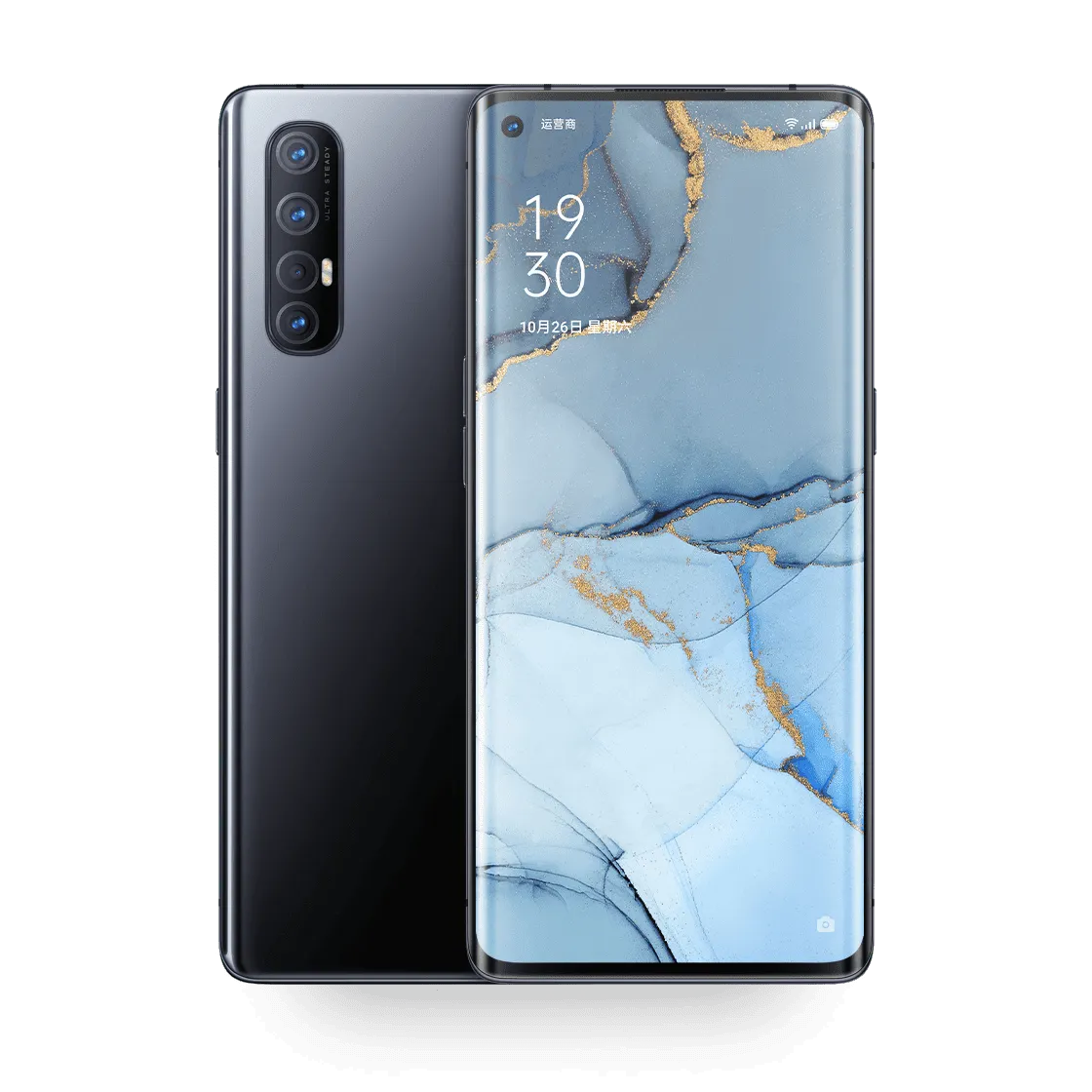

Parameter List for Reno3 Pro&Find X2 Neo (5G version)Name
| Marketing Name |
Reno3 Pro 5G(HK/RO) |
| Model |
CPH2009 |
Screen
| Screen size |
6.5-inch |
| Screen proportion |
20:9 |
| Screen texture |
AMOLED |
| Upper frame |
2.25mm |
| Left & Right frame |
1.65mm |
| Lower frame |
3.15mm |
| Screen ratio |
AA: 92.1% |
| Screen resolution |
2400*1080 |
| Screen PPI |
402ppi |
| Color contrast |
5000000:1（max） |
| Color saturation |
Typical value 97% |
| Screen color |
16Million |
| Maximum screen brightness |
Normal 500nit(typical value)/ HBM 800nit(typical value) |
| Type of touch panel |
Capacity screen |
| Touch panel technology |
Full fit |
| Glass type of touch panel |
Corning Gorilla Glass 5 |
| Multi-touch |
10 |
| Screen protector film type |
3D HD film |
| Oleophobic layer |
Yes |
| Oleophobic layer on film |
Yes |
| Screen refresh rate |
90Hz |
| Touch sampling rate |
180Hz |
| TÜV Rheinland eye comfort certification |
Support |
| No stroboscopic eye protection |
Support |
Network
| Attenna |
Built-in antenna |
| VoLTE |
Support |
| Operator support VoLTE |
Australia: Telstra, Vodafone, Optus-Postpaid, Optus - Prepaid or Open Channal |
| Link boost |
Support |
| 4G data rate |
UL 150Mbps；DL 1200Mbps |
| Network mode |
GSM，WCDMA，TD-LTE，LTE FDD, NR |
| Network data |
GPRS，EDGE，HSPA+，WCDMA，TD-LTE，LTE FDD, NR |
| 5G |
Support |
| 4G+network |
Support |
| 4G network |
TD-LTE，LTE FDD |
| 3G network |
WCDMA |
| 2G network |
GSM |
| Frequency band |
support NSA mode only |
| 4G+: UPLINK |
|
| 4G+: DOWNLINK |
|
| 4G: LTE FDD bands 1/2/3/4/5/7/8/12/17/18/19/20/26/28/32/66 |
|
| 4G: TD-LTE bands 38/39/40/41 |
|
| 3G: WCDMA bands 1/2/4/5/6/8/19 |
|
| 2G: GSM 850/900/1800/1900MHz |
| Appearance |
Color |
Starry Blue/Moonlight Black |
| Size |
159.4x72.4x7.7mm |
|
| Weight |
About 171g |
|
| Material and Process |
Middle frame material |
Aluminum alloy |
| Heat dissipation |
VC/graphite Sheet/copper foil heat dissipation |
|
| Back cover material |
Corning Gorilla Glass 5 |
|
| Back cover process |
AG/High light |
|
| Back cover film |
No |
|
| oleophobic layer of back cover |
Yes |
System
| Android version |
Android10 |
| ColorOS version |
ColorOS 7 |
| Split screen |
Support |
| Picture in picture |
Support |
| Built-in APPs (Three part) |
Google Suite (all regions) |
| Game support |
Support |
| App can be deleted |
RU (Browser,Яндекс), |
| App can't be deleted |
Calendar, Clock, Album, File Management, FileInfo, Weather Service, Private Safe, Assistive Ball, Music, After-sales Service |
| Original pictures |
No |
| Original music |
No |
| Data backup |
Support |
| Bulit-in browser |
Opera (all regions), Google Chrome (all regions), Yandex Browser (Russia) |
| |
Support |
| Oshare( Indian phone numbers' recognition） |
Support |
| Other features |
Breeno intelligent assistant | I/O foreground priority performance optimization supported | optimized touch response | deep memory compression | RAM memory fragmentation optimization | three-finger screenshot | Eye Caring mode | turning off automatic brightness supported | game network acceleration supported | dynamic wallpaper and display | screen clock display | night mode |
| Apps lock |
Support |
| Office tools |
WPS |
| Firewall |
Support |
| Files Zip/Unzip |
Support |
| File encryption |
Support |
Cpu
| CPU platform |
SDM765G |
| Baseband Strcuture |
ARM cortex A76 + cortex A55 |
| CPU frequency |
2.4Ghz (max) |
| CPU core |
8 cores |
| Processor bits |
64 |
| GPU Model |
Qualcomm Adreno GPU 620 |
| Process |
7nm |
| AI |
Support |
| RAM & ROM capacity |
12GB+256GB |
| RAM technology |
LPDDR4X |
| Number of RAM channels |
Dual channels |
| ROM technology |
UFS2.1 |
| Number of ROM channels |
Dual channels |
| External memory |
Not support |
| Supported memory card formats |
Not support |
| Program moved to memory card |
Not support |
| OTG |
Support |
| OTG storage format |
FAT/exfat/ntfs |
| Maximum Support for OTG storage |
2TB |
Endurance
| Battery |
Battery capacity |
3935 mAh (rated) |
| 4025 mAh (typical) |
||
| Battery mode |
BLP755 polymer lithium ion battery |
|
| Energy density |
685wh/L |
|
| Theoretical audio playing duration |
23H |
|
| Theoretical calling duration |
31H |
|
| Video playing duration(theoretical ) |
9H |
|
| Theoretical standby duration |
360H |
|
| Charging |
Charging |
5V6A VOOC |
| Charging breathing light |
Not support |
|
| Wireless charging |
Not support |
|
| Full charge duration |
About 60 mins |
|
| Flash charging suitable temperature |
15℃—35℃ |
|
| Standard charger model |
Support |
|
| Reverse charging |
Support |
|
| Standard charger power |
30W |
Other Hardware
| Sensor |
Sensor |
Geomagnetic sensor, Gap light sensor, gap proximity sensor, accelerometer, gravity sensor, gyroscope, step recording function supported |
| Infrared remote control |
Not support |
|
| Speaker/microphone |
Speaker |
2 |
| Type of speaker |
Super Linear Speaker |
|
| Dual-MIC noise suppression |
Dual mic noise reduction |
|
| Keys and connectors |
USB jack |
Type-C |
| Pin number (USB) |
14 |
|
| Navigation keys |
Yes |
|
| Earphone jack |
Type-C |
|
| Fingerprint and face recognition |
Fingerprint |
Ultra-thin screen fingerprint |
| Fingerprint unlock time |
380ms |
|
| Face recognition |
Support |
|
| Face unlock time |
450ms |
|
| Fingerprint payment (payment App) |
Support |
|
| Facial payment |
Not support |
|
| Vibration motor |
Vibration motor |
Support |
Front Camera
| Camera structure |
Puch-hole camera |
| Sensor type |
CMOS |
| Pixel |
32M |
| Sensor size/pixel size |
0.8um |
| Focal length |
3.74mm |
| Wide angle of front lens |
80.4° |
| Flash |
No |
| Soft light |
No |
| Flashlight aperture |
f／2.4 |
| Lens structure |
5P |
| Focusing type |
FF |
| Optical focusing |
No |
| Stabilizer |
No |
Rear Camera
| Pixel |
Specifications: 48 MP + 13 MP + 8 MP + 2 MP (Quad camera) |
| Sensor sizes/pixel size |
0.8um+1.0um+1.4um+1.75um |
| Sensor type |
CMOS |
| Optical focusing |
Support |
| Zoom mode |
Hybrid zoom |
| Aperture |
F1.7+F2.4+F2.2+F2.4 |
| Focal length |
4.77mm+6.3mm+2.13m+1.77mmm |
| Wide angle |
79.4°+44.5°+115°+88.8° |
| Flash |
Support |
| Lens structure |
6P+5P+5P+3P |
| Focusing method |
PDAF+CDAF |
| Consecutive shooting |
20 frames |
| Macro lens |
Support |
| Stabilizer |
OIS |
| Lens glass material |
Grorilla Glass 5 |
| Camera composition |
Wide-angle:800w |
| Photograph mode |
Photo, video, professional mode, panorama, portrait, night mode, time-lapse photography, slow motion, etc. |
| Photo Size (front camera) |
4928x6560 (max) |
| Photo Size (rear camera) |
Rear: 8000x6000(Ultra HD) 4000x3000 (Normal) |
| Video |
Rear: 4K@30fps、1080P @60fps/30fps、720P@60fps/30fps |
| Rear: 1080P@30fps(by default)，front: 720P@30fps(by default) |
|
| Video format |
MP4 |
| Fill light for shooting video |
Support |
| Slow-motion video |
Support |
| Stabilizer |
Support |
| Ultra-clear mode |
Support |
| Shooting mothod |
Touch screen shooting / Volume key shooting |
| AI scene recognition |
Grass, outdoor, text, night scene, etc. |
Basic Function
| SIM card |
SIM card type |
Nano-SIM |
| SIM tray material |
Aluminum alloy (single card) |
|
| Data Connection |
Bluetooth version |
Bluetooth 5.1 |
| Bluetooth codec |
SBC、AAC，aptX、aptX HD、LDAC，TWS+ |
|
| Bluetooth profile |
HFP HSP A2DP AVRCP HID PAN OPP MAP PBAP GATT |
|
| WLAN |
WLAN 2.4G， WLAN 5G , WLAN Display |
|
| 2*2 MIMO |
||
| WLAN protocol |
802.11a/b/g/n/ac |
|
| Hotspot |
Support |
|
| Limit number of connction of hotspot |
10 |
|
| WLAN Display |
Support |
|
| OTG |
Support |
|
| OTG storage format |
FAT/exfat/ntfs |
|
| Maximum support for OTG storage |
2TB |
|
| NFC |
eSE、HCE、UICC |
|
| USB |
USB 2.0 |
|
| GPS |
GPS |
Built-in GPS，A-GPS，Beidou，Glonass，GALILEO |
| Dual-frequency GPS |
Not support |
|
| Map software |
Google Map |
|
| Call |
Single channel, dual channel |
Single channel |
| Volte |
Support |
|
| Voice call solution |
VoLTE if VoLTE is enabled, and CSFB if VoLTE is not enabled |
|
| Call history limit |
3000 |
|
| Video call |
Support |
|
| Earphone answering |
Support |
|
| Call recording |
Europe not support(Other regions support) |
|
| Recording file format |
amr |
|
| Recording save location |
File management - Phone storage\Music\Recordings |
|
| Automatic call recording |
Europe not support(Other regions support) |
|
| Fast dial |
Support |
|
| Contact |
Caller avatar |
Support |
| Call background |
Support |
|
| SIM card contact import and export |
Support |
|
| Contacts Capacity |
According to the storage of phone |
|
| Blacklist limit of contact |
According to the storage of phone |
|
| Contact list format |
vcard csv |
|
| Contact grouping |
Support |
|
| Group customization |
Support |
|
| Message |
SMS group sending limit |
200 |
| SMS blacklist limit |
According to the storage of phone |
|
| SMS capacity |
According to the storage of phone |
|
| SMS words limit |
1530 English characters (Chinese, for encoding reasons, will be less than 1530), SMS exceeding the limit will automatically be converted to MMS |
|
| Single MMS capacity |
300 |
|
| Timing Message send |
Support |
|
| Import/Export Messages |
Support |
|
| Storage limit of MMS |
According to the storage of phone |
Entertainment Function
| Video format |
AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV |
| Sound effect |
Dolby Panorama |
| Hi-Fi |
Support |
| Audio decoding chip |
Independent audio decoding chip (WCD9385) |
| Audio format |
MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA |
| Audio certification standard |
Dolby, 3GPP |
| Browsefile formats |
txt. Word. Excel. ppt |
| Image format |
JPEG/PNG/GIF/BMP |
Other Function
| Window-view mode |
Support |
| Record Format |
mp3/amr |
| Weather widget |
Support |
| Clock widget |
Support |
| Music widget |
Support |
| Three part software widget |
Support |
| FM |
Not support |
| Breathing light |
Not support |
| Gesture operation |
Support |
| Pedometer |
Support |
| Split Screen |
Support |
| Eye protection mode |
Support |
| Clone App |
Support |
| Banner call |
Support |
| Game boost |
Not support |
| Fingerprint reset password |
Support |
| Application encryption method |
Support |
| Power button to end the call |
Support |
| Kids Space |
Support |
| TXT Input |
Gboard |
| Support HD |
AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV |
| Ringtone Format |
MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA |
| Webpage Video Play |
Support |
| World Time |
Support |
| Dual-Wi-Fi |
Support |
| Water proof |
IPX4 |
| SAR |
Head:0.825，Body: 1.292 |
| Voice changer in game |
Support |
| HDMI screening |
Not support |
| OSIE ultra clear visual effect |
Support |
| Flashlight |
Support |
| Lock screen clock |
Support |
| Hall Sensor/Window-view mode |
Not support |
| OPPO Share |
Support |
| E-compass |
Support |
| Mobile High-Definition Link (MHL) |
Not support |
| E-book |
Support |
| Screen recording |
Support |
| Background freeze (Pure background) |
Support |
Package List
| Accessories |
Packing list |
Phone x1 |
| Earphones x1 |
||
| Data cable x1 |
||
| Charger x1 |
||
| SIM-eject tool x1 |
||
| Case x1 |
||
| Quick Start Guide x1 |
||
| Warranty card x1 |
||
| SIM card pin |
Yes |
|
| Protective cover material |
TPU |
|
| Protective shell soft/hard/transparent |
Soft shell, transparent |
|
| Protective Film(Screen) |
Yes |
|
| Charging cable length, color |
1m |
|
| TF card |
No |
|
| Plastic seal |
Yes |
|
| Standard charger model |
VC56HAUH/VC56JAUH/VC56GAUH/VC56JAAH/VC56HAYH/VC56JAYH/VC56HAEH/VC56JAEH |
|
| Earphone |
Earphone model |
MH147 |
| Earphone standard |
Type-C |
|
| Speaker size of earphone |
14.2mm |
|
| Rated power of earphone |
5mW |
|
| Frequency range of earphone |
20-20KHz |
|
| Earphone sensitivity |
115±3dB (At 1kHz 1cm/1mW by IEC711+unleak jig)（0dB=20uPa=0.0002uBar） |
|
| Earphone resistance |
54 ohm |
|
| Wire control of earphone |
Support |
|
| Wake-up voice assistant via earphone |
It does not support waking up voice assistant through earphone's microphone, but supports long pressing of the button on the microphone shell to call up voice assistant |
|
| Volume control via earphone |
No |
|
| Change songs via earphone |
Support: double-click button on the microphone shell to switch to next song |
|
| Earphone monitor |
Support |
