1. Guidance
The purpose of this document is only to guide OPPO technicians to carry out maintenance service to OPPO products. The content shall be keep in confidential, only avail be able to OPPO authorized service centers, and cannot be provided to third parties without authorization. Please follow the regulations and the guidance for maintenance service. For any problems, please contact China HQ in time.
1.1 Warnings and Cautions
1.1.1 Warnings
1. Care must be taken on installation in vehicles fitted with electronic engine management systems and ABS (Anti–skid Braking Systems). Under certain fault conditions, emitted RF energy can affect their operation. If necessary, consult the vehicle dealer/manufacturer to determine the immunity of vehicle electronic systems to RF energy.
2. Phones must not be operated in areas likely to contain potentially explosive atmospheres, e.g. petrol stations (service stations), blasting areas etc.
3. Operation of any radio transmitting equipment, including cellular telephones, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device if you have any questions. Other electronic equipment may also be subject to interference
1.1.2 Cautions
1. Repair services and calibrations must be undertaken by qualified personnel only.
2. Use only approved components as specified in the parts list.
3. Ensure all components, modules screws and insulators are correctly re-fitted after servicing and alignment.
4. Electrostatic discharge is the main cause of damage to sensitive components of electronic products. Service centers must operate in accordance with OPPO's requirements for ESD protection. Ensure all work is carried out at an ESD workstation and that an ESD wristband is worn.
2. General Repair Information
1. Ensure all work is carried out at an ESD workstation and that an ESD wristband is worn before starting maintenance.
2. Wear ESD gloves to avoid oil stains and fingerprints.
3. Use protective films to protect the display, camera, camera lens to prevent dust and scratches.
4. Use a clean cloth, ESD brush and alcohol (Concentration above 95%) for appearance cleaning. Do not use other items (such as an eraser) for cleaning to prevent the protective layer from being scratched, which may lead to oxidation and corrosion.
5. Faulty welded mechanical parts (except shield cover and shield frame parts) can only be replaced and not repairable.
6. Use accessories provided by OPPO.
7. Check the contacts or solder joints of devices that may cause simple faults (e.g. soldered interfaces or switches). Re-weld if necessary (only for service centers where lead-free soldering is available) and clean the flux remaining after soldering.
8. Use the equipment provided by OPPO to test the phone (e.g. When the charging function of the device is abnormal, do use the original OPPO adapter to test to ensure the accuracy of the test results).
9. Fill in the fault phenomenon code and fault reason code according to the actual situation, and accurately enter the replacement material code in the CRM system (Refer to the Smart Phone Fault Reason Matching Code List if necessary).
10. For more information about products, please visit the company FTP server: ftp://ftpex.oppo.com:919/
3. Phone Structure Diagram
3.1 Product Appearance
As shown in Figure 3-1-1
3.2 Phone Structure Explosive View
As shown in Figure 3-2-1
Note：This table is used only for the name of the annotation but not for the preparation of materials. Please refer to the “Price list of Commonly-used Materials and Accessories” for the preparation.
4. Disassembly Steps
4.1 Disassembly Tools
4.2 Preparation
1. The phone must be powered off before disassembly.
2. Way to Power Off:
System Power Off: Press the power key then slide to power off.
Forced Power Off: Long press the volume “+” key and power key for about 8 seconds until the display is off.
4.3 Disassembly Steps
5.2 Assembly Steps
6. Calibration
6.1 Fingerprint optical calibration
6.1.1 Calibration Scenario
The following fingerprint calibration must be performed after disassembling or replacing any of the main board, fingerprint module, protective film, and screen cover assembly.
6.1.2 Calibration Tool

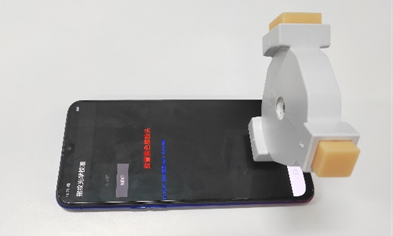

The calibration tool is shown in Figure 6.1.2-1:

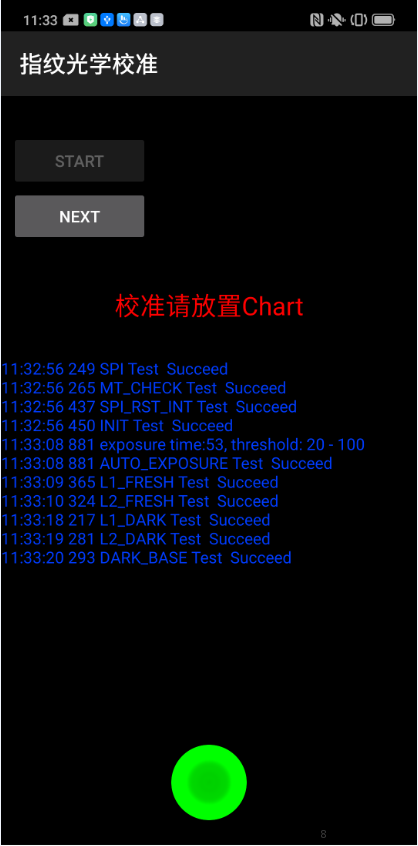

Figure 6.1.2-3
6.1.3 Calibration Method

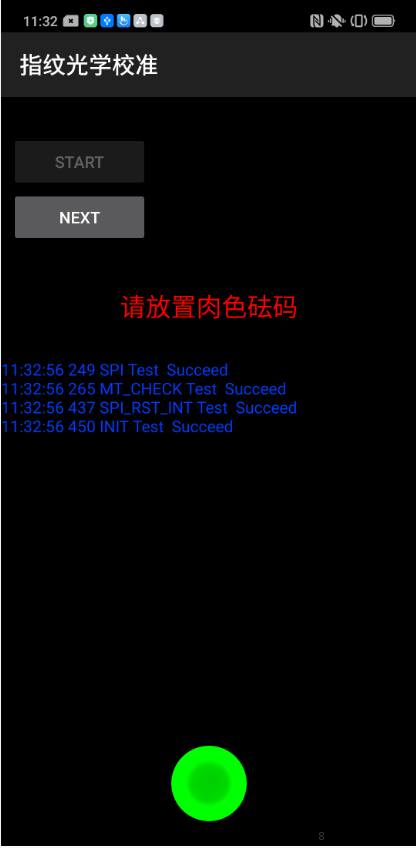

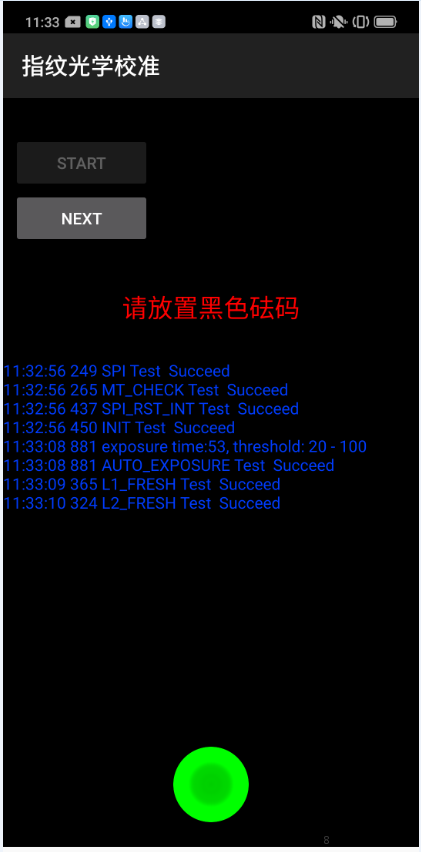

Calibration path： Enter *#899# in the dial interface>Aftersales Devices Calibration> Enter password “6776” >Infrared Proximity Calibration > Fingerprint calibration，Specific operations refer to calibration page hints:

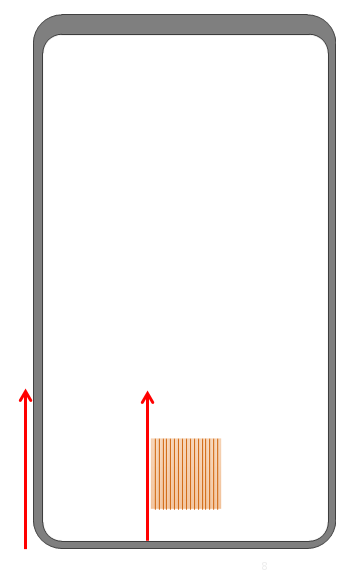

(1) The stripe direction of the yellow stripe rubber should follow the long side of the phone.
As shown on the Figure 6.1.3-1
6.2 Dual Camera Calibration
6.2.1 Calibration Scenario
1. When the portrait mode is poorly blurred, the after-sales service center needs to calibrate the phone.
2. All devices must be calibrated after the phone has disassembled, or the portrait mode will be poorly blurred.
6.2.2 Calibration Tool
After-sales calibration Chart,
As shown in Figure 6.2.2-1:
6.2.3 Calibration Method

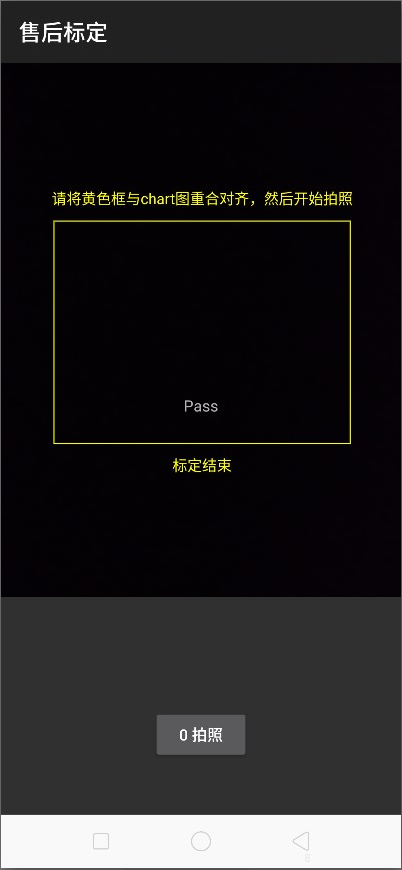

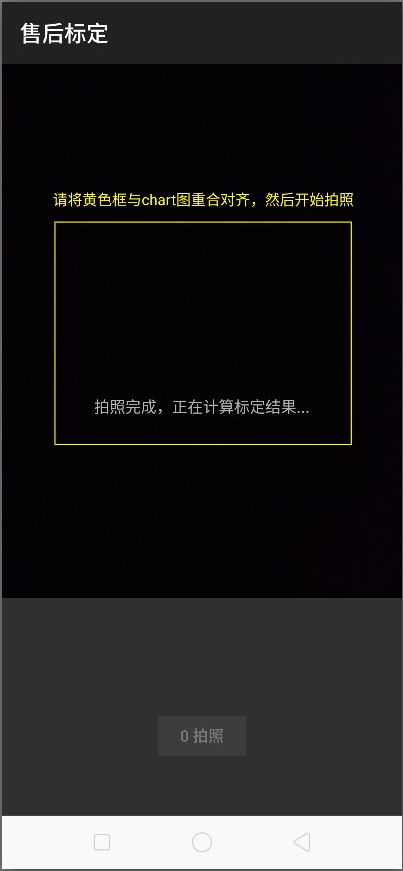

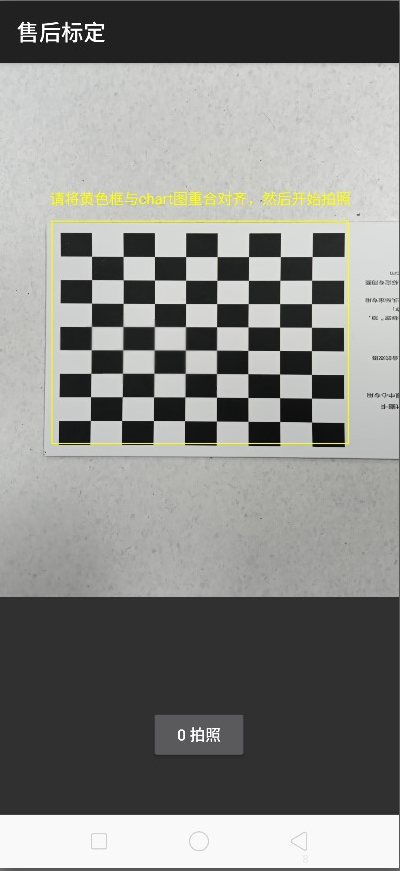

1. 1. Please align the yellow box with the edge of the chart, and then take a Photo. Then, do not operate the phone when the phone enters the computing interface until it displays “Pass” with the calibration completed.
Precautions：
1. If it shows “Fail 69” during calibration, the lens is too far from the chart;
2. If it shows “Fail 70” during calibration, the lens is not parallel to the chart;
3. If it shows “Fail 68” during calibration, the lens is too close from the chart;
6.2 Motor Hall Calibrate
6.3.1 Calibration Scenario
If there is a gap in the camera slider, poor smoothness or noises when sliding, first upgrade the phone to the latest software version and then perform Motor Hall calibration for the phone. If the slider is with the fault after Hall calibration, repair the related assembly for the phone.
6.3.2 Calibration Method
Step 1: Enter “*#899#” on the dial keypad to enter the engineering mode, then click “Motor Hall Calibration” and enter the password “6776” to enter the Motor Hall calibration interface.
Step 2: Confirm the default calibration parameters (Default Value for Reno: near: 40; far:15). After confirming, click “Start Calibrate”; if it displays “PASS” and automatically jump to the next interface, the slider is sound. If the slider is not fully raised or “FAIL” is displayed, the slider is defective.
Step 3: After the Motor Hall calibration test “PASS” and jumps to the “Drive Motor Test”, click the “Start Test”. If “PASS” is displayed, the next interface will be automatically jumped. If the slider is not fully raised or “FAIL” is displayed. ", then the hardware is defective.
Note: Try several times of Motor Hall calibration to confirm if the hardware is defective.
7. Function Test
7.1 Test Path
Dialing Interface>Enter*#899#>Enter automatic test； The "Confirm" dialog box will pop up after the test complete, if there is no problem choose “Pass”, otherwise choose “Fail”.
7.2 Test Requirements

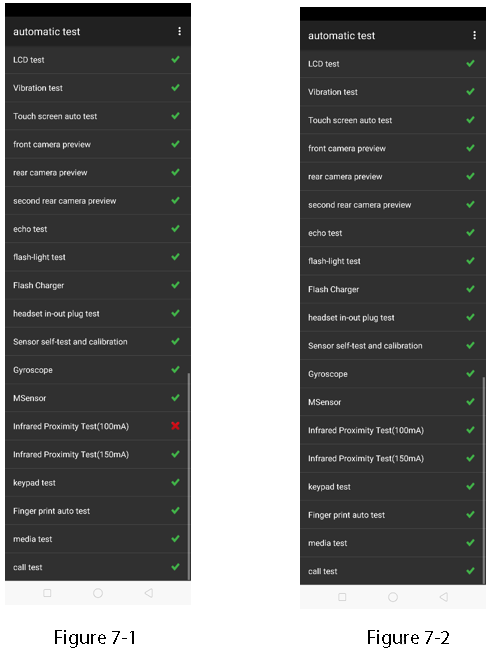

After the above 20 items are tested, they will prompt to the test result interface. If the test PASS, project will show “√”; If the test FAIL, project will show “×” as shown below.
8. General Cautions
1. Calibration is required after maintenance if there is any replacement of mainboard, display or fingerprint module.
2. After assembly, calibration must be performed before functional test to ensure the proper usage;
3. Some sensory test items may require artificial judgments such as LCD test, vibration test, pre-test, post-test, flash test, echo test, audio test, and call test. Therefore, test judgment requirements must be followed when operate function tests.
4. It is not allowed to press the return key to judge the result in advance if the test items have not been tested.
1. Guidance
1.1 Warnings and Cautions
1.1.1 Warnings
1.1.2 Cautions
2. General Repair Information
3. Phone Structure Diagram
3.1 Product Appearance
3.2 Phone Structure Explosive View
3.3 Explosive Map BOM
4. Disassembly Steps
4.1 Disassembly Tools
4.2 Preparation
4.3 Disassembly Steps
5. Assembly Steps
5.1 Bill of Must-Be-Replaced Materials
5.2 Assembly Steps
6. Calibration
6.1 Fingerprint optical calibration
6.1.1 Calibration Scenario
6.1.2 Calibration Tool
6.1.3 Calibration Method
6.2 Dual Camera Calibration
6.2.1 Calibration Scenario
6.2.2 Calibration Tool
6.2.3 Calibration Method
6.2 Motor Hall Calibrate
6.3.1 Calibration Scenario
6.3.2 Calibration Method
7. Function Test
7.1 Test Path
7.2 Test Requirements
8. General Cautions
1. Guidance
The purpose of this document is only to guide OPPO technicians to carry out maintenance service to OPPO products. The content shall be keep in confidential, only avail be able to OPPO authorized service centers, and cannot be provided to third parties without authorization. Please follow the regulations and the guidance for maintenance service. For any problems, please contact China HQ in time.
1.1 Warnings and Cautions
1.1.1 Warnings
1. Care must be taken on installation in vehicles fitted with electronic engine management systems and ABS (Anti–skid Braking Systems). Under certain fault conditions, emitted RF energy can affect their operation. If necessary, consult the vehicle dealer/manufacturer to determine the immunity of vehicle electronic systems to RF energy.
2. Phones must not be operated in areas likely to contain potentially explosive atmospheres, e.g. petrol stations (service stations), blasting areas etc.
3. Operation of any radio transmitting equipment, including cellular telephones, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the medical device if you have any questions. Other electronic equipment may also be subject to interference
1.1.2 Cautions
1. Repair services and calibrations must be undertaken by qualified personnel only.
2. Use only approved components as specified in the parts list.
3. Ensure all components, modules screws and insulators are correctly re-fitted after servicing and alignment.
4. Electrostatic discharge is the main cause of damage to sensitive components of electronic products. Service centers must operate in accordance with OPPO's requirements for ESD protection. Ensure all work is carried out at an ESD workstation and that an ESD wristband is worn.
2. General Repair Information
1. Ensure all work is carried out at an ESD workstation and that an ESD wristband is worn before starting maintenance.
2. Wear ESD gloves to avoid oil stains and fingerprints.
3. Use protective films to protect the display, camera, camera lens to prevent dust and scratches.
4. Use a clean cloth, ESD brush and alcohol (Concentration above 95%) for appearance cleaning. Do not use other items (such as an eraser) for cleaning to prevent the protective layer from being scratched, which may lead to oxidation and corrosion.
5. Faulty welded mechanical parts (except shield cover and shield frame parts) can only be replaced and not repairable.
6. Use accessories provided by OPPO.
7. Check the contacts or solder joints of devices that may cause simple faults (e.g. soldered interfaces or switches). Re-weld if necessary (only for service centers where lead-free soldering is available) and clean the flux remaining after soldering.
8. Use the equipment provided by OPPO to test the phone (e.g. When the charging function of the device is abnormal, do use the original OPPO adapter to test to ensure the accuracy of the test results).
9. Fill in the fault phenomenon code and fault reason code according to the actual situation, and accurately enter the replacement material code in the CRM system (Refer to the Smart Phone Fault Reason Matching Code List if necessary).
10. For more information about products, please visit the company FTP server: ftp://ftpex.oppo.com:919/
3. Phone Structure Diagram
3.1 Product Appearance

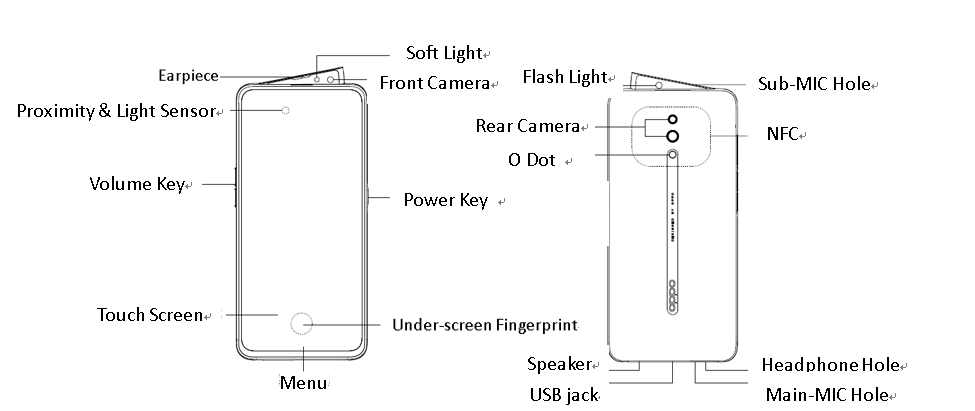

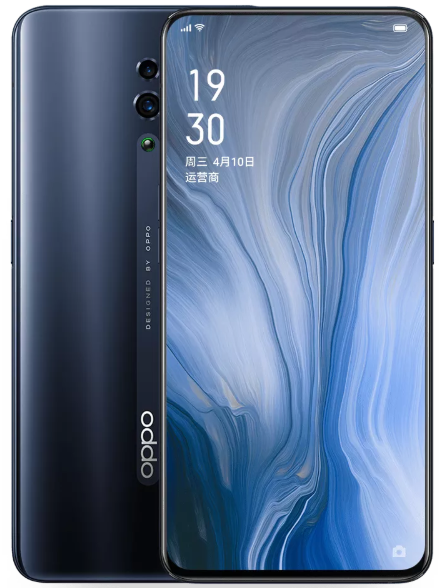

As shown in Figure 3-1-1
Figure 3-1-1
3.2 Phone Structure Explosive View
As shown in Figure 3-2-1
Figure 3-2-1

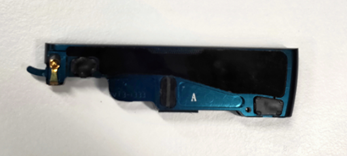

3.3 Explosive Map BOM| No. | Material Name(After-sales) | Physical Figure | Specifications | QTY | Unit |
|---|---|---|---|---|---|
| 1 | Display Assembly |  |
1) OLED Display Screen | 1 | PCS |
| 2) Middle Frame(Larger) | 1 | PCS | |||
| 27) Silicone Plug for LCM Via | 1 | PCS | |||
| 29)Motor | 1 | PCS | |||
| Touch Screen Protective Film | 1 | PCS | |||
| 2 | Middle Frame Assembly(Smaller) |  |
3)Front camera lens | 1 | PCS |
| 4)Small middle frame assembly | 1 | PCS | |||
| 12) Metal decorative piece for small middle frame | 1 | PCS | |||

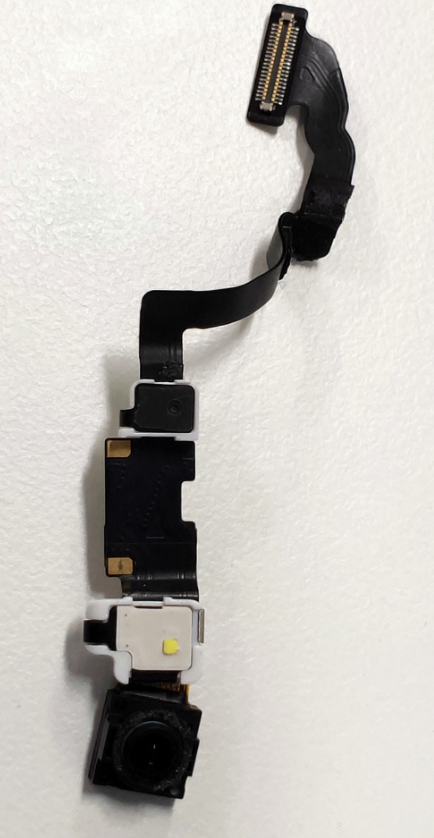

| 3 | Front Camera Assembly |  |
5)R Board Assembly | 1 | PCS |
| 6)Front Camera BTB Bracket | 1 | PCS | |||
| 7)Sub-MIC Bracket | 1 | PCS | |||
| 8)Front Camera | 1 | PCS | |||
| Front Flashlight FPC Bracket | 1 | PCS | |||
| 4 | Receiver |  |

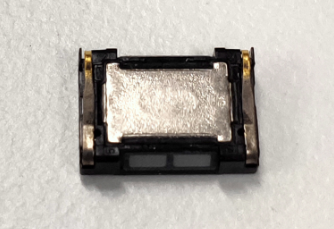

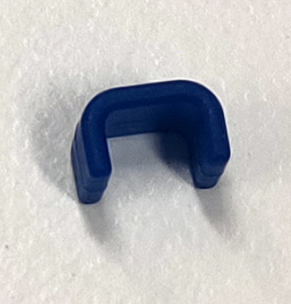

9)Receiver | 1 | PCS |
| 5 | Protection Silicone Sleeve for R Board |  |
10) Protection Silicone Sleeve for R Board | 1 | PCS |
| 6 | Pressing Bracket for Small Middle Frame |  |
11) Pressing Bracket for Small Middle Frame | 1 | PCS |
| 7 | Axis A |  |
13)Pin | 1 | PCS |
| 8 | Connecting Rod Sealing Bracket |  |
14) Connecting Rod Sealing Bracket | 1 | PCS |

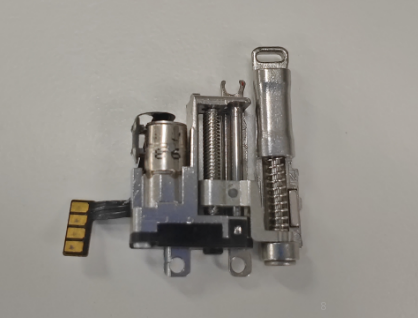

| 9 | Lifting Motor Assembly |  |
15)Connecting Rod System-Sleeve | 1 | PCS |
| 16) Connecting Rod System -Spring | 1 | PCS | |||
| 17) Connecting Rod System -Screws | 1 | PCS | |||
| 18)Gearbox | 1 | PCS | |||
| Bottom Foam of the Motor Assembly | 1 | PCS | |||
| 10 | Screws |  |
19)M1.2 screws | 5 | PCS |

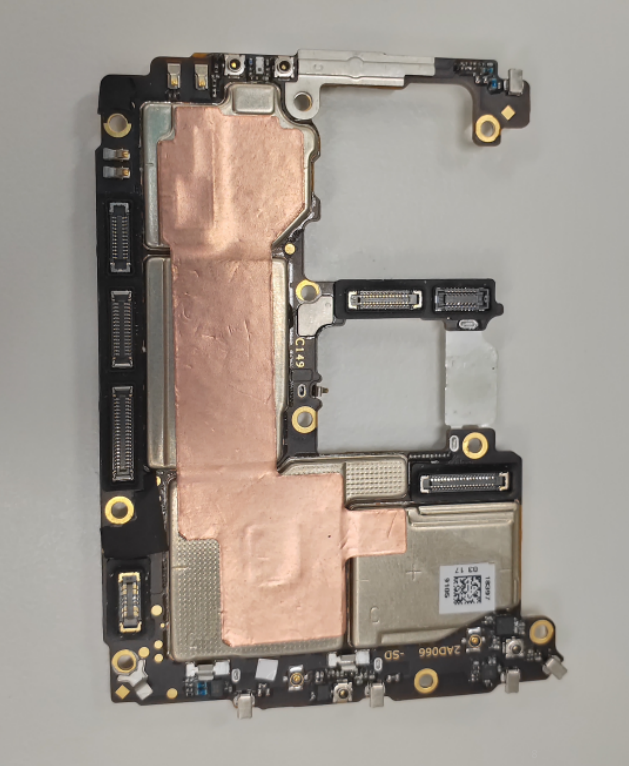

| 11 | Main Board Assembly |  |
20) Main Board Assembly | 1 | PCS |
| Proximity Sensor Silicone Case | 1 | PCS | |||
| Waterproof Sticker | 1 | PCS | |||
| Main Board PET2 | 1 | PCS | |||
| Main Board PET3 | 1 | PCS | |||
| 12 | Rear Main-Camera Assembly |  |

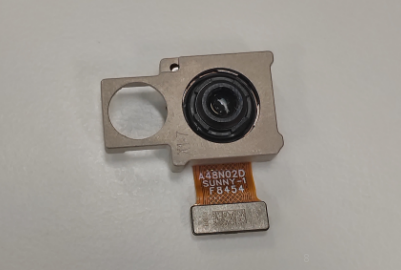

21)Main-Camera | 1 | PCS |
| Top Foam of Rear Sub Camera | 1 | PCS | |||
| Conductive Cloth of Rear Camera | 1 | PCS | |||
| 13 | Mainboard Pressing Bracket |  |
22)Mainboard Pressing Bracket | 1 | PCS |
| 14 | Screws |  |

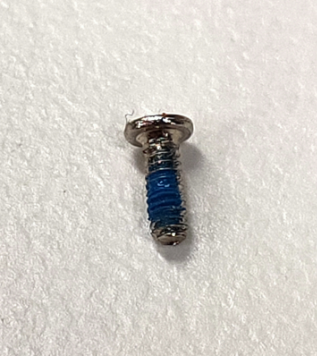

23)M1.4 Machine Tapping Screws | 22 | PCS |
| 15 | Battery Cover |  |

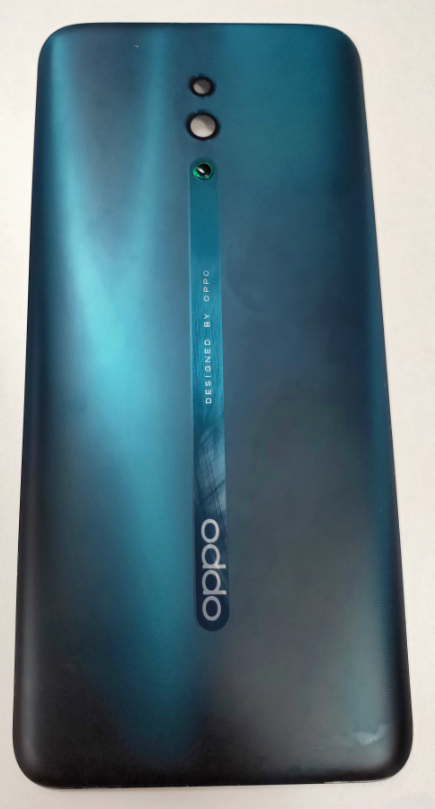

24)Battery Cover | 1 | PCS |

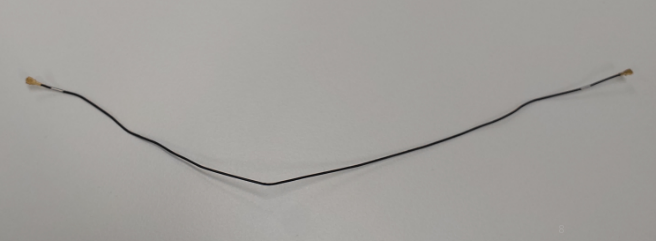

| 16 | RF Connection Cable |  |

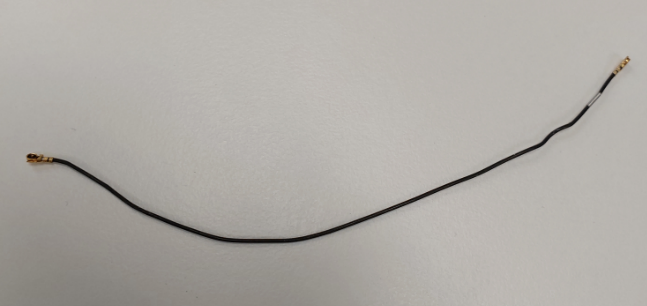

25) RF Connection Cable 1 | 1 | PCS |
| 17 | RF Connection Cable |  |
26)RF Cable2 | 1 | PCS |
| 18 | Semi-finished PCB Patch (AD066-0-patch 18097) |  |
28)6 Board | 1 | PCS |

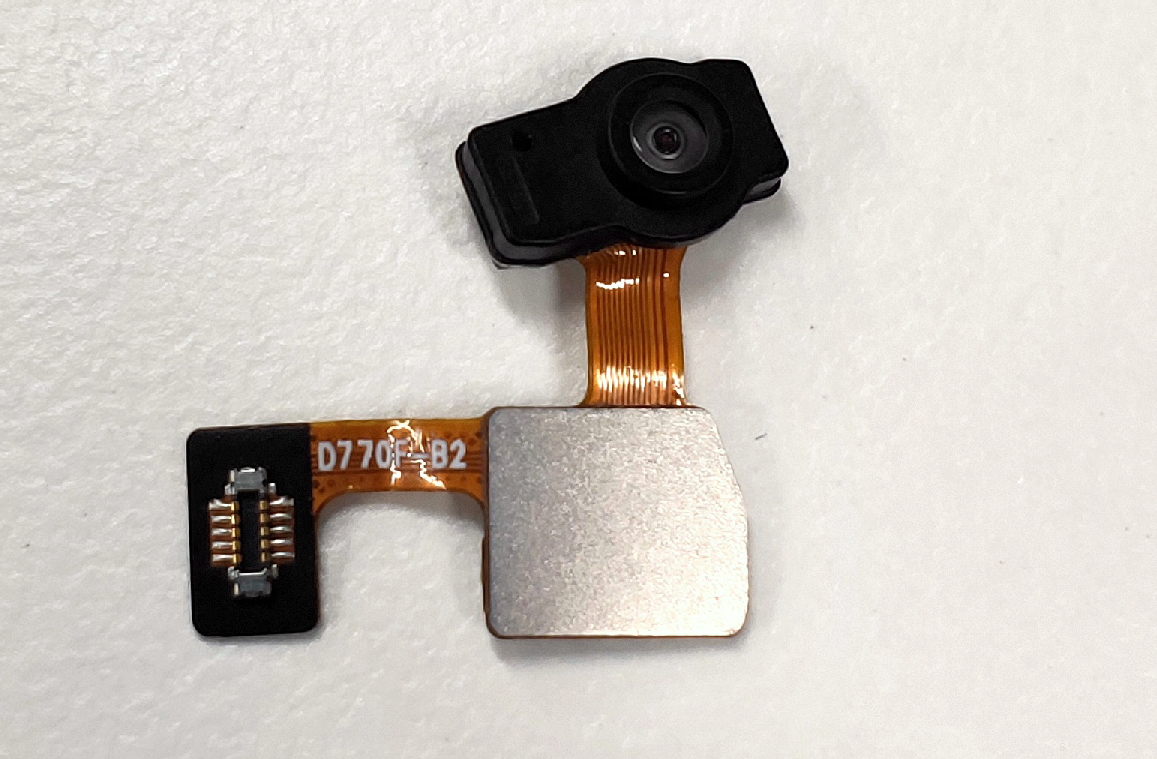

| 19 | Fingerprints Sensor Module |  |
30)Fingerprints Sensor Module | 1 | PCS |

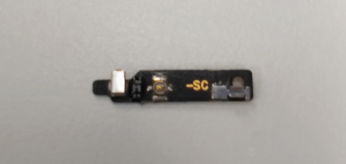

| 20 | Antenna Board |  |
31)A board | 1 | PCS |
| 32)Headphone Seat | 1 | PCS | |||
| 22 | Battery Assembly |  |
33)Lithium Charge | 1 | PCS |
| Battery ESD Bag | 1 | PCS | |||
| 23 | Semi-finished FPC Patch (AD066-0- patch 18097) |
 |

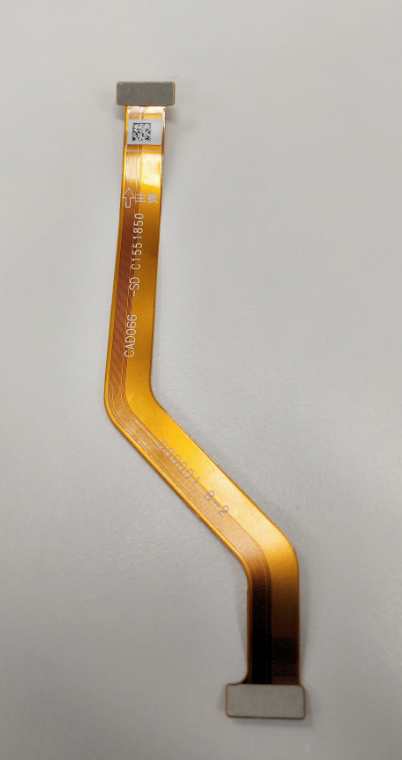

34)L Board | 1 | PCS |
| 24 | Semi-finished FPC Patch (AD066-0-patch 18097) |
 |

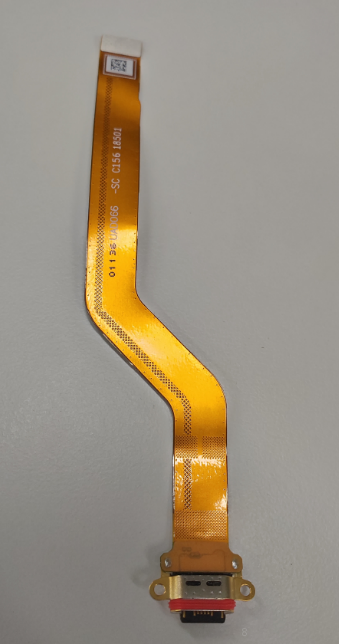

35)C board | 1 | PCS |
| 25 | Semi-finished FPC Patch (AD066-0-patch 18097) |
 |
36)U board | 1 | PCS |
| 26 | Under -screen fingerprint Bracket |  |

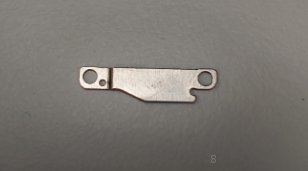

37)Under -screen fingerprint bracket | 1 | PCS |
| 27 | Speaker |  |

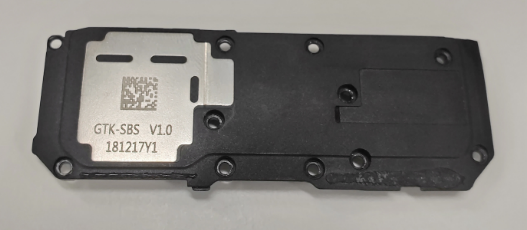

38)Speaker | 1 | PCS |
Note：This table is used only for the name of the annotation but not for the preparation of materials. Please refer to the “Price list of Commonly-used Materials and Accessories” for the preparation.
4. Disassembly Steps
4.1 Disassembly Tools
4.2 Preparation
1. The phone must be powered off before disassembly.
2. Way to Power Off:
System Power Off: Press the power key then slide to power off.
Forced Power Off: Long press the volume “+” key and power key for about 8 seconds until the display is off.
4.3 Disassembly Steps
| Step | Content | Figure | Cautions |
|---|---|---|---|

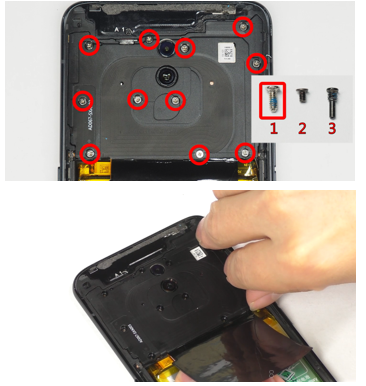

| 1 | Disassemble the battery cover |  |
(1) Avoid heating the camera. Heating requirements: 70 ° C -80 ° C for 5-10 mins; (2) Use the suction cup to remove the battery cover from the bottom of the phone; adjust the suction cup and strength according to the tightness when separating it. |

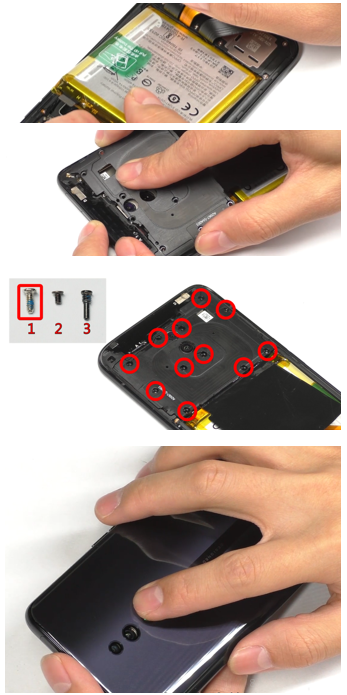

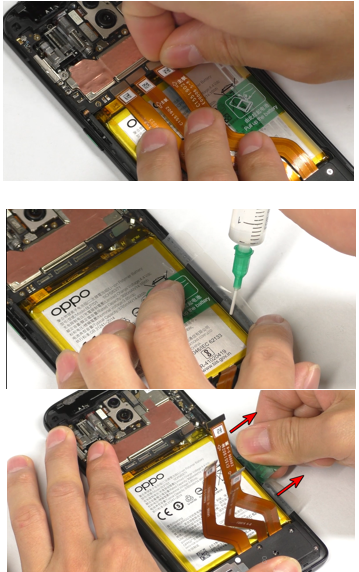

| 2 | Disassemble the battery |
  |

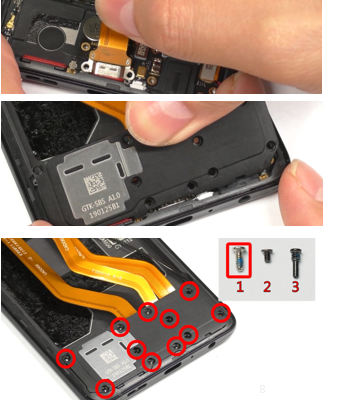

(1)The 11 screws on the mainboard bracket are the 1# screw in the video. (2) Remove the mainboard bracket from the lower right corner. (3) After tearing off the easy-tore paper, add 0.2ml of alcohol to the upper and lower sides of the handle, and stand the phone for 15 seconds until the alcohol spreads; (4) Place the phone flat and pull it diagonally. Make the angle between the handle position and the battery are larger than 90°, and slowly pull the battery off. Note: Since the adhesiveness of the Reno easy tore paper is strong, avoid bending and deformation of the middle part of the battery during assembly. |

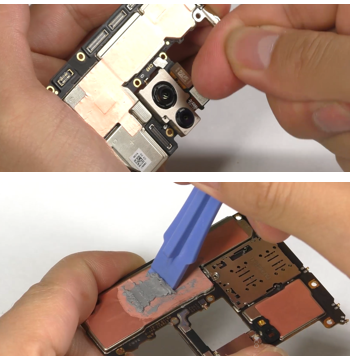

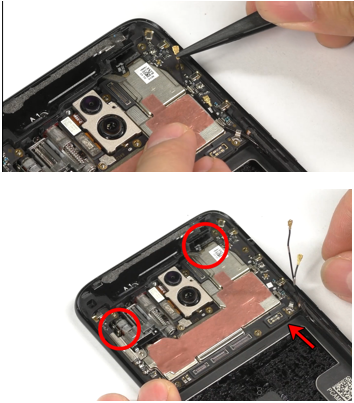

| 3 | Remove the mainboard and remove the thermal gel |
  |
(1) When removing the main board from the lower right corner, be careful not to scrape the small middle frame FPC and motor solder joints (circle in the figure) |

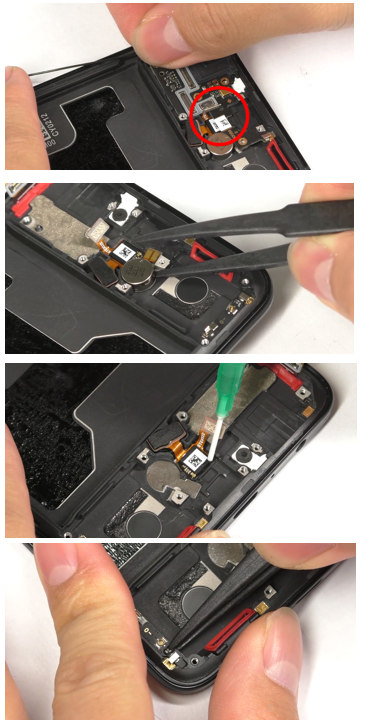

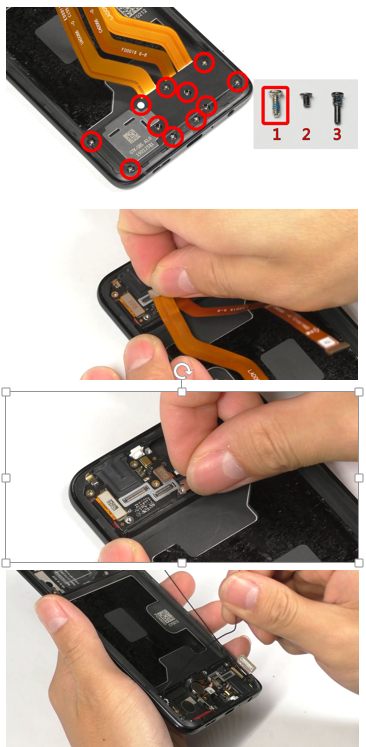

| 4 | Disassemble the speaker, small board end FPC and RF cable |  |

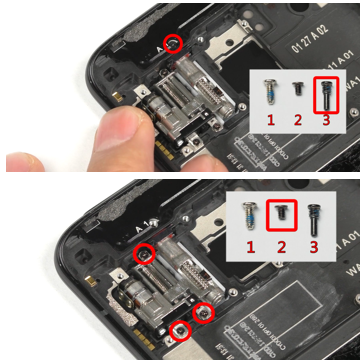

Loosen the 11 (1#) screws with a screwdriver. Note: the screws here are 1#; Distinguish the 3 types of screws. |

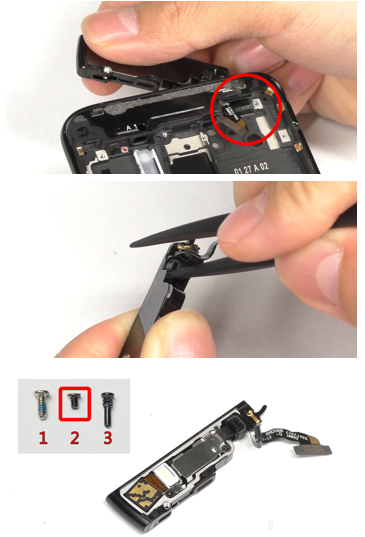

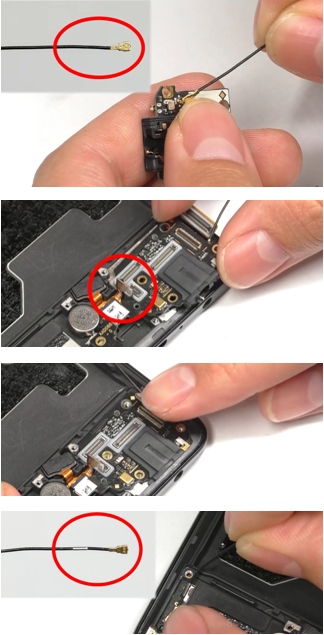

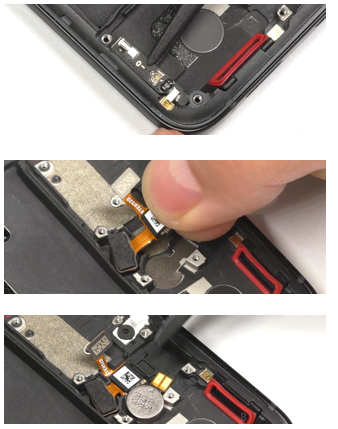

| 5 | Disassemble the antenna board, motor, fingerprint module and antenna board (6 boards) |  |
(1) Avoid breaking the weak part and fingerprint FPC (red circle circled in the figure) when removing the antenna board from the right side, (2) When removing the motor, add 0.1ml of alcohol to the edge and lift it from the side with plastic tweezers. (3) When removing the fingerprint IC, add 0.1ml of alcohol from the edge to remove the fingerprint FPC and remove the fingerprint sensor. |

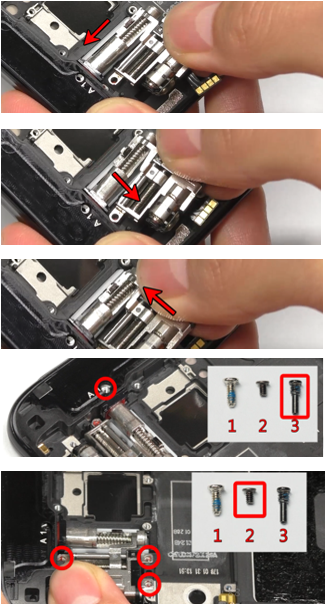

| 6 | Remove motor assembly and connecting rod sealing bracket |   |
(1) Use a screwdriver to remove the 1 (#3) screw that connects the small middle frame to the lifting motor. (2) Disassemble the three (#2) screws on the lifting motor assembly, add about 0.1ml of alcohol into the FPC, and disassemble the FPC with the plastic tweezers; (3) Push the motor unit to the left, then pull down the entire lifting motor assembly, and then take out the connecting rod sealing bracket. |

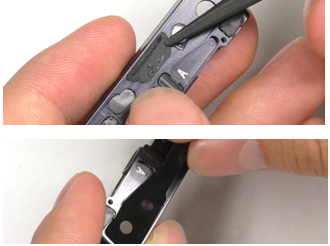

| 7 | Remove the small middle frame and clean the double-sided tape |   |
(1) Avoid damaging FPC when removing the small middle frame from the left side (the red circle is circled in the figure); (2) Use the plastic tweezers to open the small middle frame decorative piece from the lower right corner of the small middle frame( avoid the damaging FPC ); (3) Use a screwdriver to remove the 2 (2nd) screws on the small middle frame bracket. (4) For the residual double sided adhesive parts that are difficult to clean, use alcohol to clean them. |
| No. | Code | Material | SPEC. | QTY |
| 1 | 4876648 | Battery Easy-tore Paper | BLP701 transparent | 1 |
| 2 | 2929333 | Power key bracket | AD067 black | 1 |
| 3 | 2929334 | Volume key bracket | AD067 black | 1 |
| 4 | 4875643 | Cushion for the RF Cable in the Battery compartment | AD067 black PORON single-sided adhesive | 1 |
| 5 | 4875681 | Battery cover double-sided tape | AD067 | 1 |
| 6 | 4875682 | Double-sided adhesive tape for small middle frame | AD067 | 1 |
| 7 | 3882949 | Metal decorative piece assembly for the Small middle frame | AD067 deep tarnish/ stainless steel | 1 |
5.2 Assembly Steps
| Step | Content | Figure | Cautions |
|---|---|---|---|
| 1 | Install the decorative piece of the receiver, small middle frame lens and the receiver |
 |
(1) Keep the direction of the shrapnel facing up when installing the receiver. Press it gently with tweezers without a bulge. |
| 2 | Front camera FPC, R board protection silicone case and decorative piece for small middle frame |
 |
(1) Pre-bend FPC. Press the R Board into the small middle frame slot, and avoid damaging the flashlight and FPC. (2) Use #2, a total of 2 PCS screws, to fix the small middle frame. |
| 3 | Install the small middle frame assembly and motor assembly |  |
(1) When putting R Board through the slot, be careful not to pull it back to avoid damaging the FPC. (2) When installing the lifting motor, push the motor assembly into the middle frame. After it is well installed, push it back and forth to snap the buckle. (3) Use #3 screw, a total of 1 pcs, to fix the small middle frame rotating Axis A and care should be taken to avoid using wrong screws. (4) Use #2 screw (shorter), a total of 3pcs, to fix the motor assembly. |
| 4 | Install 6 board, fingerprint sensor |  |
(1) The 6 board, fingerprint sensor and motor assembly should be installed in place and lightly pressed without a bulge. |
| 5 | Install RF cable on the antenna board end, antenna board and RF cable on the 6 board end |  |
(1) Assemble the shorter RF cable on the antenna board, and the cable end installed on the antenna board is without a metal ring. (2) Assemble the antenna board, and avoiding damaging the fingerprint FPC. (3) When assembling the RF cable (Longer) on the antenna board (6 board), the Cable end installed on the antenna board is with a metal ring. |
| 6 | Install USB FPC, speaker and conducive thermal gel |  |
(1) Assemble the Speaker Box with #1, a total of 11 screws. (2) Paint the conducive thermal gel along the red path shown in the picture evenly. |

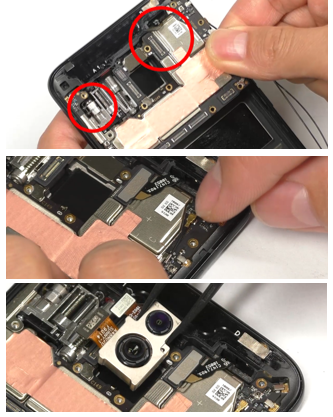

| 7 | Install the RF cable on the mainboard end, mainboard and the rear camera |  |
(1) Assemble the main board from the left side, and avoid damaging the FPC and motor solder joints. |
| 8 | Install battery, mainboard plate bracket |  |
(1) Replace the battery easy-tore paper after disassembling the battery, keep the easy-tore paper fit and flat, and make sure there is no foreign matter in the battery compartment before snap the buckle. (2) Assemble the mainboard bracket from the left buckle position, and fix it with #1 (a total of 11 PCS) screw with a screwdriver. |
6. Calibration
6.1 Fingerprint optical calibration
6.1.1 Calibration Scenario
The following fingerprint calibration must be performed after disassembling or replacing any of the main board, fingerprint module, protective film, and screen cover assembly.
6.1.2 Calibration Tool
The calibration tool is shown in Figure 6.1.2-1:
| The first yellow rubber head | Black rubber head | The third yellow stripe rubber head |
 |
 |
 |
Figure 6.1.2-2
As shown in the Figure 6.1.2-2, the yellow stripe rubber head is with parallel stripes.
Figure 6.1.2-2
The schematic diagram during measure is shown in Figure 6.1.2-3:
| Schematic Diagram |
 |
Figure 6.1.2-3

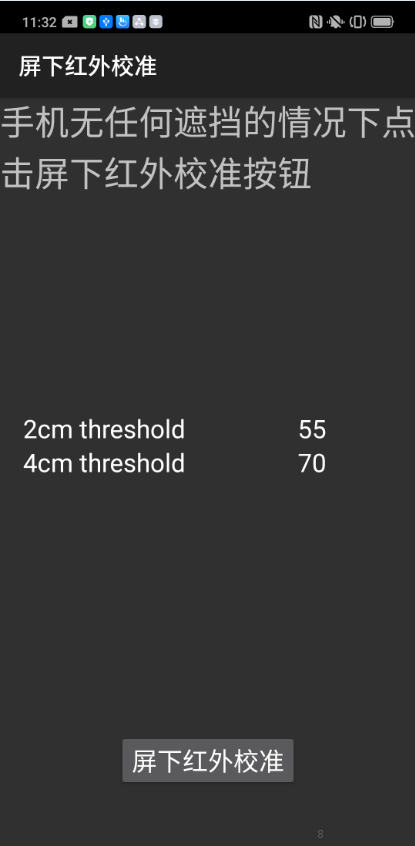

Calibration path： Enter *#899# in the dial interface>Aftersales Devices Calibration> Enter password “6776” >Infrared Proximity Calibration > Fingerprint calibration，Specific operations refer to calibration page hints:
| Operation | 1. Make sure there is no material covering the phone, then press the infrared access calibration button. | 2. Click "START" to start calibration after it jumps into the fingerprint optical calibration, |
|
| Icon |  |
 |
 |
| Operation | 4. According to the prompt "please place the black rubber head", put the black rubber on the fingerprint spot area (the groove is facing down), click "NEXT" until the "please place the yellow stripe rubber " prompts to remove the black rubber ; | 5. According to the prompt “Please place the yellow- striped rubber”, put the yellow stripe rubber (striped down) in the spot area, click “NEXT”; | 6. Prompt “Test completed, please reboot”, remove the yellow stripe rubber and complete the test; If the prompt is fail, check if there is a problem with the fingerprint module installation and recalibrate the test. |
| Icon |  |
 |
 |
As shown on the Figure 6.1.3-1
Figure 6.1.3-1
(2) after the calibration is completed, the phone needs to be restarted
6.2.1 Calibration Scenario
1. When the portrait mode is poorly blurred, the after-sales service center needs to calibrate the phone.
2. All devices must be calibrated after the phone has disassembled, or the portrait mode will be poorly blurred.
6.2.2 Calibration Tool
After-sales calibration Chart,
As shown in Figure 6.2.2-1:
Figure 6.2.2-1
1. 1. Please align the yellow box with the edge of the chart, and then take a Photo. Then, do not operate the phone when the phone enters the computing interface until it displays “Pass” with the calibration completed.
| Calibration interface | Calibration Calculation Process Interface | Calibration PASS result interface |
 |
 |
 |
1. If it shows “Fail 69” during calibration, the lens is too far from the chart;
2. If it shows “Fail 70” during calibration, the lens is not parallel to the chart;
3. If it shows “Fail 68” during calibration, the lens is too close from the chart;
6.2 Motor Hall Calibrate
6.3.1 Calibration Scenario
If there is a gap in the camera slider, poor smoothness or noises when sliding, first upgrade the phone to the latest software version and then perform Motor Hall calibration for the phone. If the slider is with the fault after Hall calibration, repair the related assembly for the phone.
6.3.2 Calibration Method
Step 1: Enter “*#899#” on the dial keypad to enter the engineering mode, then click “Motor Hall Calibration” and enter the password “6776” to enter the Motor Hall calibration interface.
Step 2: Confirm the default calibration parameters (Default Value for Reno: near: 40; far:15). After confirming, click “Start Calibrate”; if it displays “PASS” and automatically jump to the next interface, the slider is sound. If the slider is not fully raised or “FAIL” is displayed, the slider is defective.
Step 3: After the Motor Hall calibration test “PASS” and jumps to the “Drive Motor Test”, click the “Start Test”. If “PASS” is displayed, the next interface will be automatically jumped. If the slider is not fully raised or “FAIL” is displayed. ", then the hardware is defective.
Note: Try several times of Motor Hall calibration to confirm if the hardware is defective.
7. Function Test
7.1 Test Path
Dialing Interface>Enter*#899#>Enter automatic test； The "Confirm" dialog box will pop up after the test complete, if there is no problem choose “Pass”, otherwise choose “Fail”.
7.2 Test Requirements
| No. | Test Items | Test Requirements |
|---|---|---|
| 1 | LCD Test | Observe the red, green, blue, white, black, gray, grayscale and color interface successively; If there are black spots, bright spots and other anomalies, the function is sound; |
| 2 | Vibration Test | Get ear close to check the vibration from the motor for 3 seconds. If the motor vibrates normally(No noises or weak vibration), the function is sound; |
| 3 | Touch Screen Auto Test | If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 4 | Front Camera Preview | Align the rear camera with a white surface and a black surface. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, and there is no bright spot on the screen after aligning the black surface, the camera is sound; |
| 5 | Rear camera preview | Align the rear camera with a white surface, a black surface, and a surface with text. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, there is no bright spot on the screen after aligning the black surface, white point or blurred screen, the camera is sound; |
| 6 | Second rear camera preview | Align the rear camera with a white surface, a black surface, and a surface with text. If there is no black dot, black line or blurred screen on the screen after aligning the white surface, there is no bright spot on the screen after aligning the black surface, white point or blurred screen, the camera is sound; |
| 7 | Echo test | Testing Main MIC: Blow the air to the MIC hole on the bottom of the phone. If the receiver (earphone) sounds, the function of Main MIC is sound; Testing Sub MIC: Blow the air to the sub MIC hole on the top of the phone. If the speaker sounds, the function of Main MIC is sound; |
| 8 | Flashlight Test | Open the flashlight. If it can be opened normally with color deviations, the function is sound; |
| 9 | Charging Test(VOOC) | Use the original OPPO adapter and USB cable to charge. If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 10 | Headset in-out Plug test | Plug in and out the earphone with the OPPO earphone. If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 11 | Sensor Self-test and Calibration | When the phone enters into the Sensor self-calibration interface, the phone must be placed on the desk flatly. Then click the first calibration item. After the test is passed, it will automatically jump to the next test item |
| 12 | Gyroscope Test | Take the mobile phone to draw the "8" word graphic. If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 13 | M-Sensor Test | Shake the phone from the left to the right side. If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 14 | Proximity-sensor Test（100mA) | Use the palm to cover the light sensor hole, and the screen will turn green from black. If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 15 | Proximity-sensor Test（150mA) | Use the palm to cover the light sensor hole, and the screen will turn green from black. If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 16 | Keypad Test | Press the power key and volume key one by one. If keys can be pressed normally and the interface jumps to the next test, the function is sound; |
| 17 | Fingerprint Auto Test | If the interface shows “PASS” and jumps to the next test, the function is sound; |
| 18 | Media test | Click the “20-4K（-3db)signal” to test the sound of the media function for 5s. If there is no silence, weak sound, noises, and breaking sound, the interface shows “PASS” and jumps to the next test, the function is sound; |
| 19 | Call test | If the phone has been installed with the operator's SIM card, dial the corresponding operator's phone number. If no card is installed, call the 112 to test (Calling the Operator is recommended). If the call can be performed normally and the receiver is without noises or weak sounds, the function is sound; |
| 20 | NFC Test | Close the phone of the rear camera area to the NFC card reader. If the signal light of the card reader changes from red to green with “Beep” sound, the interface shows “PASS” and jumps to the next test, the function is sound; |
After the above 20 items are tested, they will prompt to the test result interface. If the test PASS, project will show “√”; If the test FAIL, project will show “×” as shown below.
8. General Cautions
1. Calibration is required after maintenance if there is any replacement of mainboard, display or fingerprint module.
2. After assembly, calibration must be performed before functional test to ensure the proper usage;
3. Some sensory test items may require artificial judgments such as LCD test, vibration test, pre-test, post-test, flash test, echo test, audio test, and call test. Therefore, test judgment requirements must be followed when operate function tests.
4. It is not allowed to press the return key to judge the result in advance if the test items have not been tested.
----Technical Support Team of OPPO Service Dept.
