OPPO F19（CHP2219） Parameter List
Views: 6 • Likes: 4
1.Basic information |
|
| Product name | OPPO F19 |
| R&D project code | 20241 |
| Phone model | Model: CHP2219 Name: OPPO F19 |
| Launch date | 2021/4/9 |
2.Appearance |
|
| Dimensions | 160.3 mm x 73.8 mm x 7.95 mm India: 16.03 cm x 7.38 cm x 0.795 cm |
| Weight | About 175 g |
| Phone color | Prism Black Midnight Blue Space Silver |

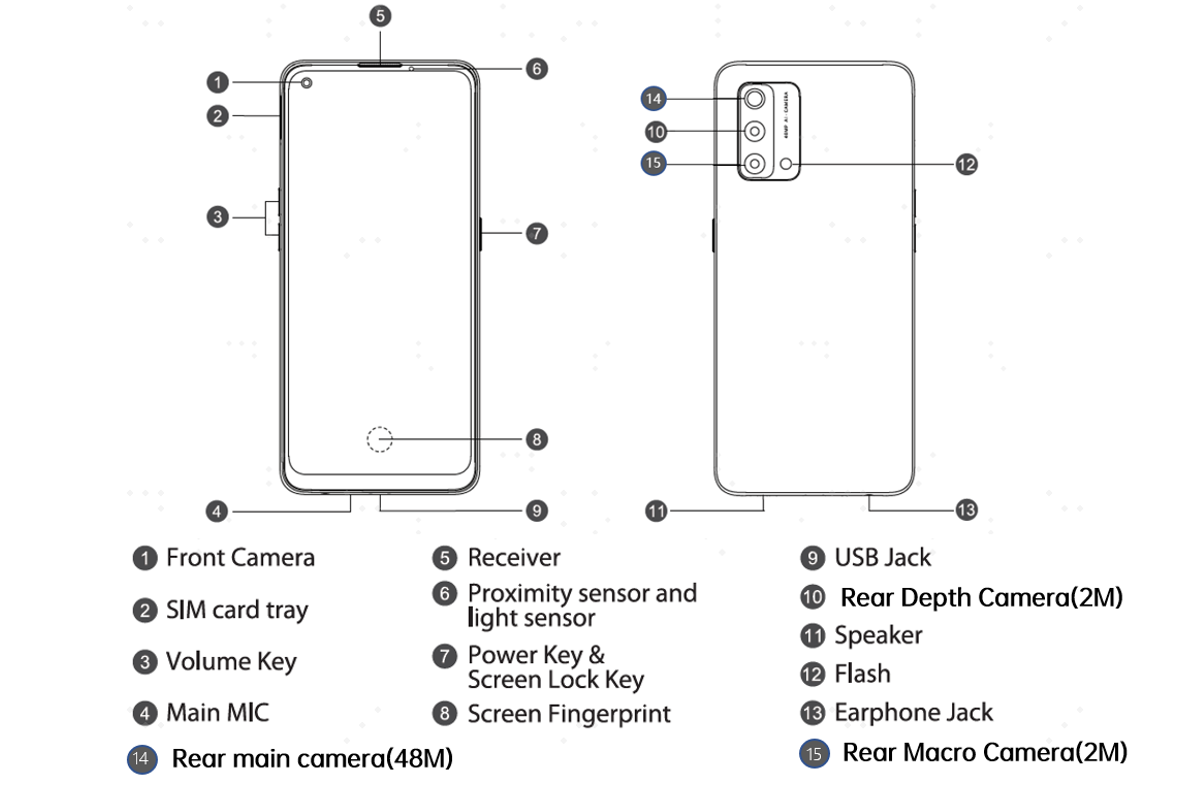

| Product Appearance | |
3.Material and process |
|
| Material of top motherboard case | Rakuten PC plastics with 20% GF + Aluminum alloy (QN14.1) |
| Material of bottom motherboard case | PC (Sabic) |
| Material of battery cover | Sheet material (PC + PMM) |
| Battery cover process | A 0.55 mm 3D sheet material created by high-pressure heat bending process. |
| Protective film on battery cover | No |
| Oleophobic coating on battery cover | Yes |
4.SoC |
|
| CPU clock rate | Octa-core with a maximum clock rate of 2 GHz (4 big cores + 4 little cores) |
| GPU model | Qualcomm® Adreno™ GPU 610 at 950 MHz |
| CPU architecture | A customized 64‑bit Arm v-8.0 compliant applications processor (Qualcomm® Kryo™ 260 CPU) • Kryo Gold: Quad high-performance cores 2.0 Ghz • Kryo Silver: Quad low-power cores 1.8 GHz |
| RAM clock speed | 1804 MHz |
| CPU model | Qualcomm SM6115 |
| Processing platform (Internal name) | SM6115 |
| Processing platform (Public name) | Qualcomm Snapdragon 662 |
| CPU manufacturing process | 11 LPP |
| GPU manufacturing process | 11 nm |
| AI capabilities | 3rd-generation Qualcomm AI engine |
| CPU cores | Octa-core |
| Processor bits | 64-bit |
5.Display |
|
| Size | Chinese version: 6.43 inches (length of the diagonal) International version: 16.34 cm |
| Top bezel | 2.00 mm |
| Bottom bezel | 5.53 mm |
| Left and right bezels | 1.60 mm |
| Screen-to-body ratio | 90.8% |
| Color saturation | 95.82% (NTSC typical value) |
| Colors | 16 million (8-bit) |
| Aspect ratio | 20:9 |
| Material of display panel | AMOLED (rigid screen) |
| Supplier | Samsung |
| Resolution | FHD+ (2400×1080) |
| Color gamut | 92% DCI-P3 (typical value) 100% sRGB (typical value) |
| Pixels per inch (PPI) | 409 PPI |
| Contrast ratio | 1000000:1 |
| Brightness | Normal:430nits HBM:600nits Peak value:800nits All of these are typical. |
| Material of front screen protection glass | SCHOTT X-UP |
| Refresh rate | 60 Hz |
| Lamination method of touch screen | On-Cell |
| Touch points | 10 |
| Touch sampling rate | Normal: 135 Hz Gaming: 180 Hz |
| Screen protector type | SRF 2D high-definition film |
| Oleophobic coating on screen | Yes |
| Oleophobic coating on protective film from manufacturer | Yes |
| TÜV Rheinland eye comfort certification | No |
| Night mode | Supported |
| Eye comfort | Supported |
| Low-brightness flicker-free eye comfort | Supported |
| HDR display | Not supported |
| Touch screen type | Capacitive |
6.Storage |
|
| RAM and ROM | 6GB + 128 GB |
| RAM specifications | LPDDR4X SDRAM Designed for 1804 MHz clock (2 × 16 bit) |
| ROM specifications | UFS 2.1 gear 3 (one-lane) |
| Phone storage card | SD3.0 |
| Supported expansion card | MicroSD card (Max storage: 256 GB) |
| Move apps to storage card | Supported |
| OTG data transmission | Supported (Reverse charging supported) |
| OTG storage format | FAT32, NTFS and exFAT |
| Maximum OTG storage supported | 2 TB |
| RAM channels | 2 |
7.Front camera |
|
| Equivalent focal length | 26 mm |
| Effective focal length | 3.48 mm |
| Camera specifications | Front camera: 16 MP (f/2.4); FOV 78°; lens: 5P, FF |
| Sensor specifications | Sony IMX 471 16 MP, 4:3, 1/3.09', 1㎛ |
| Focus mode | Fixed focus |
| Camera mode | Photo, Video, Panorama, Portrait, Night, Time-lapse, selfie beautification, and more. |
| Photo details | Device: OPPO F19 Focal length: 3.48 mm Aperture: f/2.4 |
| Image size | Maximum size: 3468 x 4624 (16 MP) Sizes in different aspect ratios: 3468 x 4624 (4:3) 3472 x 3472 (1:1) 1840 x 4096 (full screen) 2600 x 4624 (16:9) |
| Image format | JPG |
| Video taking | Front camera: 1080P/720P@30 fps (Default: 720P@30 fps; beautification turned on) Video zoom or slow motion is not supported by the front camera. |
| Video format | Video format: MP4 Video coding format: H.265 (high efficiency) and H.264 (default format, high compatibility) |
| Optical zoom | Not supported |
| EIS | Not supported |
| Soft light | Not supported |
| Camera structure | Blind hole |
| Camera control | Touch actions/Volume buttons/Gestures/Virtual buttons |
| Sensor type | CMOS (front camera: 4-in-1) |
| Material of protection glass | SCHOTT X-UP |
| Front camera arrangement | 16 MP |
8.Rear camera |
|
| Sensor specifications | Main camera: OV OV48B, 48MP, 1/2", 0.8 um, 4:3 PDAF Depth camera: GalaxyCore GC02M1B, 2MP, 1/5", 1.75 um,4:3 Macro camera: OV OV02B10, 2MP, 1/5", 1.75 um, 4:3 |
| Camera specifications | Main camera: f/1.7; FOV 79°; 6P lens; AF supported Depth camera: f/2.4; FOV 89°; 3P lens; fixed focus Macro camera: f/2.4; FOV 89°; 3P lens; fixed focus |
| Effective focal length | Main camera: 4.71 mm Depth camera: 1.77 mm Macro camera: 1.77 mm |
| Equivalent focal length | Main camera: 25 mm Depth camera: 22 mm Macro camera: 22 mm |
| Optical zoom | Not supported |
| EIS | Supported |
| OIS | Not supported |
| Focus mode | Main camera: Contrast detection autofocus + Phase detection autofocus |
| Camera mode | Photo, Video, Night, Expert, Panorama, Portrait, Time-lapse, Slow-motion, Text scanner, and Google Lens |
| Image format | JPG |
| Video taking | Rear camera: 1080P@30fps, and 720P@30fps Video slo-mo: 720P@120fps Video stabilization: EIS, 1080P@30fps |
| Video format | Video format: MP4 Video coding format: H.265 (high efficiency) and H.264 (default format, high compatibility) |
| Flash light | One rear LED light with single color temperature |
| Camera control | Touch actions/Volume buttons/Virtual buttons |
| Smart scenario recognition | Supported |
| Sensor type | CMOS (Main rear camera: 4-in-1) |
| Material of protection glass | Rainbow 2 |
| Rear camera arrangement (Screen facing down) | From top to bottom: 48MP main camera + 2MP depth camera + 2MP macro camera |
| Zoom mode | 10x digital zoom supported |
| Burst photos | 20 photos |
| Photo editing options | Filter, Auto enhance, Crop & rotate, Stickers, Doodle, Beautify, Text, Mosaic, Blur, and Eraser |
| Photo details | Main camera: Device name: OPPO F19 Focal length: 4.71 mm Aperture: f/1.7 Macro camera: Device name: OPPO F19 Focal length: 1.77 mm Aperture: f/2.4 |
| Image size | Maximum size: 6000 x 8000 (48MP) Sizes in different aspect ratios: 3000 x 4000 (4:3) 3000 x 3000 (1:1) 1800 x 4000 (full screen) 2250 x 4000 (16:9) |
| Fill light for video shooting | Supported |
9.OS – Version info and apps |
|
| Android version | Android 11 |
| ColorOS version | ColorOS 11.1 |
| OPPO apps | Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Photos, Phone Manager, Weather, Cloud Service, Calculator, Recorder, Compass, Soloop, Videos, Game Space, Music Party |
| Pre-installed third-party apps | In common: Google Mobile Services, Google File，Facebook，FB Installer, FB Manager, FBNS Vary by country/region:Amazon Shopping（in.amazon.mShop.android.shopping），Amazon Prime Video，Amazon Music Unlimited， TikTok(com.zhiliaoapp.musically)， Snapchat，WPS Office，Booking.com，Netflix，iQIYI, Lazada,Whatsapp, Agoda，Flipkart，Baca Plus， JT Express，Daraz，Twitter |
| Apps that can be uninstalled | In common: Google Mobile Services, Google File, Facebook, FB Installer, FB Manager, FBNS, and WPS Office Vary by country/region: Amazon Shopping (com.amazon.mShop.android.shopping), Amazon Prime Video, Amazon Music Unlimited, TikTok (com.zhiliaoapp.musically), Snapchat, Weather, Calculator, Recorder, Screen Lock, Compass, Soloop, Videos, Game Space, Music Party |
| Apps that cannot be uninstalled | Netflix, Clone Phone, Clock, File Manager, Music, Theme Store, Camera, Photos, Phone Manager, and Cloud Service |
| Pre-installed apps | Calendar, Clock, Photos, File Manager, Google Mobile Services (Google Play, Google Maps), Theme Store, Music, Netflix |
10.OS – Calls |
|
| Dual-card single/dual pass | Dual-card single pass |
| Voice call solution | VoLTE if VoLTE is enabled, and CSFB if VoLTE is not enabled |
| Maximum number of call logs | 3000 |
| Video call | Supported |
| Answering phone calls using earphones | Supported |
| Call recording | Supported |
| Call recording format | AMR |
| Storage location for call recordings | File Manager - Phone storage - Music - Recordings - Call Recordings |
| Automatic call recording | Supported |
| Quick dial | Supported |
11.OS – Contacts |
|
| Display caller's profile picture | Supported |
| Display background for incoming calls | Supported |
| SIM card contacts import and export | Supported |
| Maximum number of contacts that can be saved | Depends on the size of mobile phone storage space |
| Maximum capacity of blocklist | Depends on the size of mobile phone storage space |
| Contact file format | vCard, csv |
| Contacts grouping | Supported |
| Customized grouping | Supported |
12.OS – Messages |
|
| Maximum number of recipients for group SMS messages | 200 |
| Maximum capacity of blocklist | Depends on the size of mobile phone storage space |
| SMS capacity | Depends on the phone's storage size |
| SMS character limit | 1530 English characters (Chinese, for encoding reasons, will be less than 1530); SMS exceeding the limit will be automatically converted to MMS. |
| Max size for MMS message | 300 KB |
| Schedule messages | Not supported |
| Messages import and export | Supported |
| Number of MMS messages that can be stored | Depends on the phone's storage size |
13.OS function |
|
| Pre-installed browser | Google Chrome |
| Image editing function | Filter, Crop & rotate, Sticker, Beautify, Text, Mosaic, Blur, Eraser |
| Pre-loaded images | Indonesian market: Pura Ulun Danu Bratan.jpg None for other markets |
| Pre-loaded music | None |
| Firewall/Block & filter | Calls and SMS messages can be blocked. |
| Backup and restore | Supported |
| File compression and extraction | Supported |
| Private Safe (file lock) | Supported |
| App lock | Supported |
| Resetting password using fingerprint | Not supported |
| App lock method | Pattern, PIN, alphanumeric password, fingerprint, and face |
| MHL HD output | Not supported |
| Split screen mode | Supported |
| Picture-in-picture (PIP) | Supported |
| Playing videos in floating window (mini window mode) | Supported |
| Webpage video playback | Supported |
| Google Lens | Supported |
| Supported | |
| Reader | Supported |
| Office tools | Supported: The WPS File Viewer is pre-installed on the phone, and third-party office apps can also be installed. |
| Weather widget | Not supported (weather info is included in the Clock widget). |
| Clock widget | Supported |
| Music widget | Not supported |
| Third-party software widget | Supported |
| Pre-installed Radio app | Not supported in EU countries |
| Gestures & motions | Screen-off gestures, smart call, raise to wake, and 3-finger screenshot |
| Incoming call banner | Supported |
| Ending calls with Power button | Supported |
| Kid Space (Guest mode) | Supported |
| Third-party input method | Supported |
| High-definition format | Supported |
| Format of audio recordings | Supported |
| Ringtone format | MP3 |
| World clock | Supported |
| Screencast through HDMI | Not supported |
| Flashlight | Supported |
| Always-On Display | Supported |
| Hall effect sensor/Mini window mode | Mini window mode |
| Screen recording | Supported |
| Compass | Supported |
| App cloner | Supported |
| OPPO Share | Supported |
| OSIE visual effect | Not supported |
| Data saving (freezing third-party apps running in background) | Supported |
| Voice changer | Supported |
| Game acceleration (Mainstream apps) | Not supported |
| Game Space | Max configuration supported for Arena of Valor: Outlines—Enabled Camera Distance—Far High Frame Rate Mode—Enabled HD Display—Enabled Display Quality—HD Particle quality—High Max configuration supported for PUBG: Graphics—Smooth Frame Rate—High Anti-Aliasing—Enabled Auto-Adjust Graphics: Disabled |
| Other special functions | / |
| OPPO Share | Supported |
| File system | Flash-friendly file system (F2FS) |
| Game support | Max configuration supported for Arena of Valor: Outlines—Enabled Camera Distance—Far High Frame Rate Mode—Enabled HD Display—Enabled Display Quality—HD Particle quality—High Max configuration supported for PUBG: Graphics—Smooth Frame Rate—High Anti-Aliasing—Enabled Auto-Adjust Graphics: Disabled |
| Step counting | Build-in pedometer, and third-party pedometer apps are also supported. |
| Dual Wi-Fi | Not supported |
| Breathing light | None |
| Recently deleted (Photo recycle bin) | Supported |
| Flash | Not supported |
14.Local files |
|
| Video format | AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV, etc. |
| Audio format | MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA, etc. |
| Supported document formats (for document viewing) | TXT, PDF, Word, Excel, PPT |
| Image format | Supports JPEG/PNG/GIF/BMP formats |
15.OPPO Wallet |
|
| Bank cards | Not supported |
| Transit card | Not supported |
| eID | Not supported |
| Access card | Not supported |
16.Wireless connection |
|
| NFC | Not supported |
| Wi-Fi function (Antenna) | Wi-Fi 2.4 GHz, Wi-Fi 5 GHz, Wi-Fi Display |
| Wi-Fi protocol | 802.11 a/b/g/n/ac |
| Maximum data rate (theoretical) | 433 Mbps |
| Wi-Fi display | Supported |
| Personal hotspot/Wi-Fi hotspot | Supported |
| Maximum number of devices that can be connected to a hotspot | 10 |
| Bluetooth version | Bluetooth 5.0 |
| Bluetooth audio specifications | Supports SBC, AAC, and APTX |
| Supported Bluetooth protocols | HFP, HSP, A2DP, AVRCP, HID, PAN, OPP, MAP, PBAP, GATT (Supported protocols include A2DP, AVRCP, HFP, HSP) |
| Wi-Fi antenna | 2.4 GHz/5 GHz dual band Wi-Fi |
| Wi-Fi frequency | 2.4 Ghz, 5 GHz |
| FM radio | Supported |
| Share network via Bluetooth | Supported |
17.Mobile network |
|
| LTE antennas | 1 main antenna + 1 diversity antenna. DPDT switch. |
| LTE radio frequency | N/A |
| VoLTE | Supported according to requirements for local carriers |
| 5G network mode (dual mode/single mode) | Not supported |
| VoLTE | India: Vodafone Airtel Reliance Jio 4G (4G only) Idea BSNL Myanmar: Telenor MyTel Sri Lanka: Dialog Mobitel Bangladesh: Robi Grameenphone Pakistan: ZONG Telenor Indonesia: Smartfren Telkomsel Indosat XL |
| Network mode | GSM/WCDMA/TD-LTE/LTE FDD |
| Data service | GPRS/EDGE/HSPA/WCDMA/TD-LTE/LTE FDD |
| Dual SIM | Dual SIM in Asia Pacific Notes: To be confirmed according to the official product requirement list. |
| Frequency band (SIM cards 1 and 2) | SIM card 1: 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/5/8 4G: FDD-LTE: Bands 1/3/5/8 TD-LTE: Bands 38/40/41 (2535–2655 MHz) SIM card 2 2G: GSM, 850/900/1800/1900 MHz 3G: UMTS (WCDMA) bands 1/5/8 4G: FDD-LTE: Bands 1/3/5/8 TD-LTE: Bands 38/40/41 (2535–2655 MHz) |
| 5G network | Not supported |
| 4G+ network | Not supported |
| Remarks for supported frequency bands | 2G: 850/900/1800/1900 3G: B1/5/8 4G: B1/3/5/8/38/40/41 |
| 5G uplink/downlink rate | / |
| 4G uplink/downlink rate | Uplink: 75 Mbps Downlink: 150 Mbps |
| Link boost | Not supported |
18.SIM card |
|
| SIM card type and size | Nano-SIM card/Nano-USIM card |
| Type and material of SIM card tray | 3-slot plastic tray for 2 SIM cards and 1 storage card |
19.Buttons and connectors |
|
| Audio jack | 3.5 mm |
| Data port | USB Type C |
| Transfer protocol (USB) | USB 2.0 |
| Pins (USB) | 16 |
| Navigation buttons | No physical navigation buttons. Supports on-screen virtual navigation buttons and navigation gestures. |
20.Positioning |
|
| Satellite positioning | Built-in GPS GPS, A-GPS, BeiDou, GLONASS, and Galileo positioning systems |
| Dual-frequency dual-antenna positioning | Not supported |
| Other | Wi-Fi positioning, network-based mobile positioning, and electronic compass |
| Map apps | Third-party map apps |
| Dual-frequency GPS | Not supported |
21.Fingerprint & face recognition |
|
| Fingerprint unlock time | 557 ms |
| Face unlock time | 854 ms |
| Fingerprint unlock | In-display fingerprint sensor |
| Fingerprint payment | Alipay and WeChat payment supported |
| Face recognition unlock | Supported |
| Face recognition payment | Not supported |
22.Sensors |
|
| Sensor type | Geomagnetic sensor, proximity sensor, optical sensor, accelerometer, gravity sensor, gyroscope, pedometer |
| Infrared blaster | Not supported |
23.Battery & charging |
|
| Battery capacity | 4880 mAh/18.88 Wh (Min), 5000 mAh/19.35 Wh (Typ) |
| Suitable temperature range | 15°C to 35°C |
| Adapter model/parameters | I/P: 100-240V, 50/60 Hz, 1.2A； O/P: 5 V DC 2A or 5-11 V DC 3A Max |
| Standard charger power | Max power: 33W (11V/3A) |
| Energy density | 704 Wh/L |
| Maximum audio playback time | 40 hours |
| Maximum call time | 34.14 hours |
| Maximum video playback time | 17.8 hours (Brightness: 135 cd/m2) |
| Maximum standby time | 741.25 hours |
| Maximum standby time (4G) | 475 hours |
| Maximum standby time (3G) | 290 hours |
| Maximum standby time (2G) | 333.75 hours |
| Maximum audio playback time (through speaker at medium volume) | 40 hours |
| Maximum video playback time (through speaker at medium volume) | 20 hours |
| Fast charging | SuperVOOC 2.0 、SuperVOOC、VOOC 2.0、VOOC3.0、VOOC4.0 |
| Flash Charge | Not supported |
| Wireless charging | Not supported |
| Charger model | VCB3GAIN/VCB3HAYH/VCB3HAUH/VCB3HAEH/VCB3JAAH/VCB3GAPH |
| Reverse charging | Supported |
| Breathing light during charging | None |
| Time required for a full charge | About 72 min |
| Battery model | BLP851 |
24.Other hardware |
|
| SAR | CE SAR (Asia Pacific): Head SAR: 0.72 W/kg Body SAR: 0.93 W/kg Indian SAR Head SAR: 0.92 W/kg Body SAR: 0.84 W/kg |
| Sound effects | Dirac |
| Hi-Fi | Not supported |
| Hi-Fi chip (if Hi-Fi is supported) | Not supported |
| Standalone or integrated audio decoder chip | Integrated audio decoder chip |
| Audio certification | None |
| Vibration motor | Flat motor |
| Waterproof IP rating | IPX4 rated ingress protection |
| Heat dissipation mechanism | Graphite tube + 3 graphite sheets |
| Top ports and holes (from left to right) | Front camera, receiver, and optical proximity sensor |
| Bottom ports and holes (from left to right) | Earphone jack, main microphone, Type-C port, and speaker |
| Button backlight | Not supported |
| Expansion card | Supported |
25.Speaker/Microphone |
|
| Number of speakers | One speaker (1217) at the bottom right with the screen facing upward |
| Number of microphones | 1 mic |
| Ultra-linear/Super-dynamic/Super-balanced speakers | Conventional magnetic circuit (1217.5) |
| Noise cancellation | Single-MIC noise cancellation |
26.Operating environment |
|
| Operating temperature | 0°C–35°C (32°F–95°F) |
| Storage temperature | -20°C–45°C (-4°F–113°F) |
| Relative humidity | A moisture of 5%–95% under a non-condensable state |
| Operating altitude | Up to 3,000 meters (10,000 feet) according to testing data |
27.Phone accessories |
|
| Package contents | Phone x1 Earphones x1 USB cable x 1 Charger x1 SIM ejector tool x1 Protective case x1 Quick start guide x 1 Warranty card x 1 |
| SIM ejector tool | Yes |
| Material of protective case | TPU |
| Style of protective case | Elastic and transparent |
| Screen protector | Yes |
| USB cable length and color | 1-meter white cable |
| TF card | No |
| Plastic film sealing | Yes |
28.Important tips |
|
| Important tips | / |
29.Earphones |
|
| Speaker size | Diameter: 14.2 mm |
| Rated power | 3 mW |
| Sensitivity | 98 ± 3 dB SPL at 1 KHz 1 mW by IEC711 + Unleak adapter |
| Impedance of earphones | 54 ohms |
| Model of earphones | MH156 |
| Earphone standards | US standards |
| Frequency range | 20 Hz–20 kHz |
| Push-to-talk on earphones | Supported |
| Wake voice assistant | Not supported |
| Volume control | Not supported |
| Switching songs | Supported |
| In-ear monitoring | Supported |
| Earphone jack | 3.5 mm |
30.Earphones (Indian standards for the Indian market) |
|
| Speaker size | India: 14.2 mm (Diameter) |
| Rated power | India: 3 mW |
| Sensitivity | India: 109 ± 3 dB |
| Impedance of earphones | India: 56 ohms |
| Model of earphones | India: MH157 (India standards) |
| Earphone standards | India: India standards |
| Frequency range | 20 Hz–20 kHz |
| Push-to-talk on earphones | Supported |
| Wake voice assistant | Not supported |
| Volume control | Not supported |
| Switching songs | Supported |
| In-ear monitoring | Supported |
31.Packaging specifications (for international versions) |
|
| Frequency bands | Version for Asia Pacific: India, Pakistan, Myanmar, Sri Lanka, Nepal, Bangladesh, and Algeria GSM: 850/900/1800/1900 MHz WCDMA: Bands 1/5/8 LTE FDD: Bands 1/3/5/8 LTE TDD: Bands 38/40/41 (2535-2635 MHz) Indonesia: GSM: 900/1800 MHz WCDMA: 900/2100 MHz LTE FDD: Bands 1/3/5/8 LTE TDD: Band 40 |
| Model name | CHP2219 |
| Table for power information | Refer to local power information table |
| Battery voltage and charging current | 3.87V/6A |
