OPPO F17（CPH2099）Parameter List
Views: 0 • Likes: 3
1.Basic information |
|
| Marketing name | OPPO F17 |
| Model | Model: CPH2099 |
| Launch date | 2020.09 |
2.Appearance |
|
| Size | IN: 5.98x7.29x0.745（cm） Other regions：159.8x72.9x7.45（mm） |
| Weight | About 163g |
| Color | Navy Blue Classic Silver Dynamic Orange |

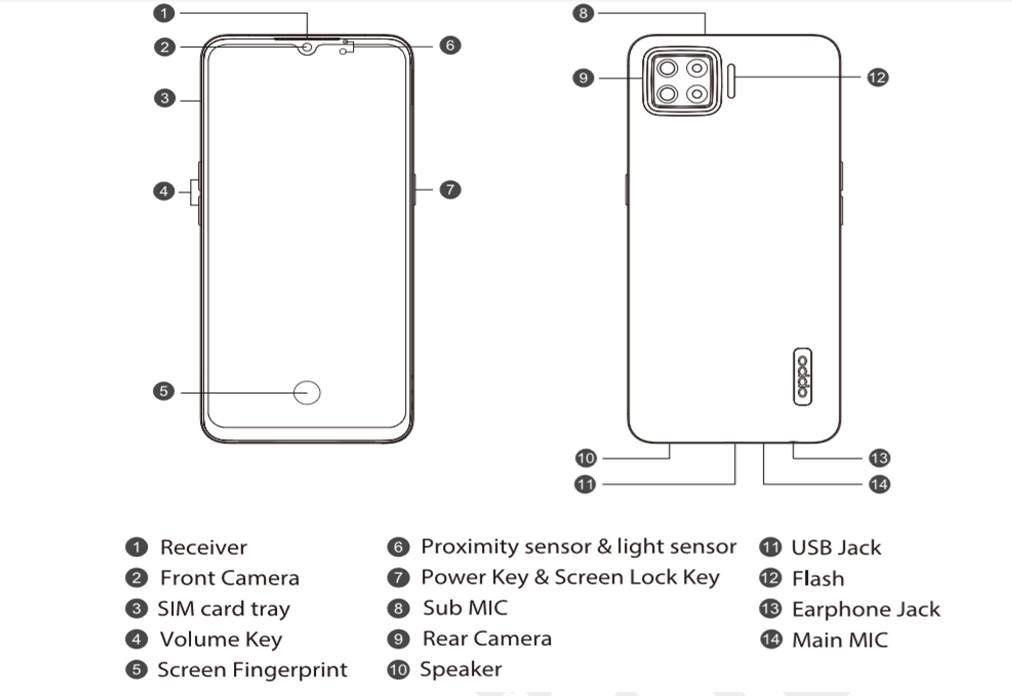

| Product Appearance | |
3.Material and process |
|
| Frame material | Plastic: PC+20%GF； Hardware: High Toughness Aluminum SY-2 |
| Back cover material | PC |
| Back cover process | Leather Texture, Spray, Two-color Laser Carving |
| Back cover is filmed | No |
| Back cover with oleophobic layer | Yes |
4.SoC |
|
| CPU frequency | 2Ghz(Max) |
| GPU model | Adreno™ 610 @950MHz |
| CPU Architecture | □ Kryo Gold: 4 high-performance cores 2.0 GHz □ Kryo Silver: 4 low-power cores 1.8 GHz |
| Memory frequency | 1804MHz |
| CPU model | SDM6115 |
| Processing platform | Snapdragon 662 |
| Memory specifications | 2x16bit, LPDDR4x |
| CPU process technology | 11nm |
| GPU process technology | 11nm |
| AI | Support |
| Core | 8 |
| Processors bits | 64 bit |
5.Display |
|
| Screen size | 6.44 inch |
| Upper frame | 2.32mm |
| Lower frame | 5.2mm |
| Left & Right frame | 1.67mm |
| Screen ratio | 90.7% |
| Color saturation | type 96.7% NTSC |
| Color | 16M |
| Screen ratio | 20:9 |
| Display panel material | Amoled |
| Screen brand | Samsung |
| Screen resolution | 2400*1080 |
| Color gamut | Type 96.7% NTSC |
| Screen pixel density | 408 PPI |
| Screen contrast | Typ100000:1 |
| Screen brightness | Typ: 430nit/HBM: 600nit |
| Screen cover material | GG3 |
| Refresh frequency | 60Hz |
| Touch screen bonding process | On- Cell |
| Touch points | 10 |
| Touch sampling rate | Normal: 135Hz； Game: 180Hz(Game for peace, Knives out) |
| Screen protector type | OCF |
| Oleophobic layer | Yes |
| Oleophobic layer on film | Yes |
| TÜV Rheinland eye comfort certification | No |
| Night mode | Support |
| Eye protection mode | Support |
| No stroboscopic eye protection | Support |
| HDR | Not support |
| Touch screen type | Capacity |
6.Storage |
|
| RAM & ROM | 6GB+128GB 8GB+128GB |
| RAM specification | LPDDR4X, 1804 MHz clock (2 × 16 bit) |
| ROM specification | UFS 2.1 gear 3 (Single lane) |
| Storage card | Support |
| Supported expansion card | Max to 256GB Micro SD |
| Program move to the memory card | Not support |
| OTG transmission | Support |
| OTG storage format | FAT32、exFAT、NTFS |
| Maximum support for OTG storage | 2TB |
| RAM channel | 2 |
7.Front camera |
|
| Equivalent focal length | 25.6mm |
| Effective focal length | 3.41mm |
| Camera specifications | 1600万(f／2.0), FOV 79.3°, 5P, FF |
| Pixel | 16M |
| Sensor specifications | Sony IMX471 16MP（1600万） 4:3 1/3.1", 1.0um |
| Focus method | FF |
| Shooting mode | Taking pictures, Video, Panorama, Portrait, Time-lapse Photography, Beauty Selfies, etc. |
| Front image size | 4624x3468 |
| Image file format | jpg |
| Video shooting | Front Camera: 1080P/720P@30fps 720P@30fps（Beauty is turned on by default） Front Camera: No Video Stabilization Front Camera: No Video Zoom Front Camera: No Slow motion |
| Video file format | MP4 |
| Optical zoom | Not support |
| Stabilizer | Not support |
| Camera structure | Water drop |
| Shooting mothod | Touch Screen Shooting/Volume Button Shooting/Gesture Shooting/Screen Virtual Button Shooting |
| Sensor type | CMOS |
| Protective glass material | GG3 |
8.Rear camera |
|
| Sensor specifications | 16MP Main Camera OV16A10，1/3.06" ，f/2.2，5P，AF 8MP Ultra Wide-angle Camera Hi846，1/4"，f/2.2，5P ，119.9° 2MP Light Filter Camera f/2.4，1/5"，f/2.4，3P 2MP Portrait Filter Camera f/2.4，1/5"，1.75μm，3P |
| Camera specifications | Main Camera：f/2.2；FOV 81.3°；5P；Equivalent 25.3mm，AF； Ultra Wide-angle Camera：f/2.2；FOV 119.9°；5P ，Equivalent 15.6mm; Light Filter Camera：f/2.4，FOV 88.8° ，3P，Focus, 22mm Portrait Filter Camera：f/2.4，FOV 88.8° ，3P，Focus, 22mm |
| Effective focal length | Main：3.37mm； Wide angle：1.65mm; 2M：1.77mm; |
| Optical zoom | Not support |
| EIS | Support |
| OIS | Not support |
| Focus method | PDAF+CDAF |
| Shooting mode | Taking pictures, Video, Night Scenes, Professional, Panorama, Portrait, Time-lapse Photography, Slow Motion, Hypertext, Google Lens |
| Image format | jpg |
| Video shooting | 1080p@30fps、720p@30fps Slow motion: 720p@120fps |
| Video format | MP4 |
| Flash light | LED |
| Shooting mothod | Touch Screen Shooting/Volume Button Shooting/Gesture Shooting/Screen Virtual Button Shooting |
| Intelligent scene recognition | Support |
| Sensor type | CMOS |
| Protective glass material | Rainbow glass |
| Camera position sequence (rear) | Upper Lest Main Camera 16MP + Lower Left Wide-angle 8MP + Upper Right Black/White 2MP + Lower Right Black/White 2MP |
| Zoom | Digital zoom 10X |
| Continuous shots | 20 |
| Image size | Normal： 4624x3468(4:3) 3472*3472(1:1) 4624x2080(Full screen) 4624x2600((16:9) |
| Video flash light | Support |
9.OS – Version info and apps |
|
| Android version | Android 10 |
| OS | ColorOS 7.2 |
| Built-in third-party applications | Google Kits（RSA3.0），Facebook FB Installer, FB Manager, FBNS，Netflix，WPS Office Amazon（France、Germany、UK、Ireland、Italy、Spain、UAE、Saudi Arabia、Egypt、Netherland、Sweden、Poland, Turkey, Switzerland, Portugal, Belgium, Czech Republic, Australia, New Zealand, Singapore, India） Amazon Prime Video（France, Germany, United Kingdom, Ireland, Italy, Spain, Singapore） Amazon Music Unlimited（France, Germany, United Kingdom, Ireland, Italy, Spain） Lazada（Indonesia, Vietnam, Philippines, Malaysia, Thailand, Singapore） TikTok(com.ss.android.ugc.trill)（Indonesia, Vietnam, Thailand） TikTok(com.zhiliaoapp.musically)（Germany, UK, France, Spain, Italy, Netherlands, Australia, Russia） Whatsapp（Indonesia, Malaysia, Russia, Turkey） Messenger（Philippines, Thailand, Vietnam） Baca Plus（Indonesia） Agoda (Indonesia, Malay, Thailand, Taiwan, Vietnam, Philippines) JT Express (Indonesia) VN Ngay Nay (Vietnam) Zalo (Vietnam) Zing MP3 (Vietnam) Bao Moi (Vietnam) Wetv (Thailand) Yandex App (Russia) Yandex Browser (Russia) 全民Party (Taiwan) 淘宝台湾 (Taiwan) Daraz (Pakistan, Bangladesh, Sri Lanka) |
| Uninstallable apps | Google Kits（RSA3.0），Facebook FB Installer, FB Manager, FBNS，Netflix，WPS Office Amazon（France、Germany、UK、Ireland、Italy、Spain、UAE、Saudi Arabia、Egypt、Netherland、Sweden、Poland, Turkey, Switzerland, Portugal, Belgium, Czech Republic, Australia, New Zealand, Singapore, India） Amazon Prime Video（France, Germany, United Kingdom, Ireland, Italy, Spain, Singapore） Amazon Music Unlimited（France, Germany, United Kingdom, Ireland, Italy, Spain） Lazada（Indonesia, Vietnam, Philippines, Malaysia, Thailand, Singapore） TikTok(com.ss.android.ugc.trill)（Indonesia, Vietnam, Thailand） TikTok(com.zhiliaoapp.musically)（Germany, UK, France, Spain, Italy, Netherlands, Australia, Russia） Whatsapp（Indonesia, Malaysia, Russia, Turkey） Messenger（Philippines, Thailand, Vietnam） Baca Plus（Indonesia） Agoda (Indonesia, Malay, Thailand, Taiwan, Vietnam, Philippines) JT Express (Indonesia) VN Ngay Nay (Vietnam) Zalo (Vietnam) Zing MP3 (Vietnam) Bao Moi (Vietnam) Wetv (Thailand) Yandex App (Russia) Yandex Browser (Russia) 全民Party (Taiwan) 淘宝台湾 (Taiwan) Daraz (Pakistan, Bangladesh, Sri Lanka) |
| Uninstallable apps | Calendar, Clock, Photo Album, File Management, Google Kits, Theme Store, Music, Game etc. |
10.OS – Calls |
|
| Single channel, dual channel | Single |
| VoLTE | Support |
| Voice call solution | VoLTE/CSFB |
| Call history limit | 3000 |
| Video call | Support |
| Earphone answering | Support |
| Call recording | Support |
| Recording file format | MP3 |
| Recording save location | File Management-Storage-Music-Recordings-Call Recordings |
| Automatic call recording | Support |
| Fast dial | Support |
| Caller ID | Support |
| Call background | Support |
11.OS – Contacts |
|
| SIM card contact import and export | Support |
| Contacts Capacity | Decided by storage of phone |
| Blacklist limit of contact | Decided by storage of phone |
| Contact list format | vcard csv |
| Contact grouping | Support |
| Group customization | Support |
12.OS – Messages |
|
| SMS group sending limit | 200 |
| SMS blacklist limit | Decided by storage of phone |
| SMS capacity | Decided by storage of phone |
| SMS words limit | 1530 words (less than 1530 if it's chinese) Become MMS autometically when over 1530 |
| Single MMS capacity | 300K |
| Timing Message send | Not support |
| Import/Export Messages | Support |
| Storage limit of MMS | Decided by storage of phone |
13.OS function |
|
| Built-in browser | Chrome |
| Original pictures | No original picture |
| Original music | NO |
| Firewall | Support |
| Data backup | Support |
| Files Zip/Unzip | Support |
| File encryption | Support |
| Apps lock | Support |
| Fingerprint reset password | Not support |
| Application encryption method | Digital password, pattern password, fingerprint password, face password |
| MHL | Not support |
| Split Screen | Support |
| Picture in picture | Support |
| Window-view mode | Support |
| Google Lens | Support |
| Support | |
| Ebook | Support |
| Office tools | TXT, Quick Office, Adobe PDF |
| Weather widget | Support |
| Clock widget | Support |
| Music widget | Support |
| Three part software widget | Support |
| FM | Support(except EU) |
| Gesture operation | Support |
| Banner call | Support |
| Power button to end the call | Support |
| Kids Space | Support |
| TXT Input | Support |
| Support HD | Support |
| Record Format | mp3 |
| Ringtone Format | MP3/AMR/APE/OGG/FLAC/WAV/MIDI/WMA |
| World Time | Support |
| HDMI | Not support |
| Flashlight | Support |
| Lock screen clock | Support |
| Hall Sensor/Window-view mode | Not support |
| Screen recording | Support |
| E-compass | Support |
| Clone App | Support |
| OPPO Share | Support |
| OSIE | Not support |
| Background freeze (Pure background) | Support |
| Oshare | Yes (No Recognition for Indian Phone Numbers' ） |
| System file format | ext4 |
| Pedometer | Support |
| Dual Wi-Fi | Not support |
| Video play | AVI/3GP/MP4/WMV/MKV/MOV/ASF/FLV... |
| Audio play | MP3/AAC/APE/AMR/WAV/MID/OGG/FLAC/WMA... |
| Support file format | txt，pdf，word，excel，ppt |
| Fingerprint unlock time | Screen off：≤600 Screen on：≤500 |
| Face unlock time | Screen off：≤620 Screen on：≤700 |
| Fingerprint | Optical |
| Fingerprint payment (payment App) | Support |
| Face recognition | Support |
| Facial payment | Not support |
| Sensor | Geomagnetic induction, light induction, proximity sensor, acceleration sensor, Gravity Sensor gyroscope, support step function |
| Infrared remote control | No |
| Vibration motor | Rotor motor |
| Water proof | Life water resistance |
| Heat dissipation | Graphite Sheet + Heat Dissipation Gel + Copper Foil |
| Number of speakers | One |
| MIC | 2mic |
| Noise reduction | 2mic noise reduction |
| Working temperature | 0°C-35°C (32°F-95°F) |
| Storage temperature | ‑20°C -45°C (‑4°F-113°F) |
| Relative humidity | 5%-95% |
| Working height | 3000 m (10000 inch) |
| Other features | / |
| Voice changer in game | Not support |
| Game boost | Not support |
| Game space | Support |
14.Wireless connection |
|
| Bank card | Not support |
| Bus card | Not support |
| E-ID | Not support |
| Access Card | Not support |
| NFC | Only UA/KZ/PL/TR support NFC： HCE、UICC、NFC-SIM |
| WLAN | WLAN 2.4G， WLAN 5.1G ， WLAN 5.8G , WLAN Display |
| WLAN protocol | 802.11a/b/g/n/ac |
| Wi-Fi speed | 1.2Gbps |
| WLAN Display | Support |
| Hotspot | Support |
| Limit number of connction of hotspot | 10 |
| Bluetooth version | 5 |
| Bluetooth audio specifications | SBC、AAC 、APTX |
| Bluetooth protocol | HFP HSP A2DP AVRCP HID PAN OPP MAP PBAP GATT |
| Wi-Fi antenna | 1x1 SISO；2.4G/5G |
| WLAN frequency | 2.4GHz, 5.1GHz, 5.8GHz |
| Bluetooth share network | Support |
15.Mobile network |
|
| LTE antenna | 1 main&1 sub antenna |
| VoLTE | Support |
| Network mode | GSM、WCDMA、TD-LTE、LTE-FDD |
| 5G | Not support |
| 4G+ | not support |
| Network frequency | IN/MM/PK/LK/BD/NP: SIM1 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/8 TD-LTE: Bands 38/40/41 B41：2535-2655MHz SIM2 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/8 TD-LTE: Bands 38/40/41 B41：2535-2655MHz VN/TH/MY: SIM1 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8 TD-LTE: Bands 38/40/41 B41：2535-2655MHz SIM2 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8 TD-LTE: Bands 38/40/41 B41：2535-2655MHz EG/MA/KE/NG/TN/JD/AE/SA: SIM1 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8/20/28 TD-LTE: Bands 38/40/41 B41：2535-2655MHz SIM2 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8/20/28 TD-LTE: Bands 38/40/41 B41：2535-2655MHz JP: GSM: 850/900/1800/1900MHz WCDMA: Bands 1/2/4/5/6/8/19 FDD-LTE: Bands B1/2/3/4/5/7/8/18/19/26/28 TD-LTE: Bands 38/41 B41：2535-2655MHz KZ/UA/PL/TR: SIM1 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8/20/28 TD-LTE: Bands 38/40/41 B41：2535-2655MHz SIM2 GSM: 850/900/1800/1900MHz WCDMA: Bands 1/5/8 FDD-LTE: Bands 1/3/5/7/8/20/28 TD-LTE: Bands 38/40/41 B41：2535-2655MHz |
| 4G data rate | 日本 Uplink:150Mbps; Downlink:400Mbps. 其他区域 Uplink:75Mbps; Downlink:150Mbps. |
| Link boost | Only support in India |
16.SIM card |
|
| SIM card type | Nano-SIM/Nano-USIM |
| SIM tray material | 3 Cards tray |
17.Buttons and connectors |
|
| Earphone jack | 3.5mm |
| USB jack | USB Type-C |
| Transmission protocol (USB) | USB 2.0 |
| Pin number (USB) | 16 |
| Navigation keys | Support screen virtual buttons and gesture navigation operations |
18.Positioning |
|
| GPS | GPS，A-GPS，Beidou，Glonass，Galileo |
| Dual-frequency GPS | Single |
| Map | Support APP maps |
19.Battery & charging |
|
| Battery capacity | 3920mAh(Min)； 4015mAh(Typ)； |
| Battery mode | BLP791 Lithium Ion Battery |
| Flash charging suitable temperature | 15℃—35℃ |
| Power adapter parameters | Input：100-240V ~ 50/60Hz， 1.2A； Output： 5VDC 2A or 5VDC 6A Max。 |
| Standard charger power | Max 30W(5V/6A) |
| Energy density | 681Wh/L |
| Fast charging | VOOC 4.0 |
| Flash charging | support |
| Wireless charging | Not support |
| Reverse charging | Not support |
| Full charge duration | 1h |
| Theoretical audio playing duration (earphone) | 30h |
| Theoretical calling duration | 15h |
| Video playing duration(theoretical ) | 15h |
| Theoretical standby time | 350h |
| Theoretical standby time(4G) | 350h |
| Theoretical standby time(3G) | 350h |
| Theoretical standby time(3G) | 350h |
| Theoretical listening time (mid-volume public playback) | 30h |
| Theoretical video playing time (mid-volume public playback) | 15h |
20.Other hardware |
|
| SAR | MM/PK/LK/BD/NP: 0.78W/kg（head） 0.93W/kg（body） IN: 1.16W/kg（head） 0.81W/kg（body） VN/TH/MY 0.84W/kg（head） 0.96W/kg（body） EG/MA/KE/NG/TN/JD/AE/SA 0.82W/kg（head） 0.91W/kg（body） KE/UA/PL/TR 0.82W/kg（head） 0.91W/kg（body） |
| Sound effect | Dirac |
| Hi-Fi | No |
| Audio decoding chip | Integrated |
| Super linear speaker/Super dynamic speaker | Normal speaker |
| Audio certification standard | No |
21.Phone accessories |
|
| Packing list | 1 Phone 1 Charger 1 Earphone 1 USB data cable 1 SIM Ejector Tool 1 Safety Guide 1 Quick Guide 1 Protective Case |
| Protective cover material | TPU |
| Protective shell soft/hard/transparent | Soft Shell, Transparent |
| Protective Film(Screen) | Yes |
| Charging cable length, color | 1m white |
| TF card | No |
| Plastic seal | Yes |
22.Earphones (Indian standards for the Indian market) |
|
| Earphone model | MH157 |
| Earphone standard | 3.5mm |
| Speaker size of earphone | 14.2mm |
| Rated power of earphone | 3mW |
| Frequency range of earphone | 20Hz-20kHz |
| Earphone sensitivity | 109 (+-)3dB |
| Earphone resistance | 56Ω |
| Wire control of earphone | Support |
| Wake-up voice assistant via earphone | It does not support waking up voice assistant through earphone's microphone, but supports long pressing of the button on the microphone shell to call up voice assistant |
| Volume control via earphone | No |
| Change songs via earphone | Support: double-click button on the microphone shell to switch to next song |
| Earphone monitor | Support |
23.Earphones |
|
| Earphone model | MH156 |
| Earphone standard | 3.5mm |
| Speaker size of earphone | 14.2mm |
| Rated power of earphone | 3mW |
| Frequency range of earphone | 20Hz-20kHz |
| Earphone sensitivity | 98 (+-)3dB |
| Earphone resistance | 54Ω |
| Wire control of earphone | Support |
| Wake-up voice assistant via earphone | It does not support waking up voice assistant through earphone's microphone, but supports long pressing of the button on the microphone shell to call up voice assistant |
| Volume control via earphone | No |
| Change songs via earphone | Support: double-click button on the microphone shell to switch to next song |
| Earphone monitor | Support |
